15KP Series 15000W Axial Leaded TVS Diode

  • Package name: P600
  • P600 glass passivated chip junction
  • Polarity: Color band denoted positive end (cathode) except Bidirectional.
  • Typical failure mode is short from over-specified voltage or current
  • Fast response time: typically less than 1.0ps from 0 Volts to BV min.
  • High Temperature soldering: 260°C/10 seconds at terminals.
  • Solder dip 275 °C max. 10 s, per JESD 22-B106
Availability:
Quantity:
Inquire Add to Basket

15KP Series 15000W TVS Diode is a type of voltage suppressing device that limits over voltages to a safe range to prevent circuit from damaging and has a faster response time than other protection components. This allows TVS to be used in suppressing fast damaging transient voltage, such as lighting, switching, ESD, etc.


Application

  • I/O interface

  • Vcc bus


Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.



Hot Tags: 15kp series 15000w axial leaded TVS diode, China, manufacturers, factory, price, Transient Voltage Suppressor, Axial Leaded TVS Diode, SM8S Q TVS Diode, TVS Diode SMD, Surface Mount Diode, 1500W Transient Voltage Suppressor

Peak pulse power dissipation with a 10/1000 μs waveform 15000 Watts
Peak pulse current with a 10/1000 μs waveform See next table
Power dissipation on infinite heat sink at TL= 75 °C 8 Watts

Peak forward surge current 8.3 ms single half sine-wave

 400 Amps
Operating junction and storage temperature range -55 to + 175 ℃


Note:

  1. Non-repetitive current pulse, per fig. 6 and derated above TA = 25 °C per fig.

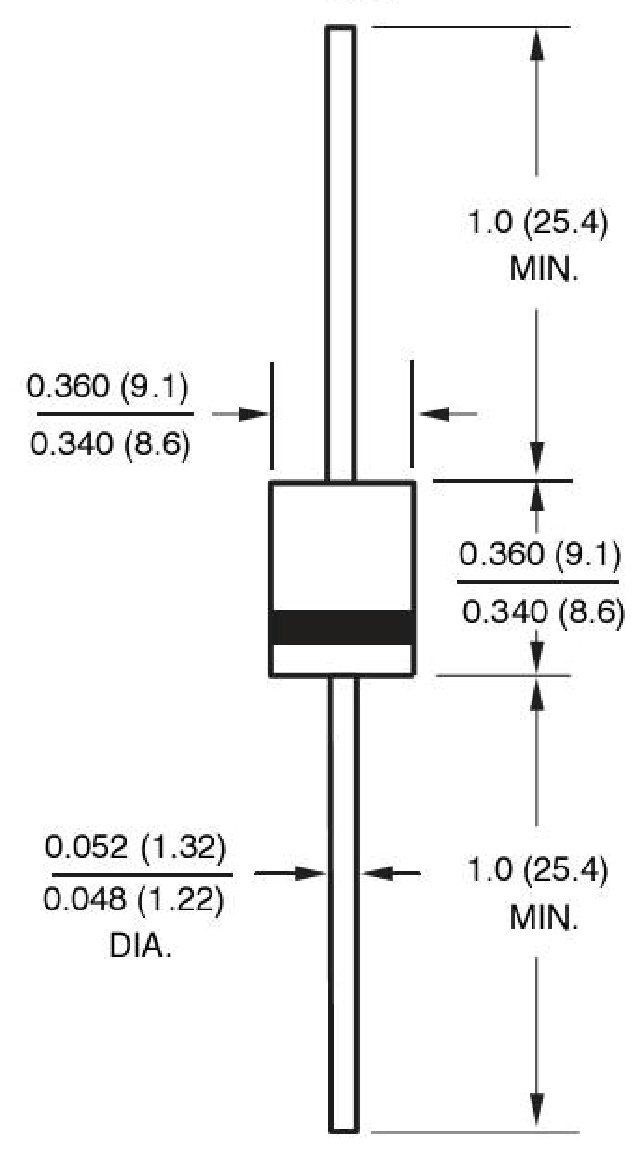

P600

Part Number (Bi) Part Number (Uni) Reverse Stand off Voltage VR
(Volts)		 Breakdown
Voltage VBR (Volts)@IT		 Test Current IT(mA) Maximum Reverse Leakage IR @ VR(μA) Maximum Peak Pulse Current I pp (A) Maximum Clamping Voltage VC @ I pp(V)
Min .V Max .V
15KP17CA 15KP17A 17.0 18.88 20.80 50 5000 515.4 29.3
15KP18CA 15KP18A 18.0 20.00 22.20 50 5000 488.7 30.9
15KP20CA 15KP20A 20.0 22.20 24.60 20 1500 440.2 34.3
15KP22CA 15KP22A 22.0 24.40 27.00 10 500 407.0 37.1
15KP24CA 15KP24A 24.0 26.60 29.40 5 150 371.0 40.7
15KP26CA 15KP26A 26.0 28.80 31.80 5 50 343.2 44.0
15KP28CA 15KP28A 28.0 31.10 34.40 5 25 317.9 47.5
15KP30CA 15KP30A 30.0 33.30 36.90 5 15 297.8 50.7
15KP33CA 15KP33A 33.0 36.60 40.50 5 2 276.1 54.7
15KP36CA 15KP36A 36.0 39.90 44.10 5 2 252.5 59.8
15KP40CA 15KP40A 40.0 44.40 49.10 5 2 229.5 65.8
15KP43CA 15KP43A 43.0 47.80 52.80 5 2 216.3 69.8
15KP45CA 15KP45A 45.0 50.10 55.50 5 2 207.4 72.8
15KP48CA 15KP48A 48.0 53.40 59.10 5 2 194.3 77.7
15KP51CA 15KP51A 51.0 56.70 62.70 5 2 182.1 82.9
15KP54 CA 15KP54 A 54.0 60.00 66.30 5 2 172.2 87.7
15KP58 CA 15KP58 A 58.0 64.40 71.20 5 2 161.0 93.8
15KP60CA 15KP60A 60.0 66.60 73.50 5 2 155.0 97.4
15KP64CA 15KP64A 64.0 71.10 78.60 5 2 144.9 104.2
15KP70CA 15KP70A 70.0 77.80 86.00 5 2 132.9 113.6
15KP75CA 15KP75A 75.0 83.30 92.10 5 2 123.8 122.0
15KP78CA 15KP78A 78.0 86.70 95.70 5 2 119.7 126.1
15KP85CA 15KP85A 85.0 94.40 104.0 5 2 109.7 137.6
15KP90CA 15KP90A 90.0 99.90 110.4 5 2 103.7 145.6
15KP100CA 15KP100A 100.0 111.0 123.0 5 2 93.6 161.3
15KP110CA 15KP110A 110.0 122.0 135.0 5 2 84.5 178.6
15KP120CA 15KP120A 120.0 133.2 147.3 5 2 78.5 192.3
15KP130CA 15KP130A 130.0 144.0 159.0 5 2 72.5 208.3
15KP150CA 15KP150A 150.0 167.0 185.0 5 2 62.4 241.9
15KP160CA 15KP160A 160.0 178.0 197.0 5 2 58.4 258.6
15KP170CA 15KP170A 170.0 189.0 209.0 5 2 55.4 272.7
15KP180CA 15KP180A 180.0 200.1 221.0 5 2 52.3 288.5
15KP200CA 15KP200A 200.0 222.0 247.0 5 2 47.3 319.1
15KP220CA 15KP220A 220.0 244.0 272.0 5 2 35.2 352.5
15KP240CA 15KP240A 240.0 267.4 293.9 5 2 39.3 384.6
15KP260CA 15KP260A 260.0 289.6 318.2 5 2 36.2 416.7
15KP280CA 15KP280A 280.0 312.1 342.5 5 2 33.2 454.5
