SMAJ-H Series Transient Voltage Suppressor Diode

  • Package name: DO-214AC/SMA
  • Epoxy: UL 94V-0 rate flame retardant
  • Lead: Solderable per MIL-STD-750, method2026
  • Polarity: Color band denotes cathode end except Bipolar
Availability:
Quantity:
Inquire Add to Basket

TVS SMAJ-H series features fast response time, high breakdown voltage, small package, low reverse leakage current and high reliability. It is suitable for various electronic equipment and circuits with strict requirements for electrostatic discharge and overvoltage protection.


Feature

  • Certification: RoHS

  • Packaging: in reel

  • Glass passivated chip

  • 400W peak pulse power capability with a 10/1000us waveform,repetitive rate(duty cycle):0.01%

  • Low leakage

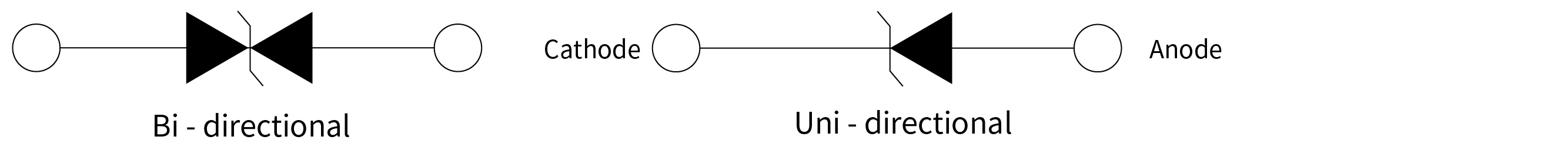

  • Uni and Bidirectional unit

  • Excellent clanping capability

  • Very fast response time


Application

  • I/O interface

  • AC/DC power supply

  • Low frequency signal transmission line (RS232, RS485, etc.)

Peak pulse power dissipation with a 10/1000 μs waveform 400 Watts
Peak pulse current with a 10/1000 μs waveform See next table
Power dissipation on infinite heat sink at TL= 75 °C 1 Watts

Peak forward surge current 8.3 ms single half sine-wave

 40 Amps
Maximum instantaneous forward voltage at 25 A for unidirectional only (3) 3.5/5.0 V
Operating junction and storage temperature range -55 to + 150 ℃


Note：

  1.  Non-repetitive current pulse per Fig.5 and derated above TA= 25 °C per Fig.1

  2. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum

  3. VF<3.5V for devices of VBR<200V and VF<5.0V for devices of VBR>201V

SMAJ-H

Part Number (Bi) Part Number (Uni) MARKING Reverse
Stand off
Voltage VR(Volts)		 Breakdown Voltage VBR(Volts)@IT Test Current IT(mA) Maximum
Reverse
Leakage IR
@ VR(μA)		 Maximum Peak
Pulse Current
I pp (A)		 Maximum Clamping
Voltage VC
@ I pp(V)
BI UNI Min .V Max .V
SMAJ5.0CA-H SMAJ5.0A-H WEH AEH 5.0 6.40 7.00 10 500 43.5 9.2
SMAJ6.0CA-H SMAJ6.0A-H WGH AGH 6.0 6.67 7.37 10 500 38.8 10.3
SMAJ 6.5CA-H SMAJ 6.5A-H WKH AKH 6.5 7.22 7.90 10 300 35.7 11.2
SMAJ7.0CA-H SMAJ7.0 A-H WMH AMH 7.0 7.78 8.60 10 200 33.3 12.0
SMAJ 7.5CA-H SMAJ 7.5A-H WPH APH 7.5 8.33 9.21 1 100 31.0 12.9
SMAJ 8.0CA-H SMAJ 8.0A-H WRH ARH 8.0 8.89 9.83 1 50 29.4 13.6
SMAJ8.5CA-H SMAJ8.5 A-H WTH ATH 8.5 9.44 10.40 1 20 27.8 14.4
SMAJ9.0CA-H SMAJ9.0 A-H WVH AVH 9.0 10.00 11.10 1 10 26.0 15.4
SMAJ10CA-H SMAJ10 A-H WXH AXH 10.0 11.10 12.30 1 5 23.5 17.0
SMAJ11CA-H SMAJ11 A-H WZH AZH 11.0 12.20 13.50 1 1 22.0 18.2
SMAJ12CA-H SMAJ12 A-H XEH BEH 12.0 13.30 14.70 1 1 20.1 19.9
SMAJ13CA-H SMAJ13A-H XGH BGH 13.0 14.40 15.90 1 1 18.6 21.5
SMAJ14CA-H SMAJ14A-H XKH BKH 14.0 15.60 17.20 1 1 17.2 23.2
SMAJ15CA-H SMAJ15A-H XMH BMH 15.0 16.70 18.50 1 1 16.4 24.4
SMAJ16CA-H SMAJ16A-H XPH BPH 16.0 17.80 19.70 1 1 15.4 26.0
SMAJ17CA-H SMAJ17A-H XRH BRH 17.0 18.90 20.90 1 1 14.5 27.6
SMAJ18CA-H SMAJ18A-H XTH BTH 18.0 20.00 22.10 1 1 13.7 29.2
SMAJ20CA-H SMAJ20A-H XVH BVH 20.0 22.20 24.50 1 1 12.3 32.4
SMAJ22CA-H SMAJ22A-H XXH BXH 22.0 24.40 26.90 1 1 11.3 35.5
SMAJ24CA-H SMAJ24A-H XZH BZH 24.0 26.70 29.50 1 1 10.3 38.9
SMAJ26CA-H SMAJ26A-H YEH CEH 26.0 28.90 31.90 1 1 9.5 42.1
SMAJ28CA-H SMAJ28A-H YGH CGH 28.0 31.10 34.40 1 1 8.8 45.4
SMAJ30CA-H SMAJ30A-H YKH CKH 30.0 33.30 36.80 1 1 8.3 48.4
SMAJ33CA-H SMAJ33A-H YMH CMH 33.0 36.70 40.60 1 1 7.5 53.3
SMAJ36CA-H SMAJ36A-H YPH CPH 36.0 40.00 44.20 1 1 6.9 58.1
SMAJ40CA-H SMAJ40A-H YRH CRH 40.0 44.40 49.10 1 1 6.2 64.5
SMAJ43CA-H SMAJ43A-H YTH CTH 43.0 47.80 52.80 1 1 5.8 69.4
SMAJ45CA-H SMAJ45A-H YVH CVH 45.0 50.00 55.30 1 1 5.5 72.7
SMAJ48CA-H SMAJ48A-H YXH CXH 48.0 53.30 58.90 1 1 5.2 77.4
SMAJ51CA-H SMAJ51A-H YZH CZH 51.0 56.70 62.70 1 1 4.9 82.4
SMAJ54CA-H SMAJ54A-H ZEH REH 54.0 60.00 66.30 1 1 4.6 87.1
SMAJ58CA-H SMAJ58A-H ZGH RGH 58.0 64.40 71.20 1 1 4.3 93.6
SMAJ60CA-H SMAJ60A-H ZKH RKH 60.0 66.70 73.70 1 1 4.1 96.8
SMAJ64CA-H SMAJ64A-H ZMH RMH 64.0 71.10 78.60 1 1 3.9 103.0
SMAJ70CA-H SMAJ70A-H ZPH RPH 70.0 77.80 86.00 1 1 3.5 113.0
SMAJ75CA-H SMAJ75A-H ZRH RRH 75.0 83.30 92.10 1 1 3.3 121.0
SMAJ78CA-H SMAJ78A-H ZTH RTH 78.0 86.70 95.80 1 1 3.2 126.0
SMAJ85CA-H SMAJ85A-H ZVH RVH 85.0 94.4 104.0 1 1 2.9 137.0
