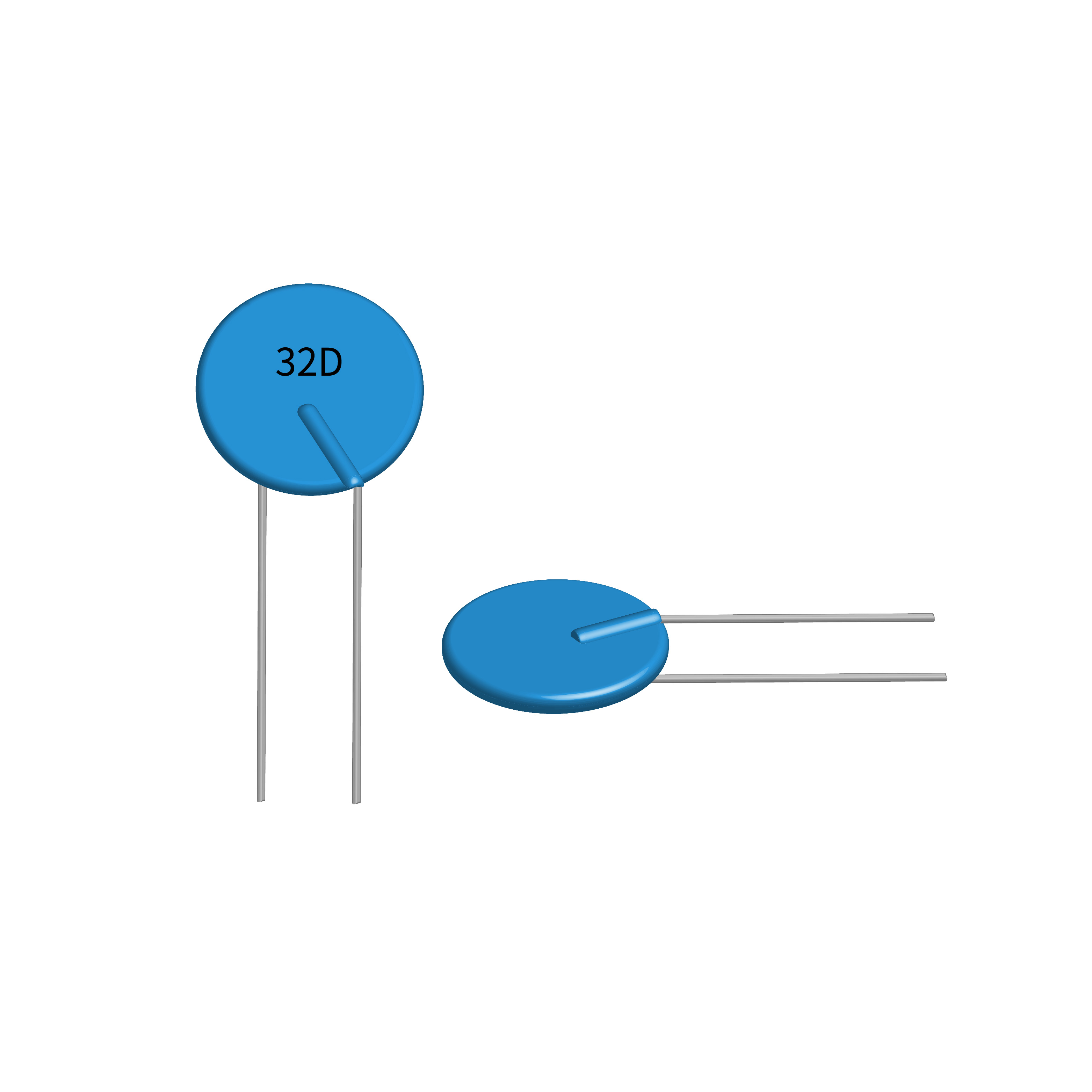

32D Series Metal Oxide Varistor

The body of varistor is a matrix structure composed of zinc oxide particles. The grain boundaries between particles are similar to the electrical characteristics of bidirectional PN junctions. When the voltage is low, these grain boundaries are in the high impedance state, and when the voltage is high, they will be in the breakdown state, which is a kind of non-linear device.
Availability:
Quantity:

Application

  • Communication base station power supply

  • Railway signal power supply

  • Low voltage distribution equipment, control equipment, etc. below 1000V

  • Building distribution

  • Electric welder


※ Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.


Hot Tags: 32d series metal oxide varistor, China, manufacturers, factory, price, Metal Oxide Varistor MOV, MOV Varistor, ZOV Varistor, Varistor 10D471K, Metal Oxide Varistors, 7D MOV Varistor

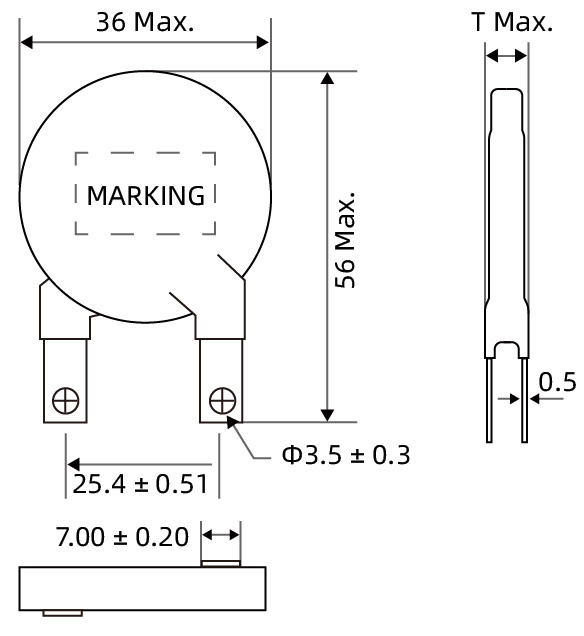

Product shape

Series

Varistor voltage

T max


32D

201-271

7.5

301-621

9.5

681-911

11.2

102-122

12.8

142-182

16


型号规格

Part NO

压敏电压

Varistor Voltage

最大允许使用电压

Maximum allowable voltage

最大限制电压Maximum Limited Voltage

通流容量Withstanding Surge current(8/20μs)times

静态功率

Rated Wattage

能量耐量Energy(2ms)

静态电容量(参考值)Typical Capacitance

1mA

AC

DC

Ipp200A

I max

In

(W)

J

1KHz

(V)

(V)

(V)

(KA)

(PF)

32D201K

200

185-225

130

170

340

25

15

1.2

210

4.2K

32D221K

220

198-242

140

180

360

25

15

1.2

220

3.8k

32D241K

240

216-264

150

200

395

25

15

1.2

240

3.5K

32D271K

270

243-297

175

225

455

25

15

1.2

255

3.2K

32D301K

300

270-330

190

250

500

25

15

1.2

275

2.9K

32D331K

330

297-363

210

275

550

25

15

1.2

300

2.7K

32D361K

360

324-396

230

300

595

25

15

1.2

325

2.5K

32D391K

390

351-429

250

320

650

25

15

1.2

350

2.3K

32D431K

430

387-473

275

350

710

25

15

1.2

400

2.1K

32D471K

470

423-517

300

385

775

25

15

1.2

405

1.8K

32D511K

510

459-561

320

415

845

25

15

1.2

405

1.7K

32D561K

560

504-616

350

460

925

25

15

1.2

410

1.6K

32D621K

620

558-682

385

505

1025

25

15

1.2

415

1.3K

32D681K

680

612-748

420

560

1120

25

15

1.2

450

1.2K

32D821K

820

738-902

510

670

1355

25

15

1.2

545

0.96K

32D911K

910

819-1001

550

745

1500

25

15

1.2

600

0.89K

32D102K

1.0K

900-1100

625

825

1650

25

15

1.2

620

0.83K

32D122K

1.2K

1080-1320

750

980

1980

25

15

1.2

630

0.76K

32D152K

1.5K

1350-1650

900

1220

2475

25

15

1.2

780

0.56K

32D182K

1.8K

1620-1980

1000

1465

2970

25

15

1.2

850

0.52K
