YAZ1P5D Series Zener Diode

  • Package name: SMA
  • Standard voltage tolerance is 10 %, SuffixJ ± 5 %
  • Terminals: Solderable per MIL-STD-750, Method 2026
  • Approx. Weight: 0.055g / 0.002oz
Availability:
Quantity:

This zener diode is a versatile component with a maximum power dissipation of 1.5W. It offers a wide reverse voltage range from 3.3V to 68V, making it suitable for various applications. The small plastic package allows for easy surface-mounted design, enhancing its usability in modern electronic circuits. With its efficient power dissipation capabilities and broad voltage range, this zener diode is a reliable choice for engineers looking to regulate voltage levels in their designs. Its compact size and versatile specifications make it a valuable addition to any electronic project requiring precise voltage control.

Parameter

Symbol

Value

Unit

Power Dissipation

Ptot

1.5

W

Forward Voltage at IF = 10 mA

VF

1.5

V

Operating and Storage Temperature Range

Tj, Tstg

-55~+150

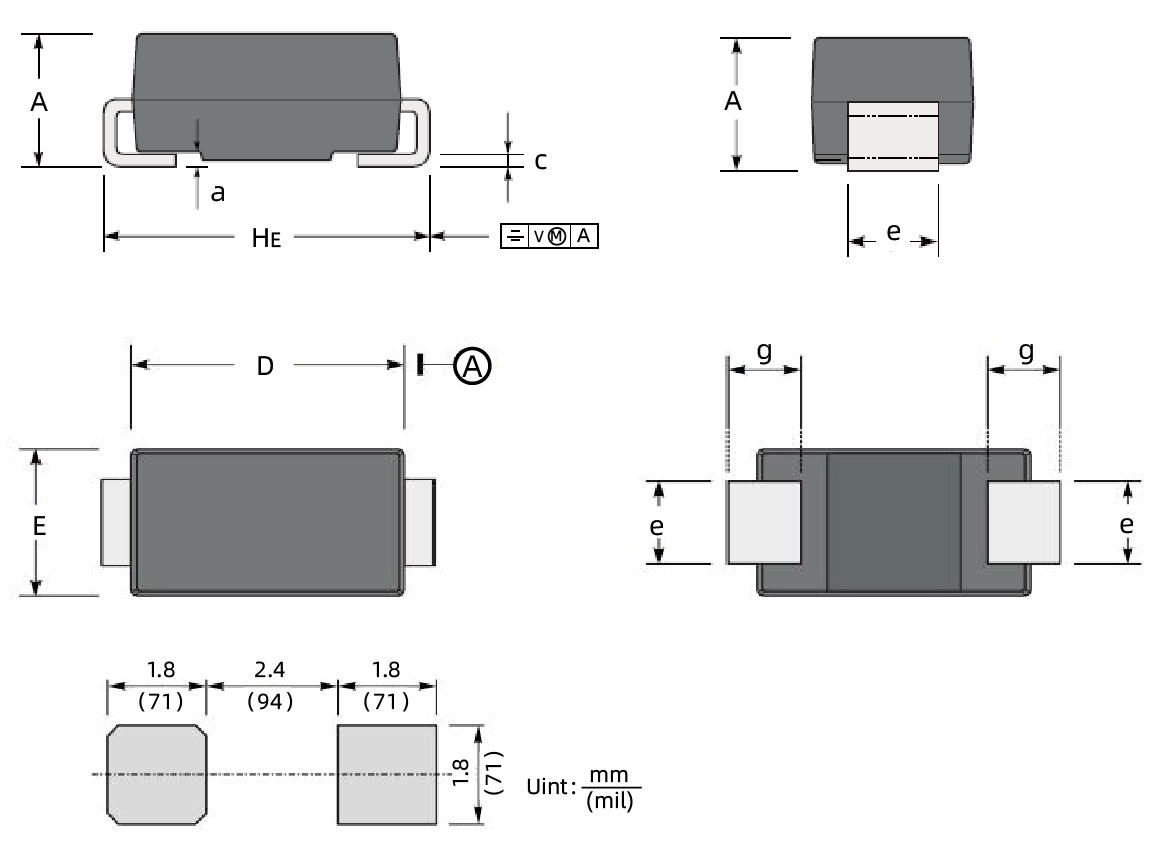

SMA-1

SMA-2

SMA-3

SMA-4


UNIT


A

D

E

HE

c

e

g

a



mm

max

2.2

4.5

2.7

5.2

0.31

1.6

1.5



0.3

min

1.9

4.0

2.3

4.7

0.15

1.3

0.9



mil

max

87

181

106

205

12

63

59



12

min

75

157

91

185

6

51

35


Device* (Note 3)

Zener Voltage (Note 4)

Zener Impedance

Leakage Current



IZM


VZ (Volts)

@ IZT

ZZT @ IZT

ZZK @ IZK

IR @ VR



Min

Nom

Max

mA

g

g

mA

µA

Volts

mA(dc)

YAZ1P5D3V3J

3.13

3.3

3.47

113.6

10

500

1.0

50

1.0

455

YAZ1P5D3V6J

3.42

3.6

3.78

104.2

9.0

500

1.0

35.5

1.0

417

YAZ1P5D3V9J

3.70

3.9

4.10

96.1

7.5

500

1.0

12.5

1.0

385

YAZ1P5D4V3J

4.08

4.3

4.52

87.2

6.0

500

1.0

2.5

1.0

349

YAZ1P5D4V7J

4.46

4.7

4.94

79.8

5.0

500

1.0

2.5

1.5

319

YAZ1P5D5V1J

4.84

5.1

5.36

73.5

4.0

350

1.0

2.5

2.0

294

YAZ1P5D5V6J

5.32

5.6

5.88

66.9

2.0

250

1.0

2.5

3.0

268

YAZ1P5D6V2J

5.89

6.2

6.51

60.5

2.0

200

1.0

2.5

4.0

242

YAZ1P5D6V8J

6.46

6.8

7.14

55.1

2.5

200

1.0

2.5

5.2

221

YAZ1P5D7V5J

7.12

7.5

7.88

50

3.0

400

0.5

2.5

6.0

200

YAZ1P5D8V2J

7.79

8.2

8.61

45.7

3.5

400

0.5

2.5

6.5

183

YAZ1P5D9V1J

8.64

9.1

9.56

41.2

4.0

500

0.5

2.5

7.0

165

YAZ1P5D10J

9.5

10

10.5

37.5

4.5

500

0.25

2.5

8.0

150

YAZ1P5D11J

10.45

11

11.55

34.1

5.5

550

0.25

0.5

8.4

136

YAZ1P5D12J

11.4

12

12.6

31.2

6.5

550

0.25

0.5

9.1

125

YAZ1P5D13J

12.35

13

13.65

28.8

7.0

550

0.25

0.5

9.9

115

YAZ1P5D15J

14.25

15

15.75

25

9.0

600

0.25

0.5

11.4

100

YAZ1P5D16J

15.2

16

16.8

23.4

10

600

0.25

0.5

12.2

94

YAZ1P5D18J

17.1

18

18.9

20.8

12

650

0.25

0.5

13.7

83

YAZ1P5D20J

19

20

21

18.7

14

650

0.25

0.5

15.2

75

YAZ1P5D22J

20.9

22

23.1

17

17.5

650

0.25

0.5

16.7

68

YAZ1P5D24J

22.8

24

25.2

15.6

19

700

0.25

0.5

18.2

63

YAZ1P5D27J

25.65

27

28.35

13.9

23

700

0.25

0.5

20.6

56

YAZ1P5D30J

28.5

30

31.5

12.5

26

750

0.25

0.5

22.8

50

YAZ1P5D33J

31.35

33

34.65

11.4

33

800

0.25

0.5

25.1

45

YAZ1P5D36J

34.2

36

37.8

10.4

38

850

0.25

0.5

27.4

42

YAZ1P5D39J

37.05

39

40.95

9.6

45

900

0.25

0.5

29.7

38

YAZ1P5D43J

40.85

43

45.15

8.7

53

950

0.25

0.5

32.7

35

YAZ1P5D47J

44.65

47

49.35

8.0

67

1000

0.25

0.5

35.8

32

YAZ1P5D51J

48.45

51

53.55

7.3

70

1100

0.25

0.5

38.8

29

YAZ1P5D56J

53.2

56

58.8

6.7

86

1300

0.25

0.5

42.6

27

YAZ1P5D62J

58.9

62

65.1

6.0

100

1500

0.25

0.5

47.1

24

YAZ1P5D68J

64.6

68

71.4

5.5

120

1700

0.25

0.5

51.7

22
