SMC 3A Series Schottky diode

Home » Products » Diodes » Schottky Barrier Rectifiers » SMC Series » SMC 3A Series Schottky diode

Share to:

SMC 3A Series Schottky diode

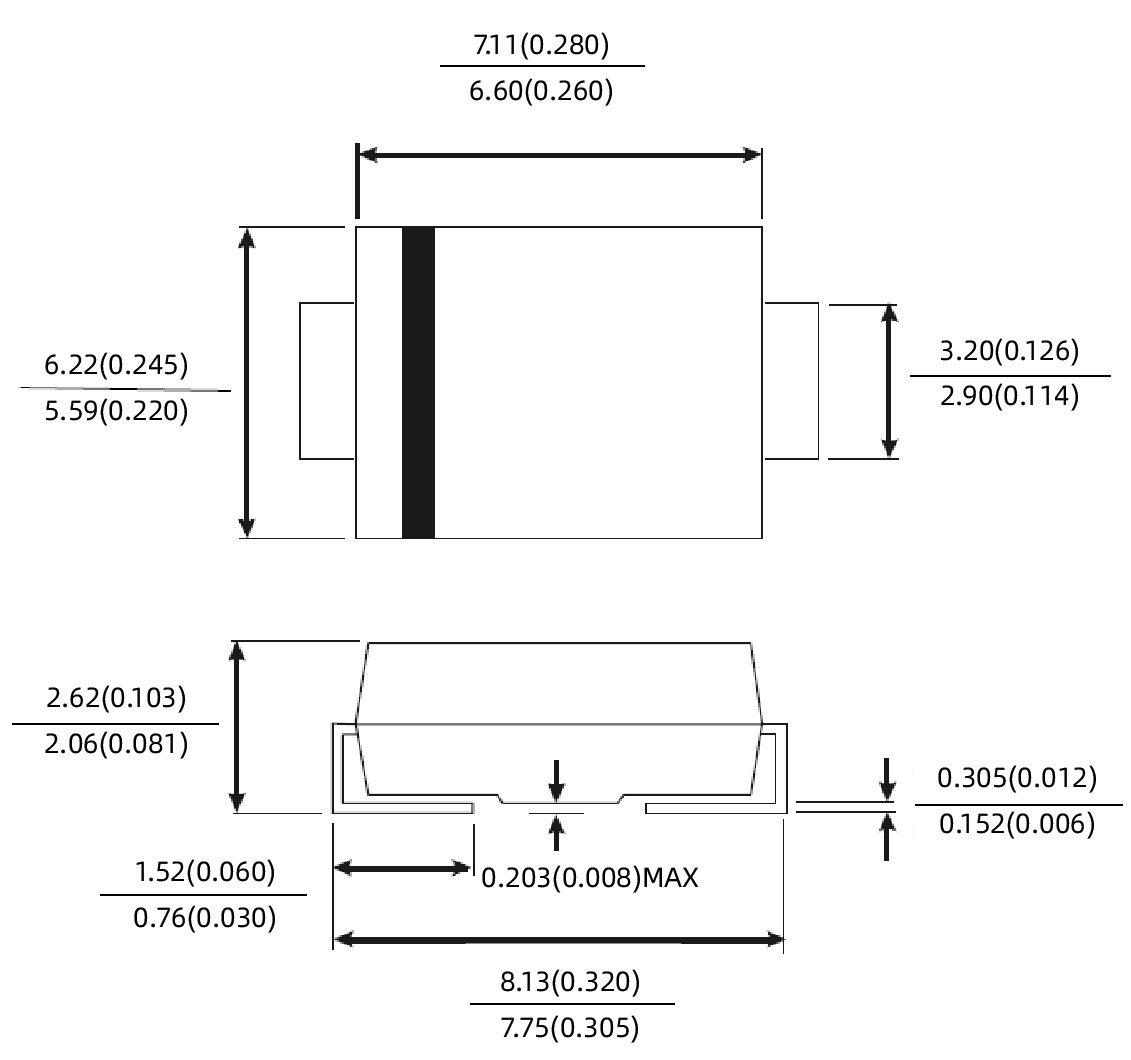

Case: JEDEC DO-214AB molded plastic
Terminals: Solder plated, solderable per JESD22-B102D

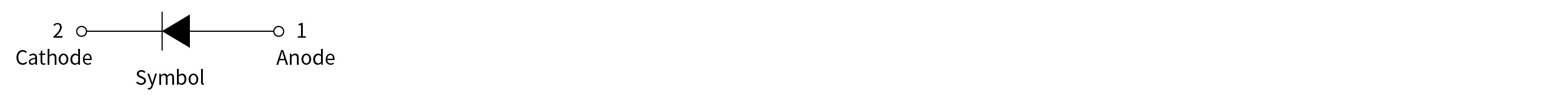

Polarity: Laser band denotes cathode end

Availability:

Quantity:



Inquire Add to Basket

Features

Certification: RoHS
Packaging: in reel
Compact package, easy to install
Efficient overvoltage protection device
Ultra-low forward pressure drop
Ideal products for High Frequency Circuits
Comply with relevant welding international standard MIL-STD-202

※ Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Hot Tags: sk32-sk320(smc) schottky rectifiers, China, manufacturers, factory, price, Schottky Rectifiers, SMD Schottky Barrier Diode, surface mount schottky barrier diode, SMC Schottky Rectifiers, Schottky Barrier Diode, SMA schottky diode

Product Category

Quick Links

Solution

Automotive System

Industrial Instrumentation

USB Interface

Items	Symbol	SK32	SK33	SK34	SK35	SK36	SK38	SK310	SK315	SK320	Unit
Maximum repetitive peak reverse voltage	V_RRM	20	30	40	50	60	80	100	150	200	V
Maximum RMS voltage	V_RMS	14	21	28	35	42	56	70	105	140	V
Maximum DC blocking voltage	V_DC	20	30	40	50	60	80	100	150	200	V
Maximum average forward rectified current	I_F(AV)	3.0									A
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load	I_FSM	100									A
Voltage rate of change (rated VR)	dv/dt	10000									V/μs
Thermal resistance from junction to lead⁽¹⁾	R_θJL	20									°C/W
Operating junction and storage temperature range	T_J，T_STG	-65 TO +150									°C

Items	Symbol	SK32	SK33	SK34	SK35	SK36	SK38	SK310	SK315	SK320	Unit
Maximum repetitive peak reverse voltage	V_RRM	20	30	40	50	60	80	100	150	200	V
Maximum RMS voltage	V_RMS	14	21	28	35	42	56	70	105	140	V
Maximum DC blocking voltage	V_DC	20	30	40	50	60	80	100	150	200	V
Maximum average forward rectified current	I_F(AV)	3.0									A
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load	I_FSM	100									A
Voltage rate of change (rated VR)	dv/dt	10000									V/μs
Thermal resistance from junction to lead⁽¹⁾	R_θJL	20									°C/W
Operating junction and storage temperature range	T_J，T_STG	-65 TO +150									°C

Name	VRRM V	VRRS V	VDC V	IF(AV) A	IFSM A	VF * V	IR(MA) 25℃	IR(MA) 100℃	RθJL * ℃/W	RθJA ℃/W
SK32	20	14	20	3	100	0.5	0.2	20	20	75
SK33	30	21	30	3	100	0.5	0.2	20	20	75
SK34	40	28	40	3	100	0.7	0.05	20	20	75
SK35	50	35	50	3	100	0.74	0.05	20	20	75
SK36	60	42	60	3	100	0.74	0.05	20	20	75
SK38	80	56	80	3	100	0.8	0.05	20	20	75
SK39	90	63	90	3	100	0.8	0.05	20	20	75
SK310	100	70	100	3	100	0.8	0.05	20	20	75
SK315	150	105	150	3	100	0.9	0.05	20	20	75
SK320	200	140	200	3	100	0.9	0.05	20	20	75

Name	VRRM V	VRRS V	VDC V	IF(AV) A	IFSM A	VF * V	IR(MA) 25℃	IR(MA) 100℃	RθJL * ℃/W	RθJA ℃/W
SK32	20	14	20	3	100	0.5	0.2	20	20	75
SK33	30	21	30	3	100	0.5	0.2	20	20	75
SK34	40	28	40	3	100	0.7	0.05	20	20	75
SK35	50	35	50	3	100	0.74	0.05	20	20	75
SK36	60	42	60	3	100	0.74	0.05	20	20	75
SK38	80	56	80	3	100	0.8	0.05	20	20	75
SK39	90	63	90	3	100	0.8	0.05	20	20	75
SK310	100	70	100	3	100	0.8	0.05	20	20	75
SK315	150	105	150	3	100	0.9	0.05	20	20	75
SK320	200	140	200	3	100	0.9	0.05	20	20	75
