1.5KE Series 1500W Transient Voltage Suppressors

  • Package name: DO-201
  • P600 glass passivated chip junction

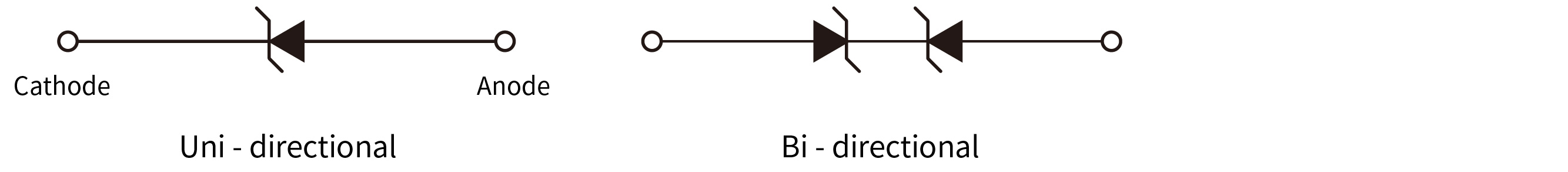

  • Polarity: Color band denoted positive end (cathode) except Bidirectional.
  • Typical failure mode is short from over-specified voltage or current
  • Fast response time: typically less than 1.0ps from 0 Volts to BV min.
  • High Temperature soldering: 260°C/10 seconds at terminals.
  • Solder dip 275 °C max. 10 s, per JESD 22-B106
Availability:
Quantity:
Inquire Add to Basket

TVS 1.5KE series features high breakdown voltage, fast response, large power capacity, low reverse leakage current and high reliability, and is suitable for over-voltage protection of various electronic equipment and circuits.



Application

  • IC

  • MOSFET

  • Signal lines of sensorunits


Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.



Hot Tags: 1.5ke series 1500w transient voltage suppressors, China, manufacturers, factory, price, 800W TVS Diode, Surface Mount Transient Voltage Suppressor, SMDJ TVS, SMD TVS diode, Surface Mount Diode, SMBJ TVS Diode

Peak pulse power dissipation with a 10/1000 μs waveform 1500 Watts
Peak pulse current with a 10/1000 μs waveform See next table
Power dissipation on infinite heat sink at TL= 75 °C 6.5 Watts

Peak forward surge current 8.3 ms single half sine-wave

 200 Amps
Instantaneous forward voltage at 100 A for Unidirectional only 3.5/5.0 V
Operating junction and storage temperature range -55 to + 175 ℃


Note:

  1. Non-repetitive current pulse, per fig. 6 and derated above TA = 25 °C per fig.

  2. Measured 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum

  3. VF<3.5V for devices of VBR< 200V and VF < 5.0V for devices of VBR> 201V

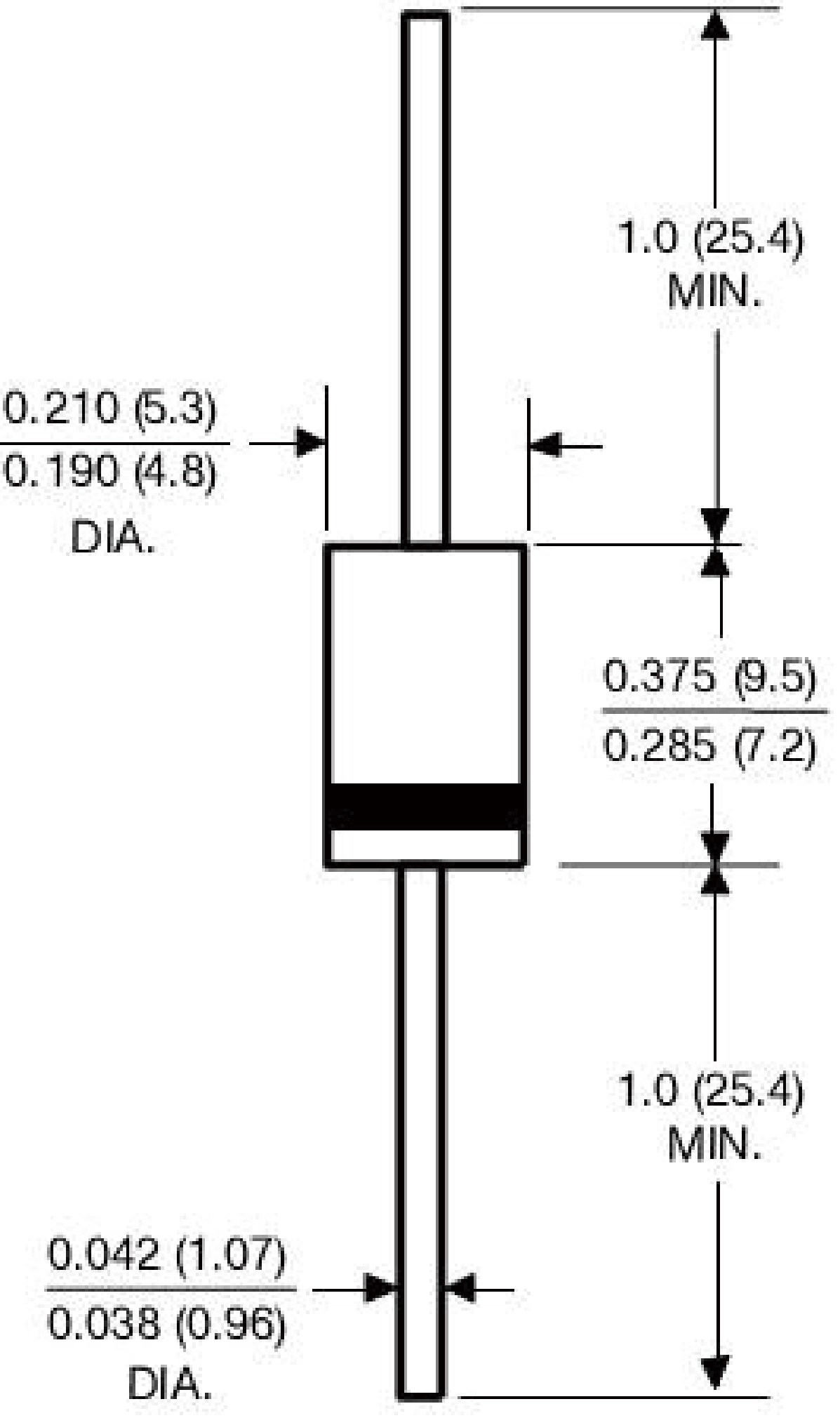

DO-201

Part Number (Bi) Part Number (Uni) Reverse Stand off Voltage VR
(Volts)		 Breakdown
Voltage VBR (Volts)@IT		 Test Current IT(mA) Maximum Reverse Leakage IR
@VR(μA)		 Maximum Peak Pulse Current Ipp
(A)		 Maximum Clamping Voltage VC
@Ipp(V)
Min .V Max .V
1.5KE6.8CA 1.5KE6.8A 5.80 6.45 7.14 10 600 144.8 10.5
1.5KE7.5CA 1.5KE7.5A 6.40 7.13 7.88 10 400 134.5 11.3
1.5KE8.2CA 1.5KE8.2A 7.02 7.79 8.61 10 200 125.6 12.1
1.5KE9.1CA 1.5KE9.1A 7.78 8.65 9.50 1 50 113.4 13.4
1.5KE10CA 1.5KE10A 8.55 9.50 10.50 1 10 104.8 14.5
1.5KE11CA 1.5KE11A 9.40 10.50 11.60 1 5 97.4 15.6
1.5KE12CA 1.5KE12A 10.20 11.40 12.60 1 5 91.0 16.7
1.5KE13CA 1.5KE13A 11.10 12.40 13.70 1 1 83.5 18.2
1.5KE15CA 1.5KE15A 12.80 14.30 15.80 1 1 71.7 21.2
1.5KE16CA 1.5KE16A 13.60 15.20 16.80 1 1 67.6 22.5
1.5KE18CA 1.5KE18A 15.30 17.10 18.90 1 1 60.3 25.2
1.5KE20CA 1.5KE20A 17.10 19.00 21.00 1 1 54.9 27.7
1.5KE22CA 1.5KE22A 18.80 20.90 23.10 1 1 49.7 30.6
1.5KE24CA 1.5KE24A 20.50 22.80 25.20 1 1 45.8 33.2
1.5KE27CA 1.5KE27A 23.10 25.70 28.40 1 1 40.5 37.5
1.5KE30CA 1.5KE30A 25.60 28.50 31.50 1 1 36.7 41.4
1.5KE33CA 1.5KE33A 28.20 31.40 34.70 1 1 33.3 45.7
1.5KE36CA 1.5KE36A 30.80 34.20 37.80 1 1 30.5 49.9
1.5KE39CA 1.5KE39A 33.30 37.10 41.00 1 1 28.2 53.9
1.5KE43CA 1.5KE43A 36.80 40.90 45.20 1 1 25.6 59.3
1.5KE47CA 1.5KE47A 40.20 44.70 49.40 1 1 23.5 64.8
1.5KE51CA 1.5KE51A 43.60 48.50 53.60 1 1 21.7 70.1
1.5KE56CA 1.5KE56A 47.80 53.20 58.80 1 1 19.7 77.0
1.5KE62CA 1.5KE62A 53.00 58.90 65.10 1 1 17.9 85.0
1.5KE68CA 1.5KE68A 58.10 64.60 71.40 1 1 16.5 92.0
1.5KE75CA 1.5KE75A 64.10 71.30 78.80 1 1 14.8 103.0
1.5KE82CA 1.5KE82A 70.10 77.90 86.10 1 1 13.5 113.0
1.5KE91CA 1.5KE91A 77.80 86.50 95.50 1 1 12.2 125.0
1.5KE100CA 1.5KE100A 85.50 95.00 105.00 1 1 11.1 137.0
1.5KE110CA 1.5KE110A 94.00 105.00 116.00 1 1 10.0 152.0
1.5KE120CA 1.5KE120A 102.00 114.00 126.00 1 1 9.2 165.0
1.5KE130CA 1.5KE130A 111.00 124.00 137.00 1 1 8.5 179.0
1.5KE150CA 1.5KE150A 128.00 143.00 158.00 1 1 7.3 207.0
1.5KE160CA 1.5KE160A 136.00 152.00 168.00 1 1 6.9 219.0
1.5KE170CA 1.5KE170A 145.00 162.00 179.00 1 1 6.5 234.0
1.5KE180CA 1.5KE180A 154.00 171.00 189.00 1 1 6.2 246.0
1.5KE200CA 1.5KE200A 171.00 190.00 210.00 1 1 5.5 274.0
1.5KE220CA 1.5KE220A 185.00 209.00 231.00 1 1 4.6 328.0
1.5KE250CA 1.5KE250A 214.00 237.00 263.00 1 1 4.4 344.0
1.5KE300CA 1.5KE300A 256.00 285.00 315.00 1 1 3.7 414.0
1.5KE350CA 1.5KE350A 300.00 332.00 368.00 1 1 3.2 482.0
1.5KE400CA 1.5KE400A 342.00 380.00 420.00 1 1 2.8 548.0
1.5KE440CA 1.5KE440A 376.00 418.00 462.00 1 1 2.5 602.0
1.5KE480CA 1.5KE480A 408.00 456.00 504.00 1 1 2.3 658.0
1.5KE510CA 1.5KE510A 434.00 485.00 535.00 1 1 2.1 698.0
1.5KE530CA 1.5KE530A 450.00 503.00 556.00 1 1 2.1 725
1.5KE540CA 1.5KE540A 459.00 513.00 567.00 1 1 2.0 740.0
1.5KE550CA 1.5KE550A 467.00 522.50 577.50 1 1 2.0 760.0
