Y1ZD Series Zener Diode

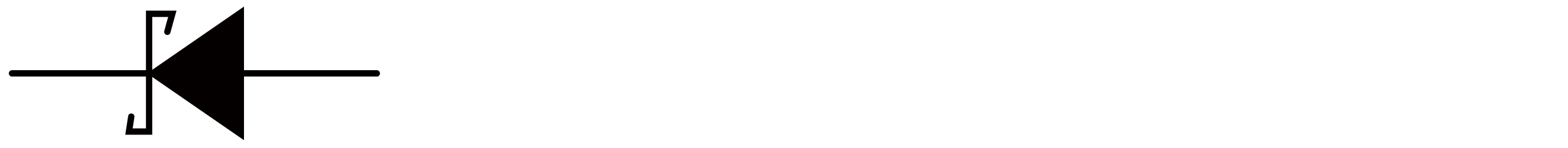

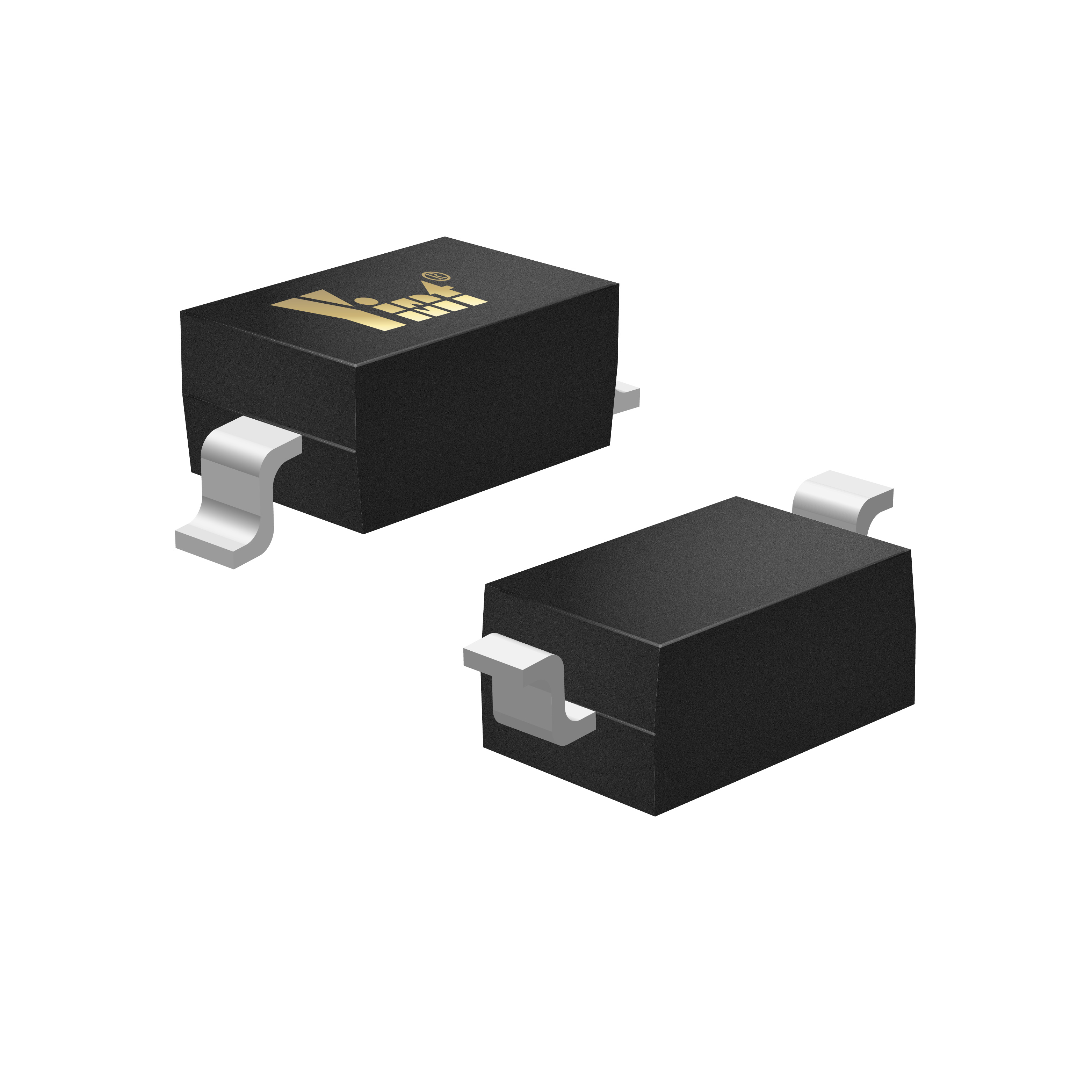

Package name: SOD- 123
Terminals: Solderable per MIL-STD-750, Method 2026
Total power dissipation: Max. 500mW.
Wide zener reverse voltage range 2.0V to 75V.
Small plastic package suitable for surface mounted design
Tolerance approximately±5%

Availability:

Quantity:



Inquire Add to Basket

Zener diode utilizes the reverse breakdown state of the PN junction, the phenomenon that the current can change within a wide range while the voltage remains basically unchanged, and is a diode with a voltage stabilizing function. Zener diodes can be connected in series for use at higher voltages, and higher stable voltages can be obtained through series connection.

Application

Voltage Regulation
Waveform Clipping
MOSFET Gate Protection

Product Category

Quick Links

Solution

Automotive System

Industrial Instrumentation

USB Interface

Parameter: Power Dissipation	500	W
Forward Voltage at IF = 10 mA	0.9	V
Typical thermal resistance juncting to ambient( 1)	340	W
Operating and Storage Temperature Range	-55~+150	C

Parameter: Power Dissipation	500	W
Forward Voltage at IF = 10 mA	0.9	V
Typical thermal resistance juncting to ambient( 1)	340	W
Operating and Storage Temperature Range	-55~+150	C

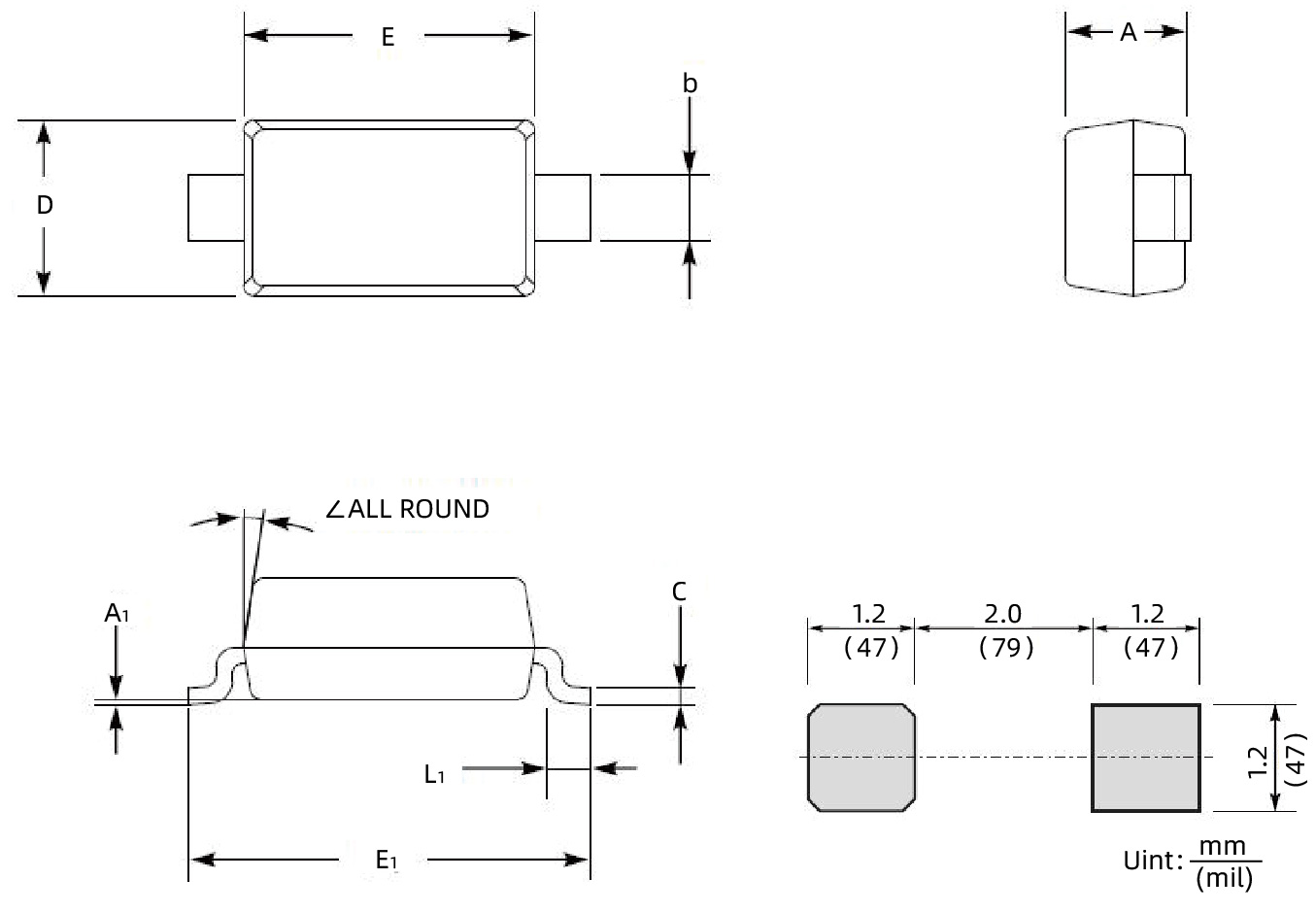

UNIT		A	C	D	E	E1	L1	b	A1	∠
mm	max	1.3	0.22	1.8	2.8	3.9	0.45	0.7	0.2	9°
mm	min	0.9	0.09	1.5	2.5	3.6	0.25	0.5	-
mil	max	51	8.7	71	110	154	18	28	8
mil	min	35	3.5	59	98	142	10	20	-

UNIT		A	C	D	E	E1	L1	b	A1	∠
mm	max	1.3	0.22	1.8	2.8	3.9	0.45	0.7	0.2	9°
mm	min	0.9	0.09	1.5	2.5	3.6	0.25	0.5	-
mil	max	51	8.7	71	110	154	18	28	8
mil	min	35	3.5	59	98	142	10	20	-

Type	Marking	Zener Voltage Range⁽¹⁾				Dynamic Impedance	Reverse Current
		V _ZT（at I _ZT）			I _ZT	Z _ZT（at I _ZT）	AND	at VR
		Min（V）	Nom（V）	Max（V）	(mA)	Max (Ω)	Max（μA）	(IN)
Y1ZD2V0	4A	1.8	2.0	2.15	5	100	120	0.5
Y1ZD2V2	4B	2.08	2.2	2.33	5	100	120	0.7
Y1ZD2V4	4C	2.28	2.4	2.56	5	100	120	1
Y1ZD2V7	4D	2.5	2.7	2.9	5	110	120	1
Y1ZD3V0	4E	2.8	3.0	3.2	5	120	50	1
Y1ZD3V3	4F	3.1	3.3	3.5	5	130	20	1
Y1ZD3V6	4H	3.4	3.6	3.8	5	130	10	1
Y1ZD3V9	4J	3.7	3.9	4.1	5	130	5	1
Y1ZD4V3	4K	4	4.3	4.6	5	130	5	1
Y1ZD4V7	4M	4.4	4.7	5	5	130	2	1
Y1ZD5V1	4N	4.8	5.1	5.4	5	130	2	1.5
Y1ZD5V6	4P	5.2	5.6	6	5	80	1	2.5
Y1ZD6V2	4R	5.8	6.2	6.6	5	50	1	3
Y1ZD6V8	4X	6.4	6.8	7.2	5	30	0.5	3.5
Y1ZD7V5	4Y	7	7.5	7.9	5	30	0.5	4
Y1ZD8V2	4Z	7.7	8.2	8.7	5	30	0.5	5
Y1ZD9V1	5A	8.5	9.1	9.6	5	30	0.5	6
Y1ZD10	5B	9.4	10	10.6	5	30	0.1	7
Y1ZD11	5C	10.4	11	11.6	5	30	0.1	8
Y1ZD12	5D	11.4	12	12.7	5	35	0.1	9
Y1ZD13	5E	12.4	13	14.1	5	35	0.1	10
Y1ZD15	5F	13.8	15	15.6	5	40	0.1	11
Y1ZD16	5H	15.3	16	17.1	5	40	0.1	12
Y1ZD18	5J	16.8	18	19.1	5	45	0.1	13
Y1ZD20	5K	18.8	20	21.2	5	50	0.1	15
Y1ZD22	5M	20.8	twenty two	23.3	5	55	0.1	17
Y1ZD24	5N	22.8	twenty four	25.6	5	60	0.1	19
Y1ZD27	5P	25.1	27	28.9	5	70	0.1	twenty one
Y1ZD30	5R	28	30	32	5	80	0.1	twenty three
Y1ZD33	5X	31	33	35	5	80	0.1	25
Y1ZD36	5Y	34	36	38	5	90	0.1	27
Y1ZD39	5Z	37	39	41	2.5	100	2	30
Y1ZD43	6A	40	43	46	2.5	130	2	33
Y1ZD47	6B	44	47	50	2.5	150	2	36
Y1ZD51	6C	48	51	54	2.5	180	1	39
Y1ZD56	6D	52	56	60	2.5	180	1	43
Y1ZD62	6E	58	62	66	2.5	200	0.2	47
Y1ZD68	6F	64	68	72	2.5	250	0.2	52
Y1ZD75	6H	70	75	79	2.5	300	0.2	57
