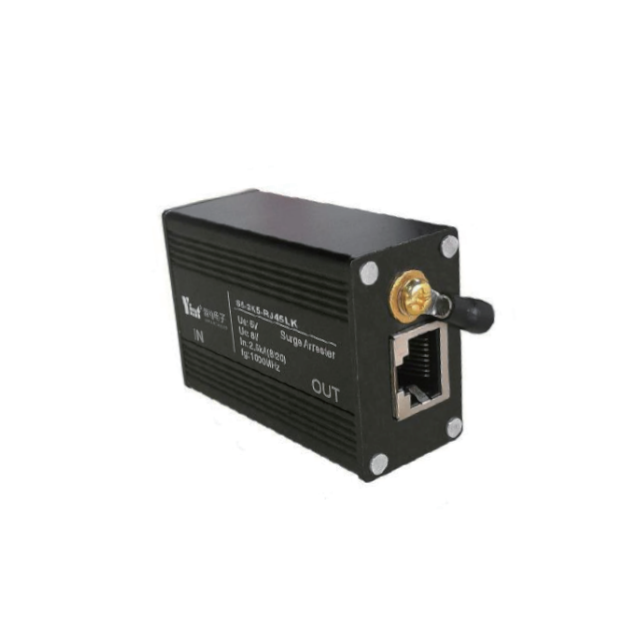

S05-2K5-RJ45L/RJ45LK SPD

It is mainly suitable for routers or POE equipment in computer networks, electronic equipment in data systems such as servers and workstations, and various video surveillance equipment connected through the network. It can prevent permanent damage or instantaneous interruption to signal equipment or systems caused by induced overvoltage, overcurrent and other instantaneous surge voltages caused by lightning strikes or industrial noise.
Availability:
Quantity:

Schematic diagram

微信图片_20240511094621

微信图片_20240511094625


Dimension

微信图片_20240511094629


1. The lightning arrester is connected in series between the signal channel and the protected equipment.

2. Reliably connect the lightning arrester to the ground wire voltage equalizing ring of the lightning protection system. The length of the ground wire should be less than 0.5m.

3. Lightning arresters require no special maintenance. When the system fails and the lightning arrester is suspected, the lightning arrester can be removed and then checked. If the system returns to normal after returning to the state before use, it means that the lightning arrester has been damaged and the lightning arrester should be replaced.

微信图片_20240116095927


Model

S05-2K5-RJ45L(RJ45LK)

According to standards: GB/T18802.11(IEC61643-21)

C2

Nominal  voltage (Un)

5V

Maximum continuous operating voltage (Uc)

8V

Nominal discharge current (8/20μs) [ln]

2.5KA

Voltage Protection Level (Up)[Line to Line]

45V

Voltage Protection Level (Up)[Line to Ground]

500V

Transmission rate

100MHZ/1000MHZ

Insertion loss

≤0.5dB

Response time (t)

≤1ns

Operating temperature range (Tu)

-40℃~+70°C

Protect line 1,2,3,6 lines/1,2,3,4,5,6,7,8 lines
Applicable network equipment 100MHz Ethernet device/1000MHz Ethernet device or POE device
Maximum load current 0.4A/per pair of lines

Ground conductor cross-sectional area

2.5mm² multi-strand wire

Installation method 35mm DIN rail according to EN 60715

Shell material

black aluminum alloy

Installation Location

Indoor

Protection level

IP20

Size

-

Relative humidity

≤95% no condensation
