Products
Package

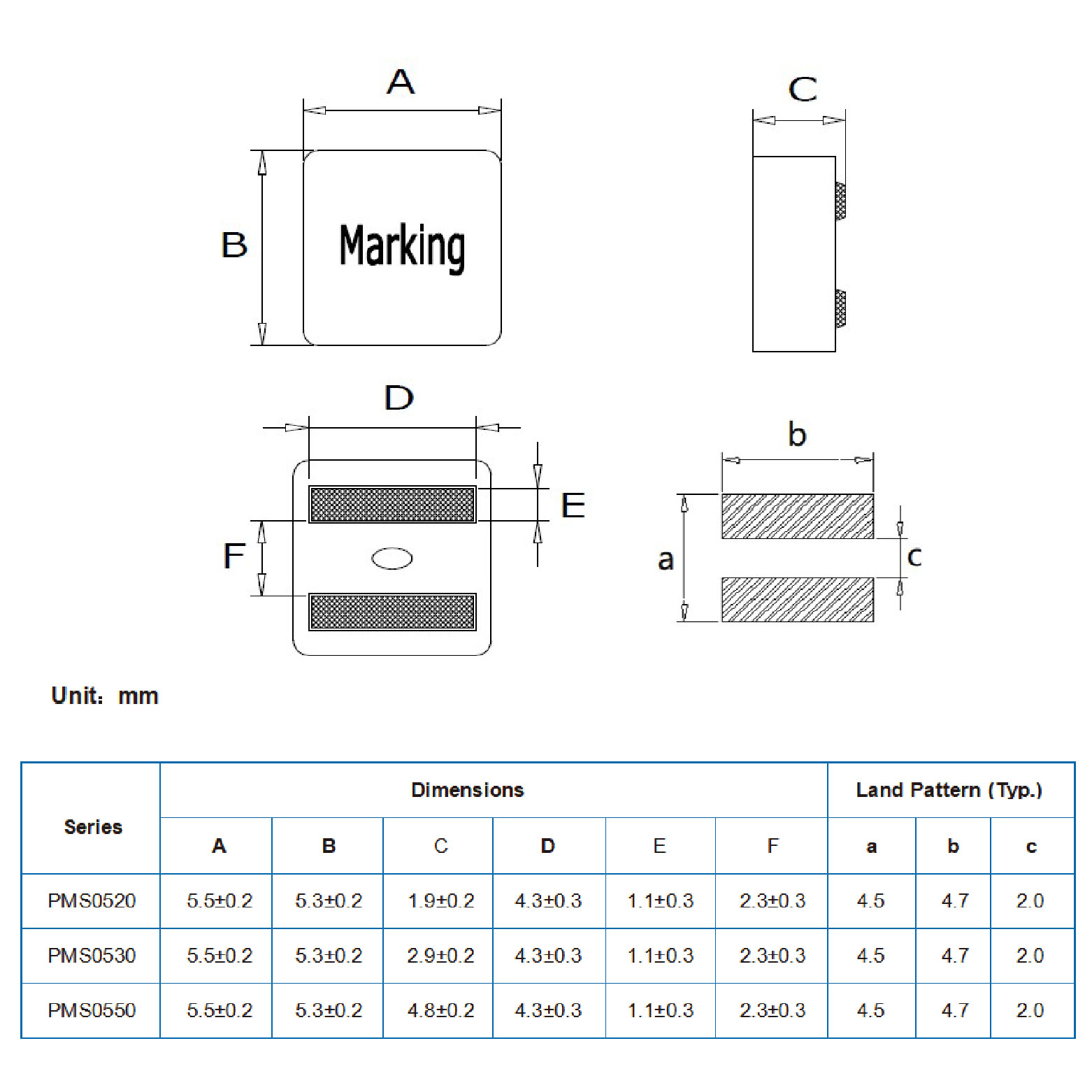

Dimensions
Power Inductors

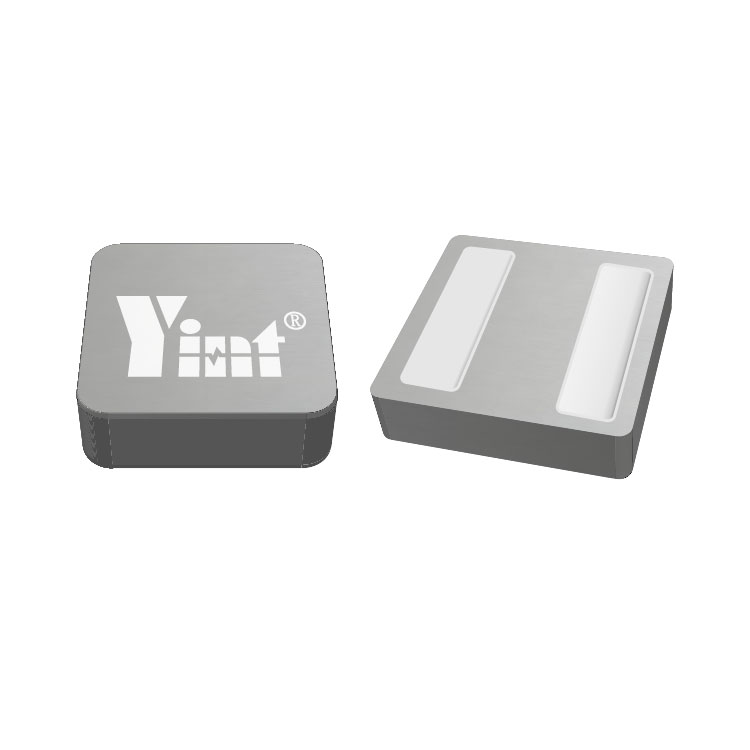

PMS0550-150M0T

The PMS0550-150M0T provides strong saturation margin with low copper loss, enabling efficient power conversion in server DC-DC modules, telecom converters, industrial control boards, and embedded high current power architectures where EMI suppression and thermal stability are critical.

Product details

Size
0550
Inductance L0 (μH)
15
DC Resistance[Max](mΩ)
76.70
Saturation Current[Typ](A)
3.70
Irms[Typ](A)
3.90

Package Information

Mounting Type
patch
Package Type
0550
Unit Weight
Packing Information
tape packaging:2000 pieces/盘
