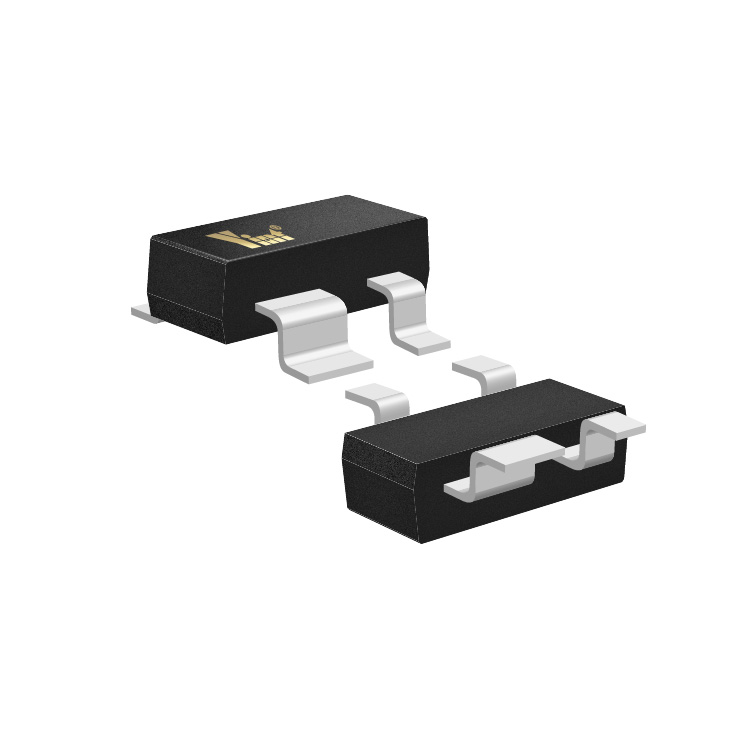

Package

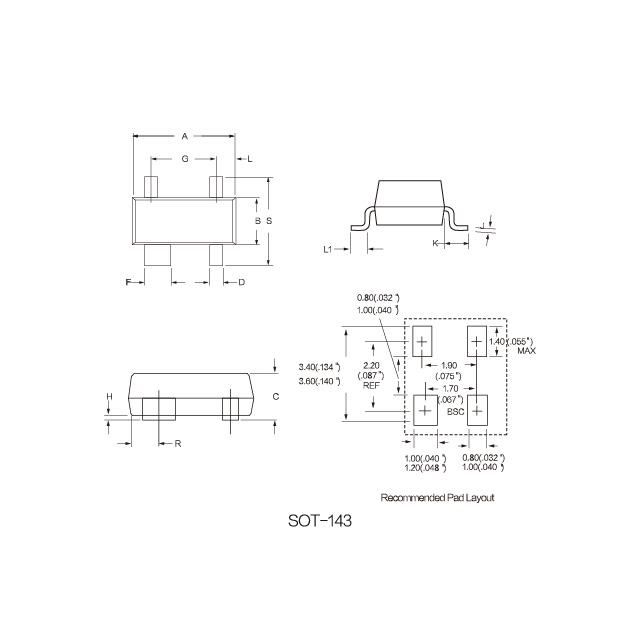

Dimensions
View
View
ESD Protection Diodes
ESDSR05
new
ESDSR05 offers low leakage current, fast response and stable clamping voltage, making it ideal for USB, Ethernet, video and portable electronics.
DATA SHEET
SAMPLE
Product details
Package
SOT143
Bi-/uni-directional
UNI
Channel
2
Vrwm (V)
5.00
Vbr[min](V)
6.00
Vbr[max](V)
8.00
Ppk(W)
36.00
Ipp(A)
3.00
Vc@lpp [Max](V)
12.00
IR@Vrwm(μA)
1.00
@ iT (mA)
1.00
IEC 61000−4−2 VESD(Air)
15KV
IEC 61000−4−2 VESD(Contact)
10KV
C(max)(pF)
0.60
AEC-Q101 Qualified
no
Status
Active
Package Information
Mounting Type
patch
Package Type
SOT-143
Unit Weight
Packing Information
tape packaging：3000 pieces/roll
Related Products
Part Number
Category
Package Type
Status
Datasheet
ESDLC8V0D3
ESD Protection Diodes
SOD323
Active
Download
ESDULC5V0D5
ESD Protection Diodes
SOD523
Active
Download
ESDULC3V3D9B
ESD Protection Diodes
SOD923
Active
Download
ESDSMDA15C
ESD Protection Diodes
SOP8
Active
Download
ESDULC1V0D06B
ESD Protection Diodes
DFN0603
Active
Download
ESDLC5V0APB
ESD Protection Diodes
SOT23
Active
Download
ESDSR05AP
ESD Protection Diodes
SOT23
Active
Download
ESDSRVLC05-4
ESD Protection Diodes
SOT23-6
Active
Download
ESDSR05
ESD Protection Diodes
SOT143
Active
Download
ESDSR05T
ESD Protection Diodes
SOT143
Active
Download
