Electronic chair

Electronic chairs used in precision medical treatment and diagnosis employ multi-motor coordinated motion. Motor commutation, handheld controller activity, and frequent connector interactions generate surge voltages, electrostatic discharge (ESD) pulses and high frequency noise. These interference sources can disrupt sensor logic and controller stability, leading to inaccurate positioning or unintended motion. YINT’s protection solutions combine high energy surge defense, ESD suppression and EMI filtering to ensure smooth, noise-free motion and reliable control.

Block diagram

Find products and reference designs for your system.

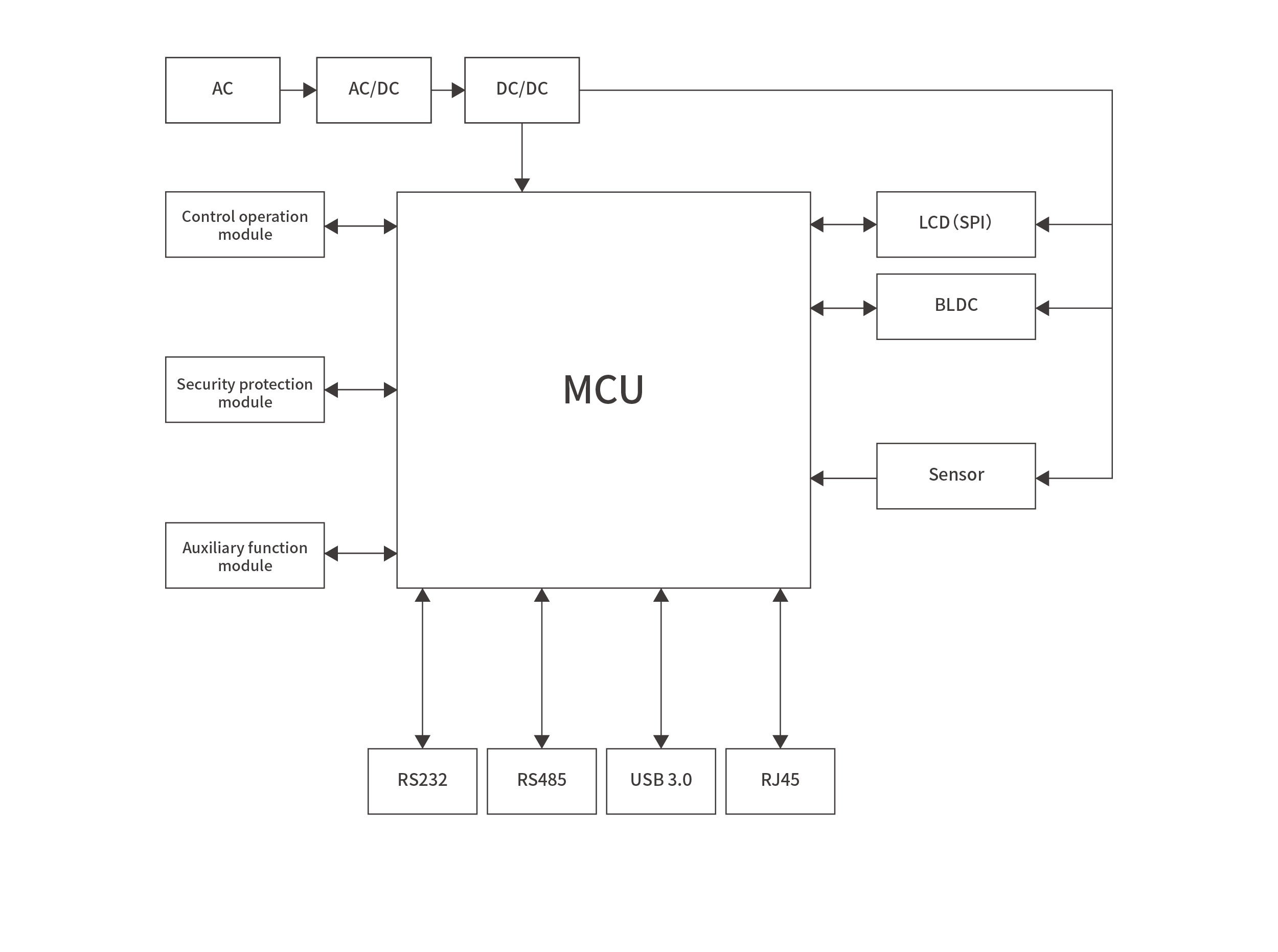

Electronic chairBlock diagram

Products

Reference designs

Gdt 气体放电管 (2)

2R600L-5.5×6

-- 2R600L-5.5×6, 2-electrode GDT, 600V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R600L-8×6

-- 2R600L-8×6, 2-electrode gas discharge tube, 600V DC breakdown voltage, ±20% tolerance, 10kA (8/20µs) impulse discharge current, ≤1pF, ITU-T K.12 compliant, for primary lightning protection.

Mov 压敏电阻 (2)

Gdt 气体放电管 (2)

2R090L-5.5×6

-- 2R090L-5.5×6, 2-electrode GDT, 90V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R090L-8×6

-- 2R090L-8×6, 2-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20µs), ≤1pF.

Mov 压敏电阻 (1)

Tvs 瞬态抑制二极管 (2)

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (2)

ESD5V0D3B

-- 5V working voltage, high surge low clamping TVS diode optimized for rugged transient suppression

ESD3V3D8B

-- Enhanced ESD diode protects 3.3V signal lines in compact designs.

Tss 半导体放电管 (2)

P0220SCL

-- P0220SCL, TSS surge suppressor, offers reliable surge suppression for industrial and telecom circuits, with fast clamping and low leakage.

P3100SCL

-- P3100SCL, TSS surge suppressor, provides reliable protection for telecom lines and sensitive electronics. With fast response and low leakage, it provides the reliability needed for modern communication equipment.

Tss 半导体放电管 (1)

P0080SCL

-- P0080SCL, TSS surge suppressor, offers fast clamping for protecting low-voltage signal circuits from transient overvoltage events.

Esd 静电保护元件 (2)

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Tvs 瞬态抑制二极管 (1)

Common mode inductor 共模滤波电感 (1)

Gdt 气体放电管 (3)

3R090L-5×7.6

-- 3R090L-5×7.6, 3-electrode GDT, 90V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

3R090L-6×8

-- 3R090L-6×8, 3-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20µs), ≤1pF.

3R090L-8×10

-- 3R090L-8×10, 3-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20μs), ≤1pF.

Esd 静电保护元件 (1)
