Industrial alarm devices

Industrial alarm devices must maintain 100% responsiveness in emergency conditions. Power grid surges, EFT from motor start/stop, and ESD events can cause false triggers or latch-up in alarm circuits, leading to delayed alarms or system failures. Reliable protection ensures immediate, accurate alarm signaling under harsh interference environments.

Block diagram

Find products and reference designs for your system.

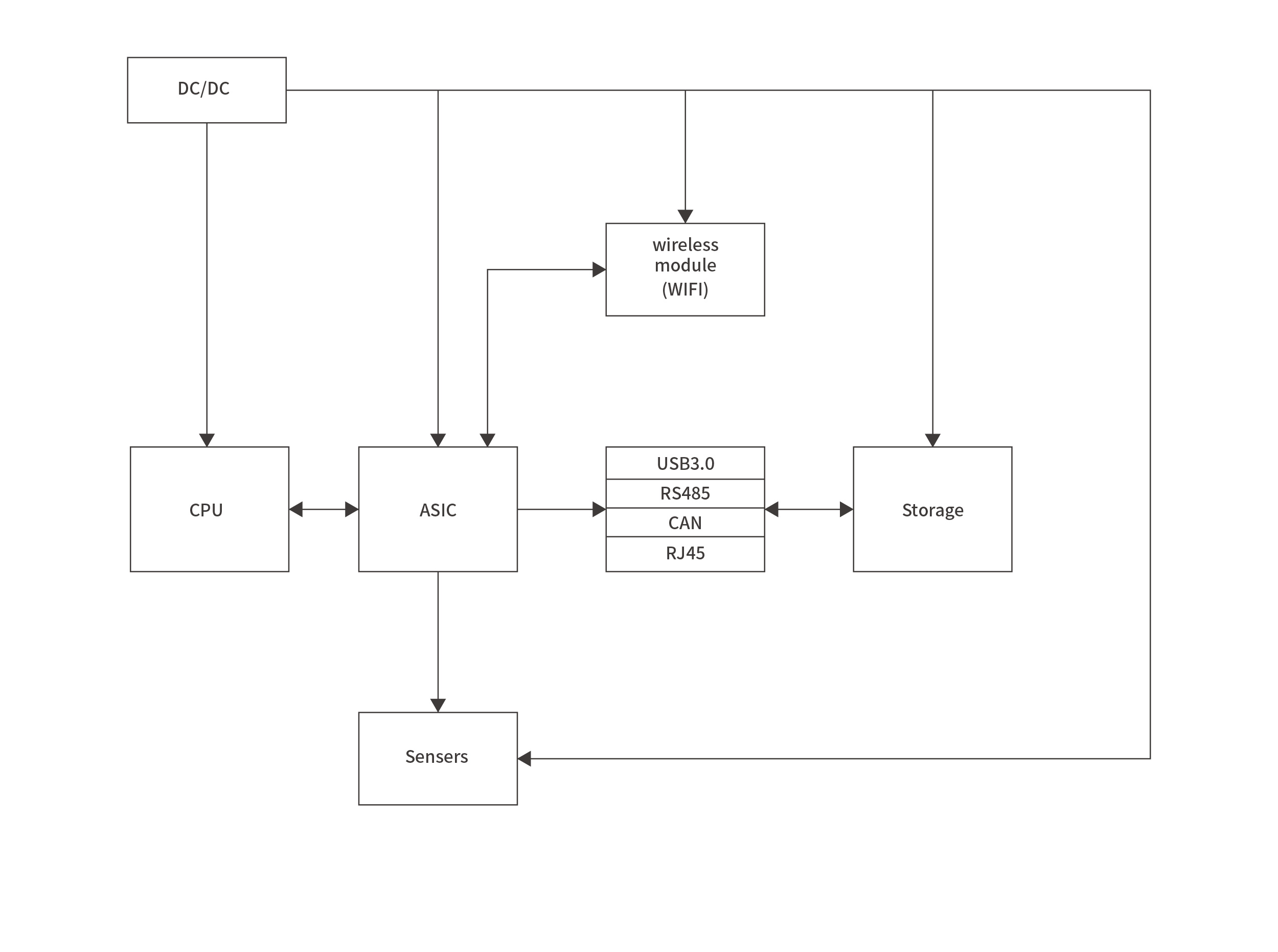

Industrial alarm devicesBlock diagram

Products

Reference designs

Gdt 气体放电管 (3)

3R090L-5×7.6

-- 3R090L-5×7.6, 3-electrode GDT, 90V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

3R090L-6×8

-- 3R090L-6×8, 3-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20µs), ≤1pF.

3R090L-8×10

-- 3R090L-8×10, 3-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20μs), ≤1pF.

Tvs 瞬态抑制二极管 (2)

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (2)

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Tvs 瞬态抑制二极管 (1)

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (1)

ESD5V0APB

-- 5V working voltage, high surge current TVS array with enhanced clamping performance for rugged interface protection

Tvs 瞬态抑制二极管 (1)

Common mode inductor 共模滤波电感 (1)

Ferrite beads 磁珠 (1)

Esd 静电保护元件 (1)

ESD24VAPB

-- 24V bidirectional TVS array, VBR 25.5–29.5V, clamping 31–35V @1A / 40–50V @10A, 30–50pF, AEC-Q101

Common mode inductor 共模滤波电感 (1)

Ferrite beads 磁珠 (1)

Gdt 气体放电管 (3)

3R090L-5×7.6

-- 3R090L-5×7.6, 3-electrode GDT, 90V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

3R090L-6×8

-- 3R090L-6×8, 3-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20µs), ≤1pF.

3R090L-8×10

-- 3R090L-8×10, 3-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20μs), ≤1pF.

Esd 静电保护元件 (1)
