Applications
Focus on customer's program needs, tailor-make solutions, and help you enhance the core competitiveness of your products

Landscape lights

Landscape lighting is not only an embellishment of urban aesthetics but also a crucial component of outdoor electrical systems. Due to their dispersed installation locations and long cabling, they are highly susceptible to induced lightning strikes, ground potential rise, and transient overvoltage surges caused by fluctuations in the public power grid. We offer multi-level surge protection (SPD) and high-grade moisture-proof isolation solutions. These solutions effectively protect LED light source arrays and constant current drive power supplies from high-energy surge damage, prevent branch circuit tripping due to individual light fixture failure, and ensure the continuous and stable operation of the lighting system under extreme weather conditions (such as heavy rain and lightning), significantly reducing subsequent maintenance costs.

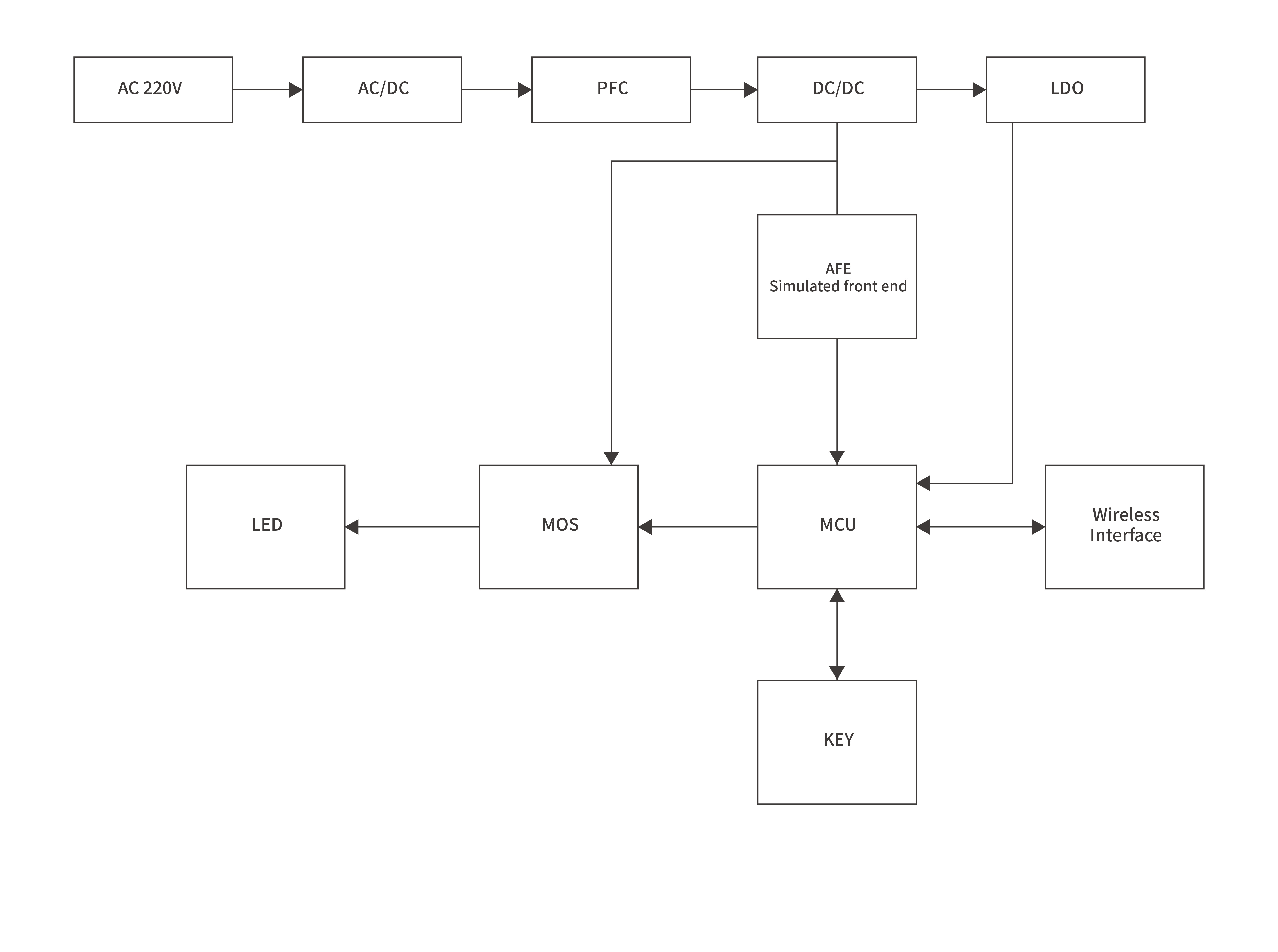

Block diagram
Find products and reference designs for your system.
Landscape lightsBlock diagram

Products

Reference designs

Mov 压敏电阻 (1)

14D561K

-- 560V MOV absorbs surge energy on industrial power circuits.

{gas discharge tubes (5)

Ntc thermistors (1)

Tvs diodes (1)

SMBJ58CA

-- SMBJ58CA, bidirectional TVS diode, VR=58V, VBR≈64.4–71.2V, VC≈93.6V, 600W.

Rectifier diodes (1)

Varistors (1)

10D391K

-- 390V MOV clamps surge voltage on industrial power systems.

Tvs diodes (1)

SMBJ5.0A

-- SMBJ5.0A, unidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

Tvs diodes (1)

SMBJ5.0A

-- SMBJ5.0A, unidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

{esd protection diodes (1)

Zener diodes (1)

Tvs diodes (1)

SMBJ30CA

-- SMBJ30CA, bidirectional TVS diode, VR=30V, VBR≈33.3–36.8V, VC≈48.4V, 600W.

Esd protection diodes (1)

Tvs diodes (1)

SMBJ150CA

-- SMBJ150CA, bidirectional TVS diode, VR=150V, VBR≈167–185V, VC≈243V, 600W.

Tvs diodes (1)

SMAJ3.3A

-- SMAJ3.3A, unidirectional TVS, VR=3.3V, VBR=3.3–4.1V, VC=7.3V, 400W.

Esd protection diodes (2)

Esd protection diodes (2)

ESDSRV05-4H

-- SOT23-6L high surge TVS diode array for multi-line transient suppression

NRESDTLC5V0D8B

-- DFN1006 ultra low capacitance TVS diode rated at 5V for single line ESD protection

Tvs diodes (1)

SMBJ5.0A

-- SMBJ5.0A, unidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

Esd protection diodes (1)

Tvs diodes (1)

1.5KE440A

-- Unidirectional 1500W TVS diode clamping transient overvoltages on 440V DC rails.

Varistors (1)
