Electrocardiogram (ECG)

Electrocardiogram (ECG) equipment must capture microvolt-level bioelectrical signals in complex physiological environments. These weak signals are highly susceptible to electrostatic discharge (ESD), high-frequency electrosurgical pulses, and surge transients from nearby medical equipment. Without effective protection, noise and voltage spikes can distort ECG waveforms and jeopardize diagnostic accuracy, risking patient safety. YINT’s tailored solutions combine ultra-low capacitance ESD arrays, TVS transient suppressors, GDT surge devices, and EMI filters to safeguard sensitive front-end circuitry without degrading signal integrity.

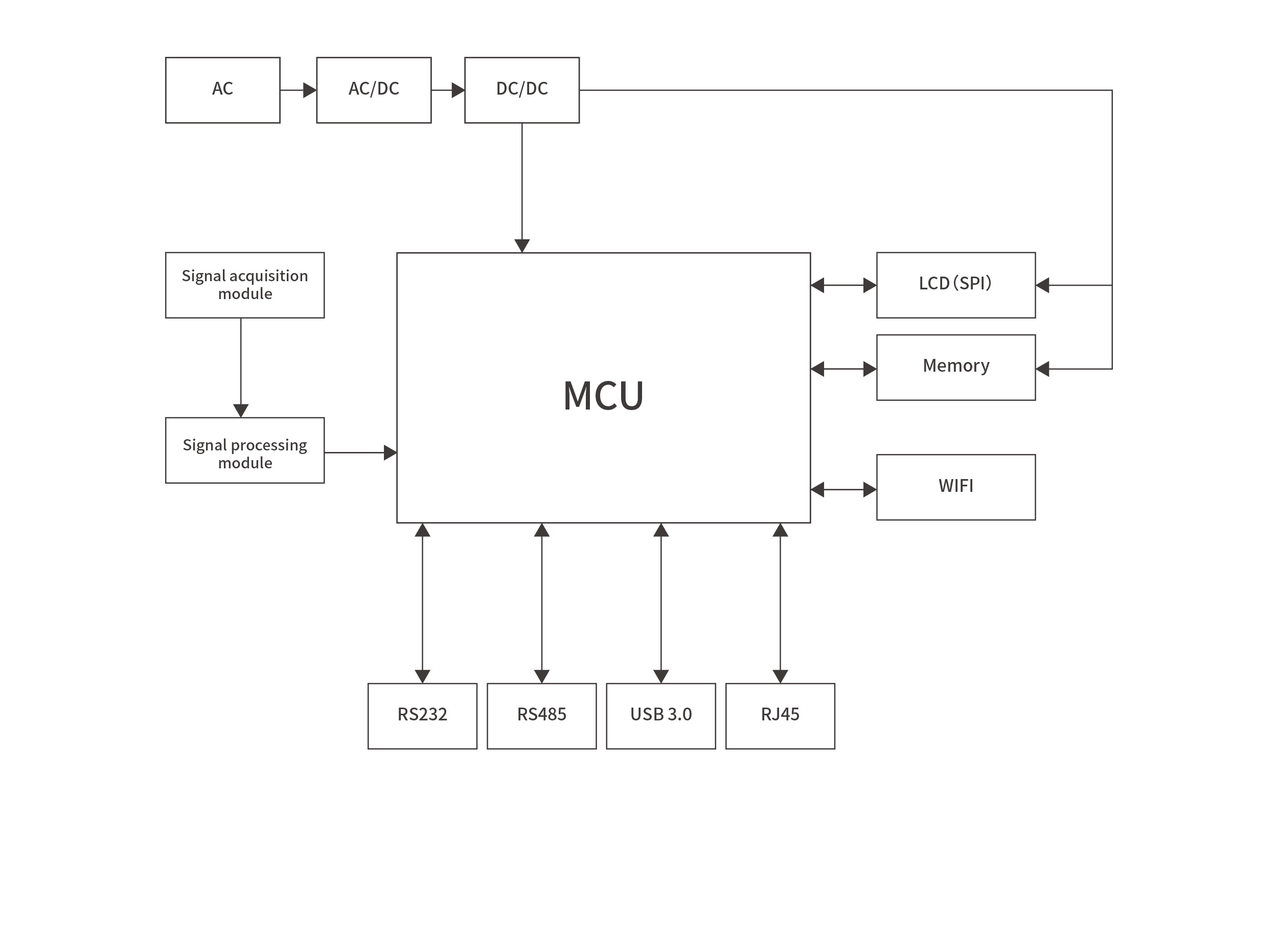

Block diagram

Find products and reference designs for your system.

Products

Reference designs

Gdt 气体放电管 (2)

2R600L-5.5×6

-- 2R600L-5.5×6, 2-electrode GDT, 600V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R600L-8×6

-- 2R600L-8×6, 2-electrode gas discharge tube, 600V DC breakdown voltage, ±20% tolerance, 10kA (8/20µs) impulse discharge current, ≤1pF, ITU-T K.12 compliant, for primary lightning protection.

Mov 压敏电阻 (2)

Gdt 气体放电管 (2)

2R090L-5.5×6

-- 2R090L-5.5×6, 2-electrode GDT, 90V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R090L-8×6

-- 2R090L-8×6, 2-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20µs), ≤1pF.

Mov 压敏电阻 (1)

Tvs 瞬态抑制二极管 (2)

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

NRESDTLC5V0D8B

-- DFN1006 ultra low capacitance TVS diode rated at 5V for single line ESD protection

Tss 半导体放电管 (2)

P0220SCL

-- P0220SCL, TSS surge suppressor, offers reliable surge suppression for industrial and telecom circuits, with fast clamping and low leakage.

-- P3100SCL, TSS surge suppressor, provides reliable protection for telecom lines and sensitive electronics. With fast response and low leakage, it provides the reliability needed for modern communication equipment.
