Dental medical equipment

Dental medical equipment such as high-speed dental drills and intraoral imaging systems operate under severe electromagnetic stress due to rapid motor switching, high gain sensor front-ends and long cable runs. Motor back-EMF, surge transients and EMI noise can couple into control circuits and image sensors, causing unintended resets, noise in imaging data, or premature failure of sensitive electronics. YINT’s protection solutions combine gas discharge tubes (GDT) for initial surge diversion, MOV varistors for energy absorption, TVS diodes for fast transient suppression, ultra-low capacitance ESD arrays for sensor and communication ports, and common-mode chokes to mitigate conducted noise — ensuring precision, stability and long-term reliability in dental diagnostic and treatment systems.

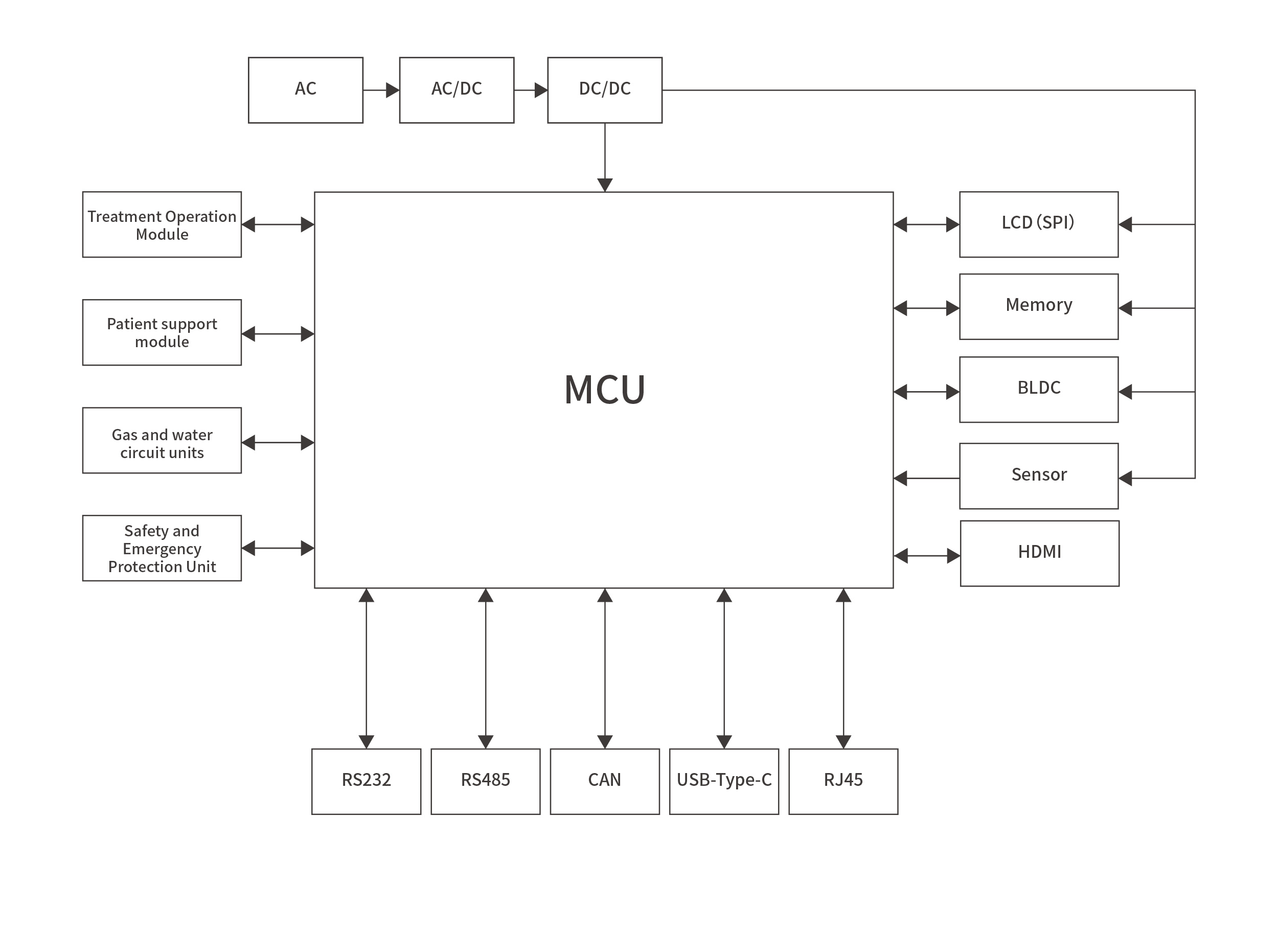

Block diagram

Find products and reference designs for your system.

Products

Reference designs

Gdt 气体放电管 (2)

2R600L-5.5×6

-- 2R600L-5.5×6, 2-electrode GDT, 600V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R600L-8×6

-- 2R600L-8×6, 2-electrode gas discharge tube, 600V DC breakdown voltage, ±20% tolerance, 10kA (8/20µs) impulse discharge current, ≤1pF, ITU-T K.12 compliant, for primary lightning protection.

Mov 压敏电阻 (2)

Tvs 瞬态抑制二极管 (3)

SMBJ6.5CA

-- SMBJ6.5CA, bidirectional TVS diode, VR=6.5V, VBR≈7.22–7.98V, VC≈11.2V, 600W.

SMCJ15CA

-- SMCJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, IPP≈61A, IR≤1µA, 1500W.

SMDJ28CA

-- SMDJ28CA, bidirectional TVS, VR=28V, VBR≈31.1–34.4V, VC≈45.4V, IPP≈66.1A, IR≤2µA, PPK=3000W.

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (2)

ESD5V0D3B

-- 5V working voltage, high surge low clamping TVS diode optimized for rugged transient suppression

ESD3V3D8B

-- Enhanced ESD diode protects 3.3V signal lines in compact designs.

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Tss 半导体放电管 (2)

P0220SCL

-- P0220SCL, TSS surge suppressor, offers reliable surge suppression for industrial and telecom circuits, with fast clamping and low leakage.

-- P3100SCL, TSS surge suppressor, provides reliable protection for telecom lines and sensitive electronics. With fast response and low leakage, it provides the reliability needed for modern communication equipment.
