Schottky Barrier Diodes
TVS Diodes ESD Protection Diodes Resettable Fuses Thyristor Surge Suppressor Gas Discharge Tubes Schottky Barrier Diodes Varistors NTC thermistors MF72 eFuse NTC thermistors MF52、MF58
Overview Specifications Package Information Related Products
Package
Dimensions

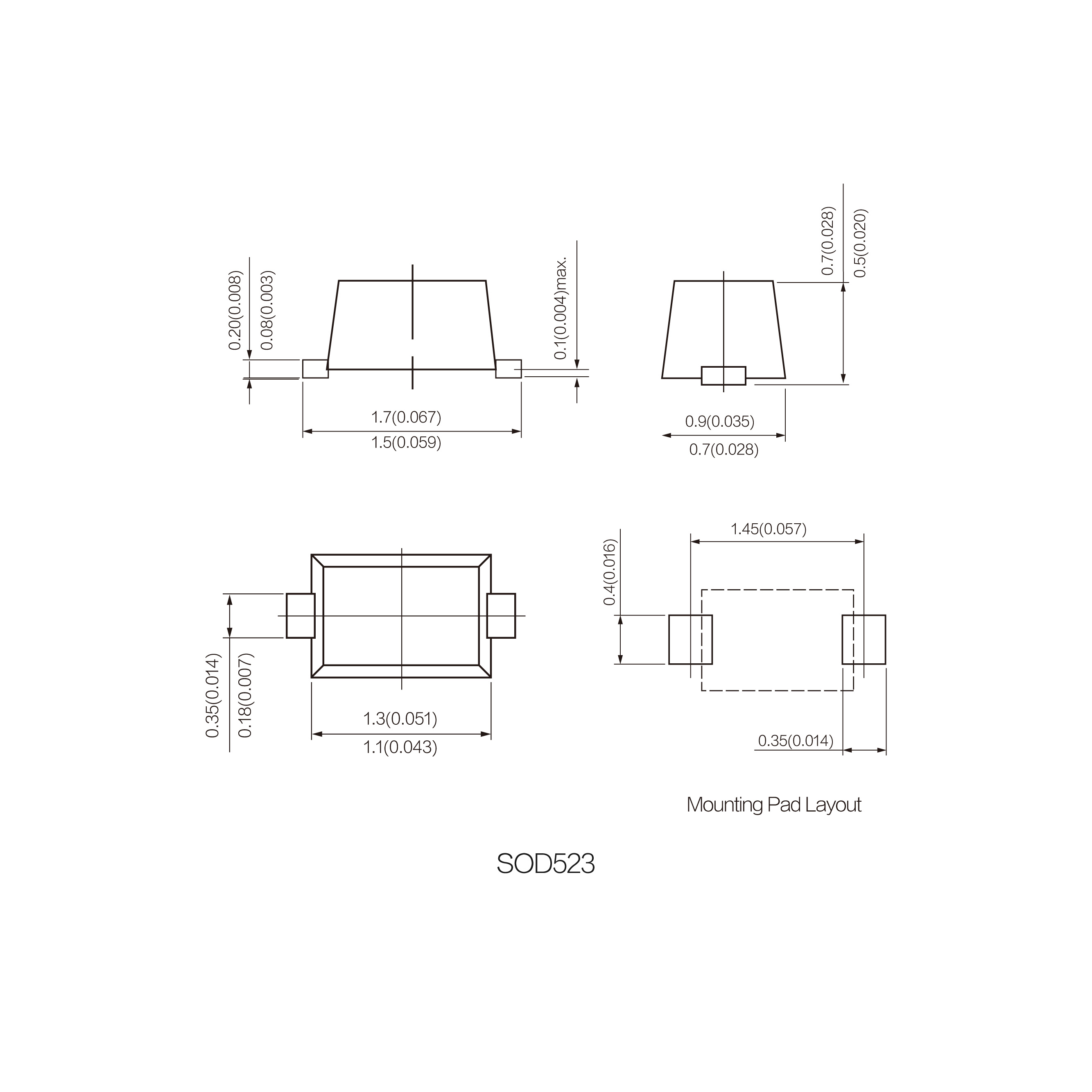

YSD200D5-30Dimensions
View
YSD200D5-30Dimensions
View
Schottky Barrier Diodes

YSD200D5-30

YSD200D5-30 is a 30V/200mA Schottky diode in ultra-small SOD-523 package. Low VF, low loss, high efficiency, perfect for high-density PCB, portable devices, sensors, DC-DC converters and low-power electronic systems.

DATA SHEETDATA SHEET SAMPLE

Product details

Package
SOD-523
VRRM(V) F(A)
30.00
IF(A)
0.20
IR[Max](mA)Tj=25℃
0.03
IR [Max](mA)Tj=100℃
/
VF[Max](V)
0.50
TJ(℃)
125.00
Status
Active

Package Information

Mounting Type
patch
Package Type
SOD-523
Unit Weight
Packing Information
tape packaging：3000 pieces/reel

Related Products

Part Number
Category
Package Type
Status
Datasheet
YSD200D5-30
Schottky Barrier Diodes
SOD-523
Active
Download
