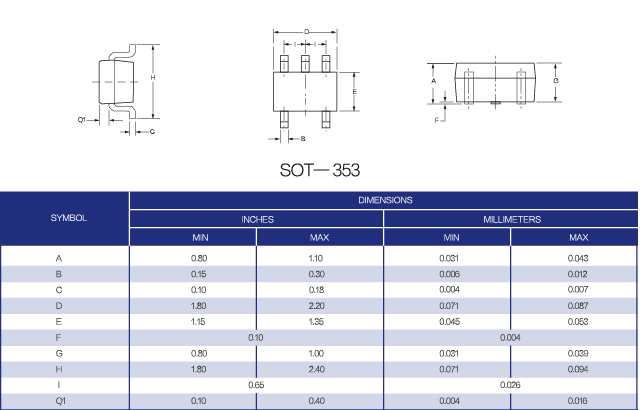

Package
Dimensions
ESDULC5V-4K5Dimensions
View
ESDULC5V-4K5Dimensions
View
ESD Protection Diodes

ESDULC5V-4K5

new

Designed with fast response time, low clamping voltage and stable capacitance to ensure signal integrity in USB, antenna lines and high speed data ports.

DATA SHEETDATA SHEET SAMPLE

Product details

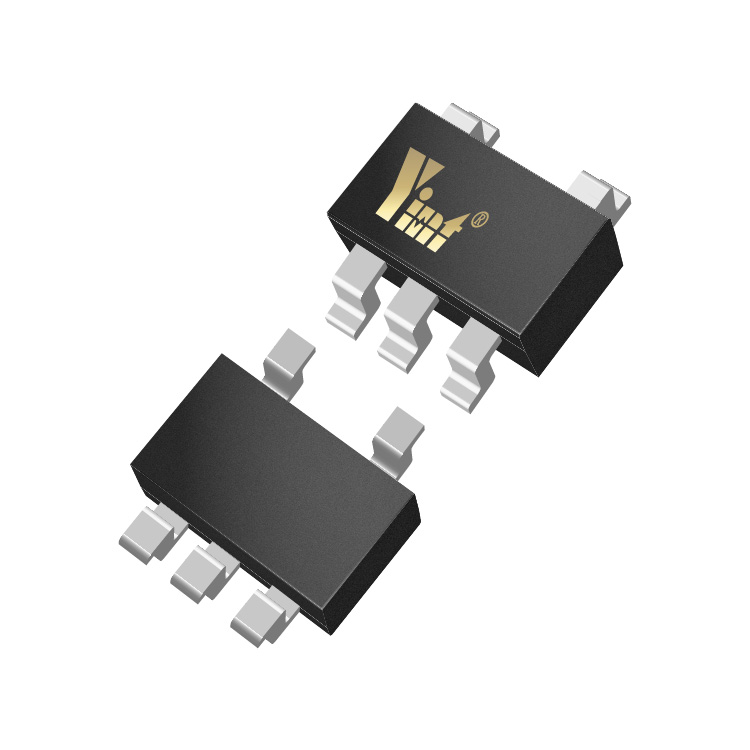

Package
SOT363
Bi-/uni-directional
UNI
Channel
4
Vrwm (V)
5.00
Vbr[min](V)
6.00
Vbr[max](V)
-
Ppk(W)
100.00
Ipp(A)
5.00
Vc@lpp [Max](V)
20.00
IR@Vrwm(μA)
0.50
@ iT (mA)
1.00
IEC 61000−4−2 VESD(Air)
15KV
IEC 61000−4−2 VESD(Contact)
8KV
C(max)(pF)
0.00
AEC-Q101 Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
SOT-363
Unit Weight
Packing Information
tape packaging：3000 pieces/roll
