Overview Specifications Package Information Related Products
Package

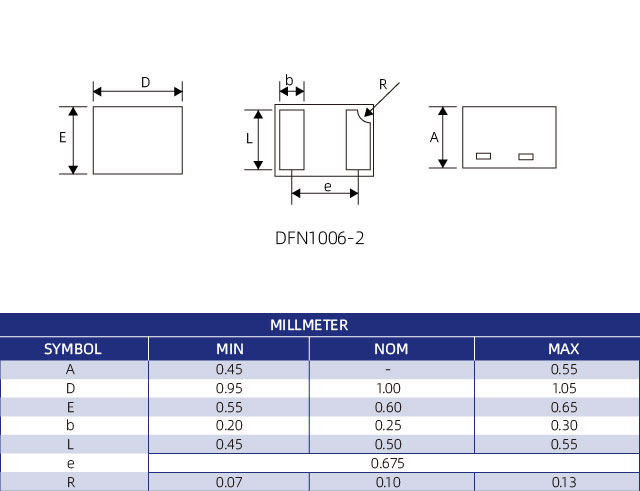

Dimensions
NRESDTLC5V0D8BDimensions
View
NRESDTLC5V0D8BDimensions
View
ESD Protection Diodes

NRESDTLC5V0D8B

new

NRESDTLC5V0D8B features extremely low junction capacitance, low clamping voltage and high surge capability, making it ideal for USB, HDMI, DisplayPort and mobile device high speed signal protection.

DATA SHEETDATA SHEET SAMPLE

Product details

Package
DFN1006
Bi-/uni-directional
BI
Channel
Vrwm (V)
5.00
Vbr[min](V)
6.50
Vbr[max](V)
9.00
Ppk(W)
-
Ipp(A)
5.00
Vc@lpp [Max](V)
8.00
IR@Vrwm(μA)
0.10
@ iT (mA)
1.00
IEC 61000−4−2 VESD(Air)
30KV
IEC 61000−4−2 VESD(Contact)
30KV
C(max)(pF)
0.15
AEC-Q101 Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
DFN1006-2L
Unit Weight
Packing Information
tape packaging：10000 pieces/roll

Related Products

Part Number
Category
Package Type
Status
Datasheet
SMF5.0A
TVS Diodes
SOD123FL
Active
Download
SMF6.5A
TVS Diodes
SOD123FL
Active
Download
SMF7.5A
TVS Diodes
SOD123FL
Active
Download
SMF8.5A
TVS Diodes
SOD123FL
Active
Download
SMF15A
TVS Diodes
SOD123FL
Active
Download
SMF45A
TVS Diodes
SOD123FL
Active
Download
SMF75A
TVS Diodes
SOD123FL
Active
Download
SMF85A
TVS Diodes
SOD123FL
Active
Download
P4SMF5.0A
TVS Diodes
SOD123FL
Active
Download
P4SMF6.5A
TVS Diodes
SOD123FL
Active
Download
