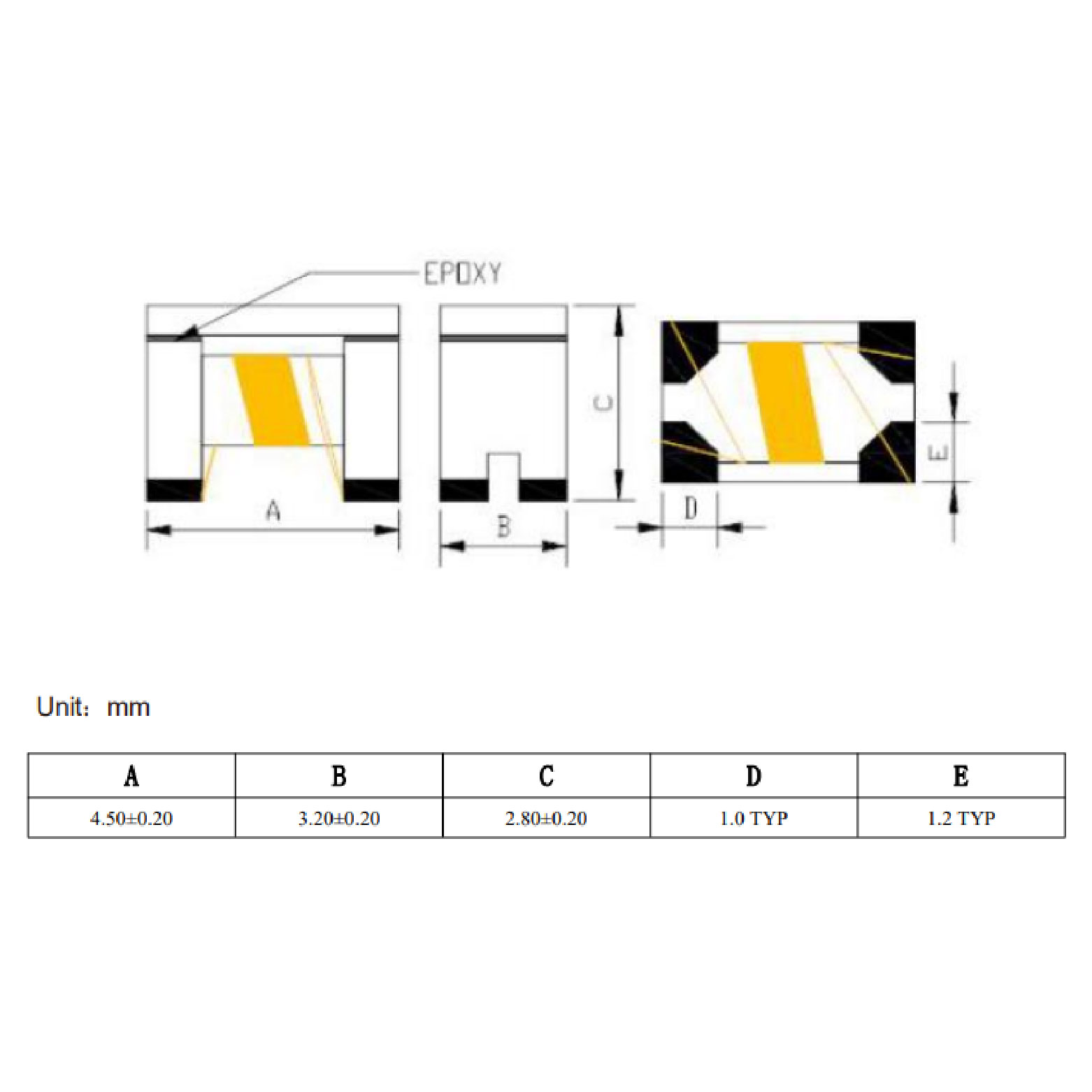

CMZ4532A-800TDimensions
View
CMZ4532A-800TDimensions
View
Common Mode Choke

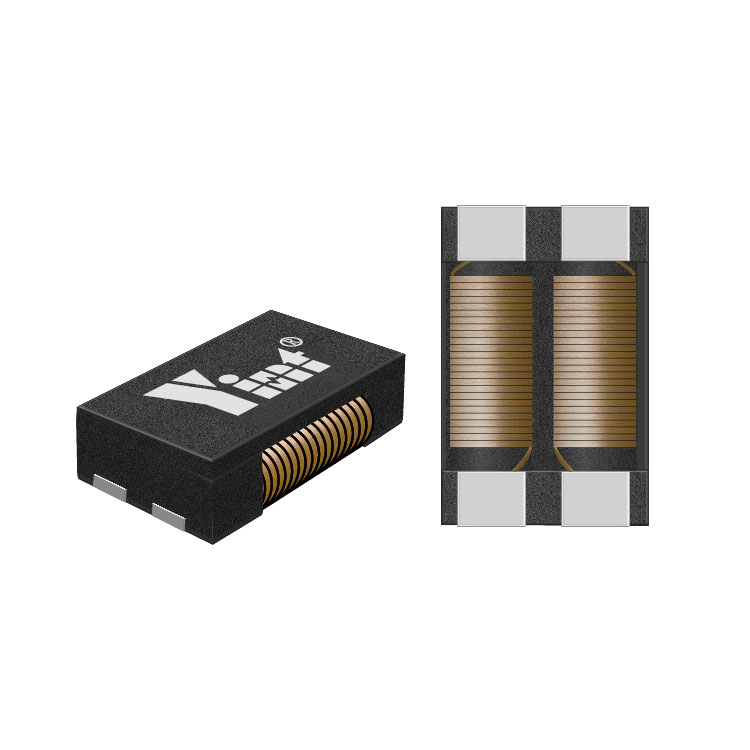

CMZ4532A-800T

The CMZ4532A-800T supports up to 2.5A rated current while providing stable EMI suppression in high-speed interfaces, power signal lines, and industrial electronics requiring low impedance noise control.

DATA SHEETDATA SHEET SAMPLE

Product details

Type
Signal Line
Size（mm）
4532.00
Z(Ω)@100MHZ[Min]
Z(Ω)@100MHZ[Typ]
80.00
DCR[Max](mΩ)
50.00
IR[Min](MΩ)
10.00
Rated Voltage(V)
50.00
Irms [Max](A)
2.50

Package Information

Mounting Type
patch
Package Type
4532
Unit Weight
Packing Information
tape packaging：2000 pieces/盘
