Overview Specifications Package Information Related Products
Package

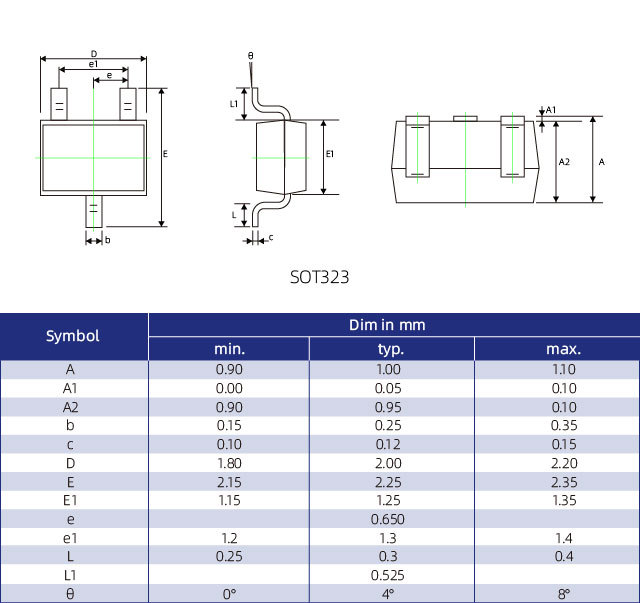

Dimensions
ESD13V5T3BDimensions
View
ESD13V5T3BDimensions
View
ESD Protection Diodes

ESD13V5T3B

new

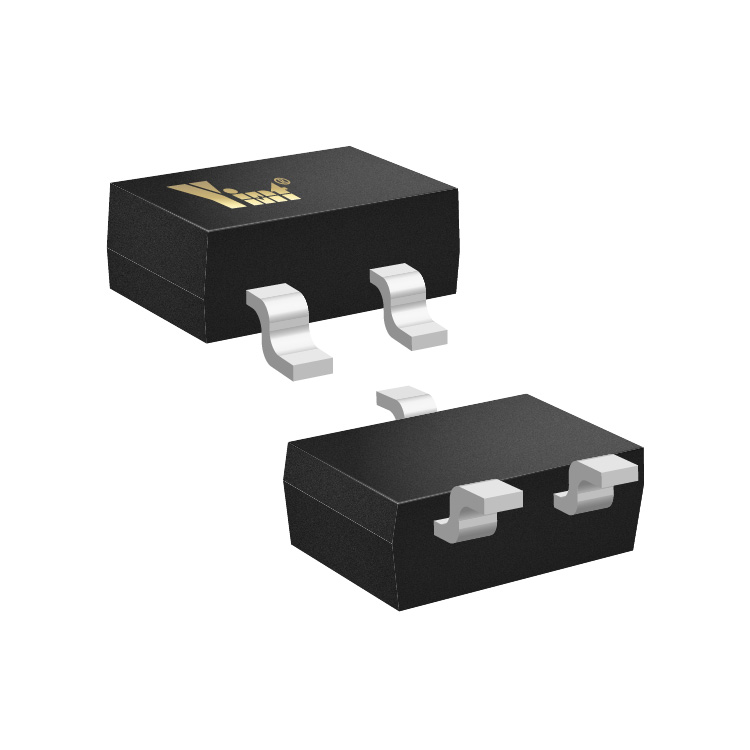

ESD13V5T3B features ultra low leakage current, low clamping voltage and fast transient response to effectively suppress ESD and surge events while maintaining stable signal integrity. Its compact SOT-323 package and robust surge handling make it ideal for portable electronics, industrial interfaces, power monitoring lines and communication signal protection.

DATA SHEETDATA SHEET SAMPLE

Product details

Package
SOT323
Bi-/uni-directional
BI
Channel
2
Vrwm (V)
13.50
Vbr[min](V)
14.00
Vbr[max](V)
-
Ppk(W)
-
Ipp(A)
7.00
Vc@lpp [Max](V)
18.00
IR@Vrwm(μA)
0.20
@ iT (mA)
1.00
IEC 61000−4−2 VESD(Air)
30KV
IEC 61000−4−2 VESD(Contact)
30KV
C(max)(pF)
15.00
AEC-Q101 Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
SOT323
Unit Weight
Packing Information
tape packaging：3000 pieces/roll
