Headlight HB/LB LED Driver Module

High/Low beam (HB/LB) LED driver modules are core components of automotive lighting safety, providing stable illumination across road conditions. These modules face electrical stresses including transient surges from load switching, overvoltage from supply fluctuations, electrostatic discharge (ESD) at connector interfaces, and conducted electromagnetic interference (EMI) along harnesses and control lines. YINT Electronics’ protection solution integrates high-power TVS transient suppressors, ultra-low capacitance ESD protection arrays and zener diodes for voltage regulation and clamping, ensuring load transient absorption, overvoltage protection and noise suppression for reliable, bright and stable headlight operation.

Block diagram

Find products and reference designs for your system.

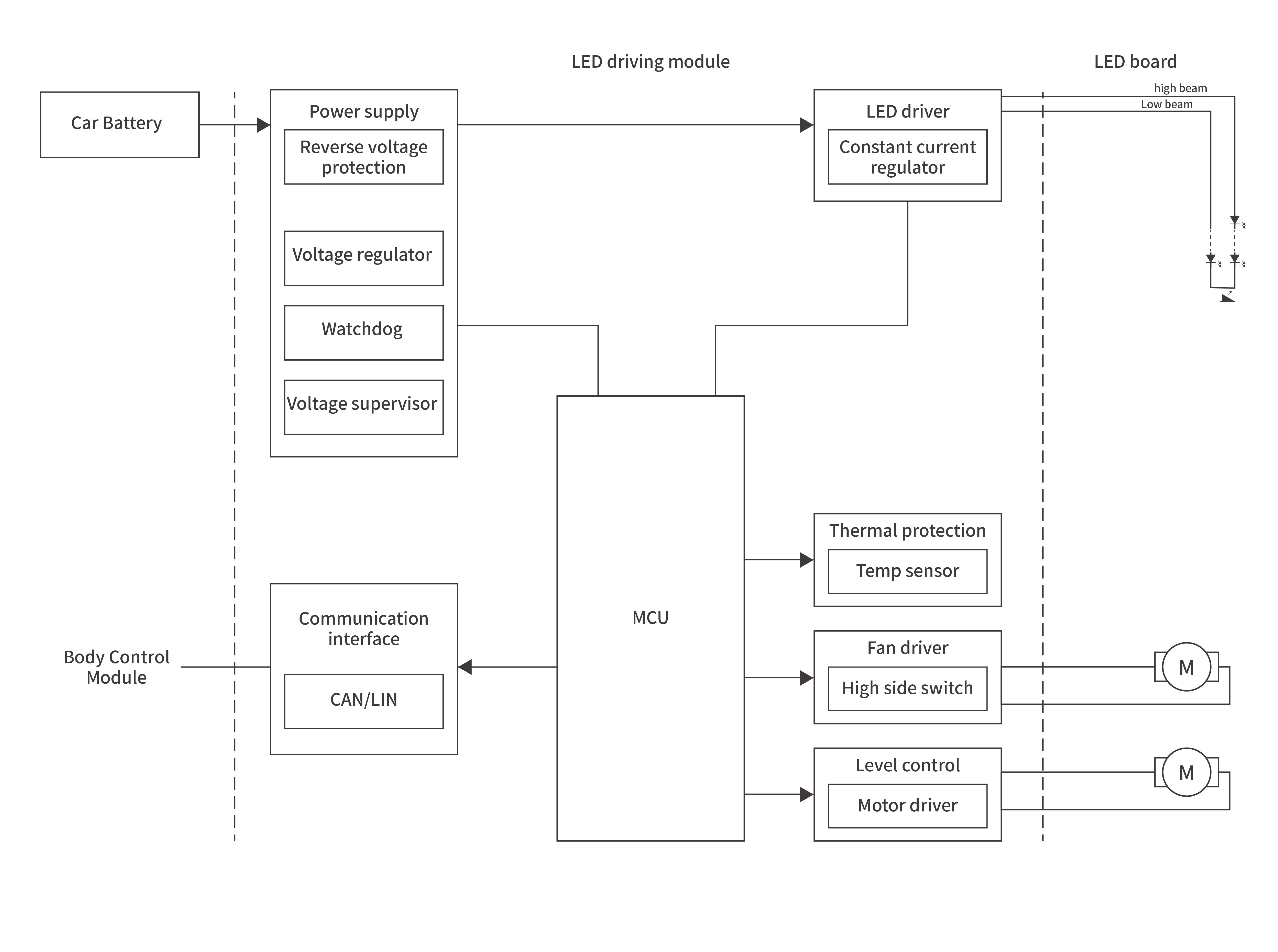

Headlight HB/LB LED Driver ModuleBlock diagram

Products

Reference designs

Tvs 瞬态抑制二极管 (1)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

Sbr 肖特基二极管 (1)

Tvs 瞬态抑制二极管 (3)

SMF3.3CA

-- Bidirectional TVS diode suppressing transient surges on 3.3V power and signal lines.

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

Zd 稳压二极管 (2)

Tvs 瞬态抑制二极管 (1)

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

Esd 静电保护元件 (1)

Tvs 瞬态抑制二极管 (2)

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection

Esd 静电保护元件 (2)

ESD1524D3LIN

-- 15V/24V working voltage asymmetric TVS diode optimized for LIN communication protection

ESD24VAPB

-- 24V bidirectional TVS array, VBR 25.5–29.5V, clamping 31–35V @1A / 40–50V @10A, 30–50pF, AEC-Q101

Tvs 瞬态抑制二极管 (1)

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

Zd 稳压二极管 (1)

Tvs 瞬态抑制二极管 (2)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection

Sbr 肖特基二极管 (1)

Tvs 瞬态抑制二极管 (1)

SMF3.3CA

-- Bidirectional TVS diode suppressing transient surges on 3.3V power and signal lines.

Esd 静电保护元件 (1)

Tvs 瞬态抑制二极管 (1)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

Tvs 瞬态抑制二极管 (2)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection
