Zone control module

Automotive zone control modules integrate multiple sensor and actuator functions within specific physical regions of a vehicle, acting as localized distributed electronics hubs. These modules are exposed to transient overvoltage from load switching, electrostatic discharge from harness interfaces, and conducted/radiated electromagnetic interference within complex automotive electrical environments. YINT Electronics’ protection solution deploys high-performance TVS transient suppressors to clamp surges, ESD protection arrays to safeguard multi-line interfaces, and zener diodes for voltage clamping and rail stabilization. This multi-layered protection enhances system reliability, reduces wiring complexity, and improves fault isolation for advanced automotive distributed electronics.

Block diagram

Find products and reference designs for your system.

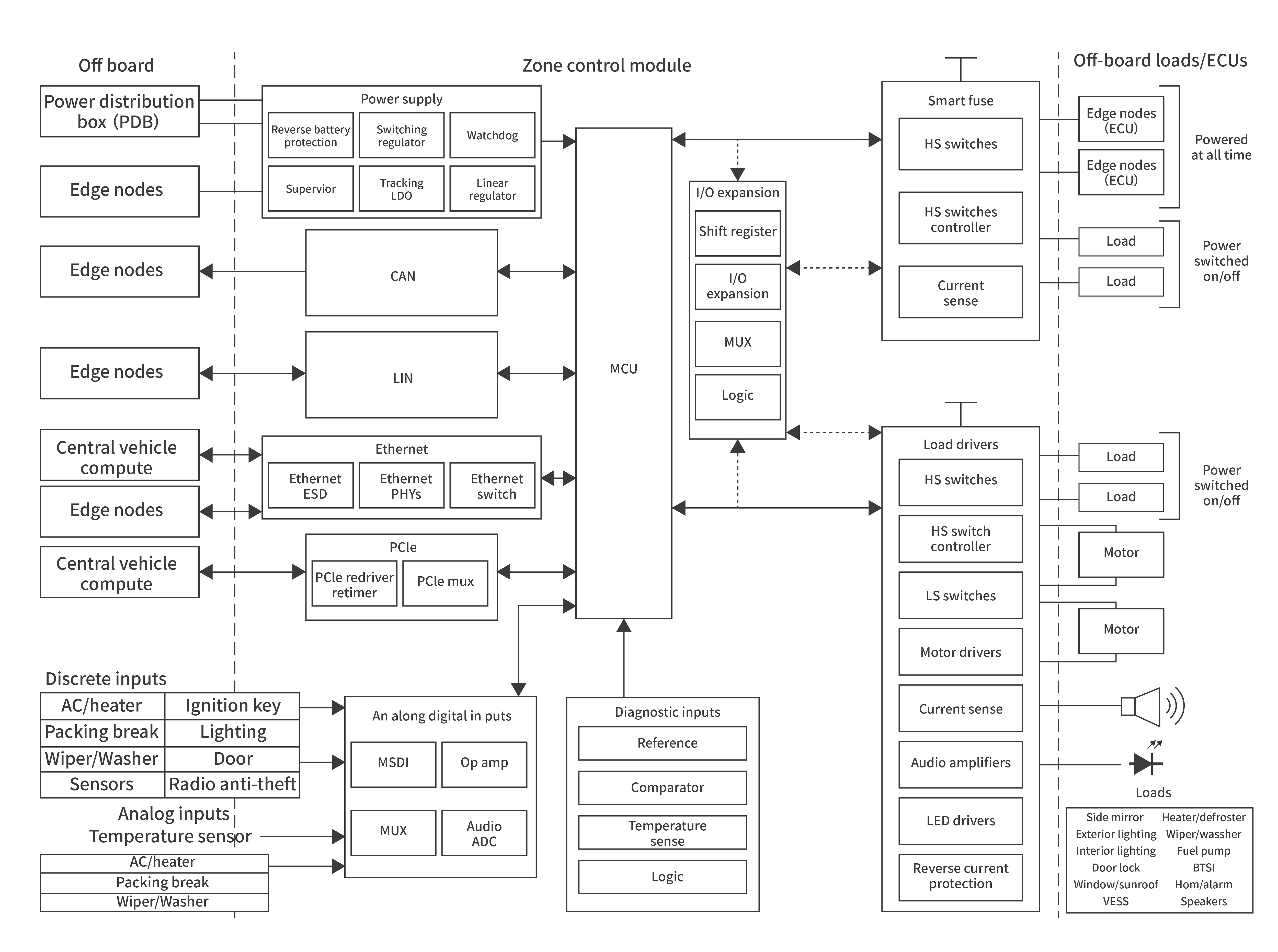

Zone control moduleBlock diagram

Products

Reference designs

这里输入产品id 格式：{switch} (5)

Tvs 瞬态抑制二极管 (2)

SMBJ5.0CA-H

-- SMBJ5.0CA-H, bidirectional TVS diode, VR=5.0V, VBR≈5.6–6.2V, VC≈9.2V, 600W, AEC-Q101.

SMBJ15CA-H

-- SMBJ15CA-H, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W, AEC-Q101.

Zd 稳压二极管 (1)

Tvs 瞬态抑制二极管 (1)

SMBJ5.0CA-H

-- SMBJ5.0CA-H, bidirectional TVS diode, VR=5.0V, VBR≈5.6–6.2V, VC≈9.2V, 600W, AEC-Q101.

Esd 静电保护元件 (1)

Tvs 瞬态抑制二极管 (1)

SMBJ5.0CA-H

-- SMBJ5.0CA-H, bidirectional TVS diode, VR=5.0V, VBR≈5.6–6.2V, VC≈9.2V, 600W, AEC-Q101.

Esd 静电保护元件 (1)

Tvs 瞬态抑制二极管 (2)

SMF3.3CA

-- Bidirectional TVS diode suppressing transient surges on 3.3V power and signal lines.

SMBJ15CA-H

-- SMBJ15CA-H, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W, AEC-Q101.

Zd 稳压二极管 (1)

Esd 静电保护元件 (1)

ESD24VAPB

-- 24V bidirectional TVS array, VBR 25.5–29.5V, clamping 31–35V @1A / 40–50V @10A, 30–50pF, AEC-Q101

Esd 静电保护元件 (1)

ESD24VAPB

-- 24V bidirectional TVS array, VBR 25.5–29.5V, clamping 31–35V @1A / 40–50V @10A, 30–50pF, AEC-Q101

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

ESDLC5V0D3B

-- Low capacitance TVS diode array rated at 5V for high speed signal protection

Esd 静电保护元件 (1)

ESD3V3APB

-- TVS diode array protects multiple 3.3V signal lines from ESD and surge events.

Tvs 瞬态抑制二极管 (1)

Esd 静电保护元件 (1)

ESD3V3APB

-- TVS diode array protects multiple 3.3V signal lines from ESD and surge events.

Tvs 瞬态抑制二极管 (1)

Esd 静电保护元件 (1)

ESD3V3APB

-- TVS diode array protects multiple 3.3V signal lines from ESD and surge events.

Tvs 瞬态抑制二极管 (1)

Zd 稳压二极管 (1)

YAZ1D3V3

-- 3.3V nominal zener voltage, 1W power dissipation in SMAG package for voltage regulation and protection.

Esd 静电保护元件 (1)

ESD3V3APB

-- TVS diode array protects multiple 3.3V signal lines from ESD and surge events.

Tvs 瞬态抑制二极管 (1)

Esd 静电保护元件 (1)

ESD5V0APB

-- 5V working voltage, high surge current TVS array with enhanced clamping performance for rugged interface protection

Sbr 肖特基二极管 (1)

Esd 静电保护元件 (1)

ESD5V0APB

-- 5V working voltage, high surge current TVS array with enhanced clamping performance for rugged interface protection

Tvs 瞬态抑制二极管 (1)

Esd 静电保护元件 (1)

ESDLC3V3D3B

-- 3.3V single-line ultra low capacitance ESD diode in SOD-323 package for low voltage signal protection

Esd 静电保护元件 (1)

ESDLC5V0D3B

-- Low capacitance TVS diode array rated at 5V for high speed signal protection

Sbr 肖特基二极管 (1)

Tvs 瞬态抑制二极管 (1)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

Esd 静电保护元件 (1)

ESDLC5V0D3B

-- Low capacitance TVS diode array rated at 5V for high speed signal protection

Sbr 肖特基二极管 (1)

Tvs 瞬态抑制二极管 (1)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

Esd 静电保护元件 (1)

ESDLC5V0D3B

-- Low capacitance TVS diode array rated at 5V for high speed signal protection

Sbr 肖特基二极管 (1)
