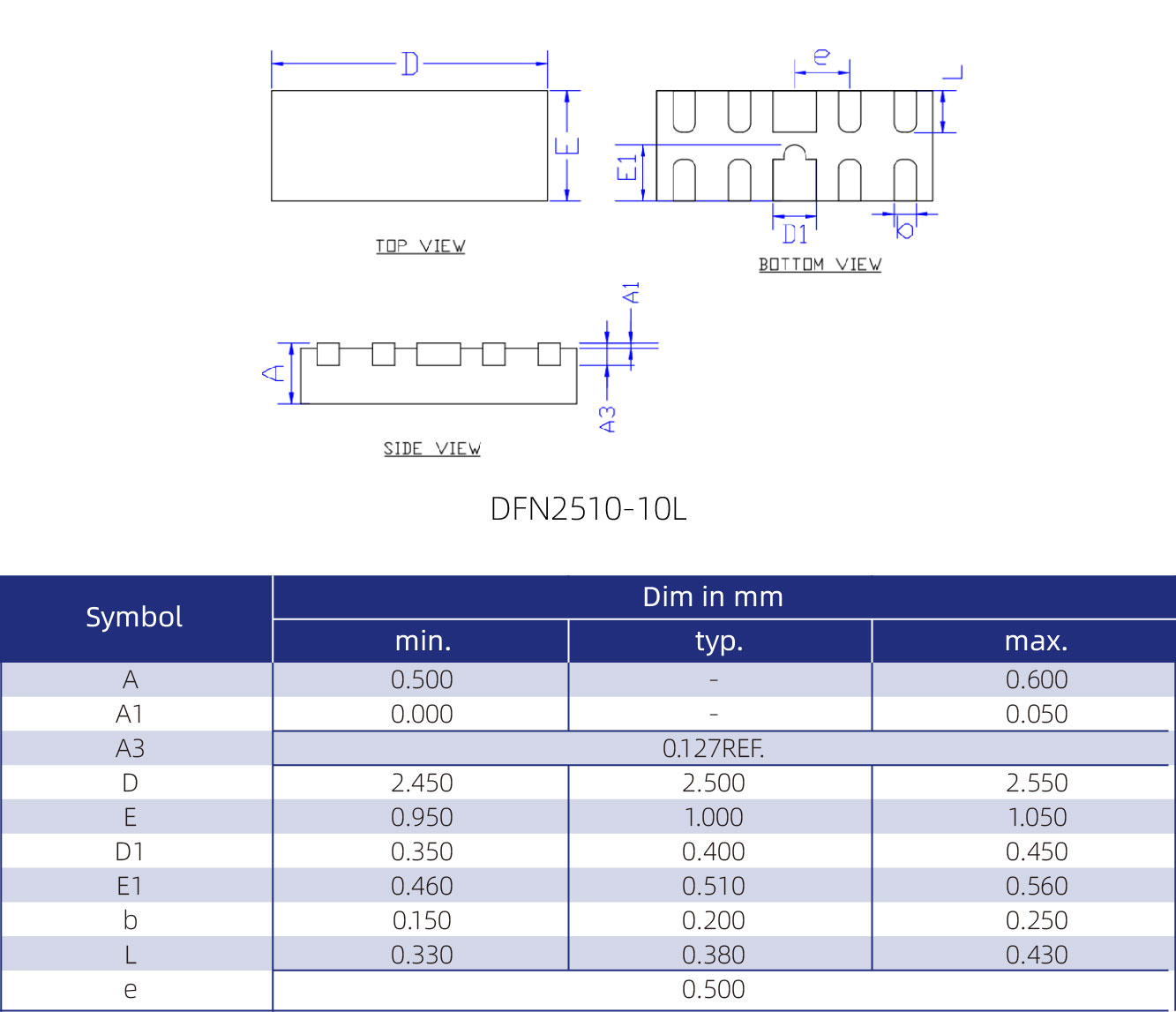

Dimensions

View

ESD Protection Diodes

ESD0524P

new

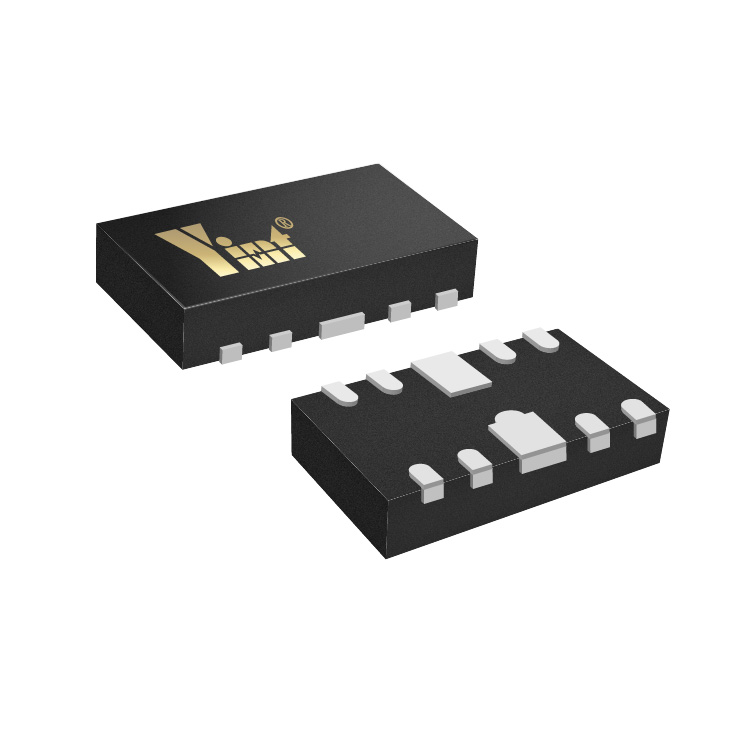

ESD0524P integrates surge rated steering diodes and a central TVS clamp structure to provide fast transient current steering and low voltage clamping. Its ultra low junction capacitance preserves signal integrity in HDMI, DisplayPort, PCIe, USB 3.0 and high frequency data transmission lines while offering robust ESD and lightning surge immunity.

DATA SHEET

SAMPLE

Product details

Package

DFN2510-10L

Bi-/uni-directional

Channel

Vrwm (V)

5.00

Vbr[min](V)

6.00

Vbr[max](V)

7.00

Ppk(W)

150.00

Ipp(A)

5.00

Vc@lpp [Max](V)

12.00

IR@Vrwm(μA)

0.03

@ iT (mA)

1.00

IEC 61000−4−2 VESD(Air)

15KV

IEC 61000−4−2 VESD(Contact)

12KV

C(max)(pF)

AEC-Q101 Qualified

Status

Active

Package Information

Mounting Type

patch

Package Type

Unit Weight

DFN2510-10L

Packing Information

tape packaging：3000 pieces/roll

Related Products

Part Number
