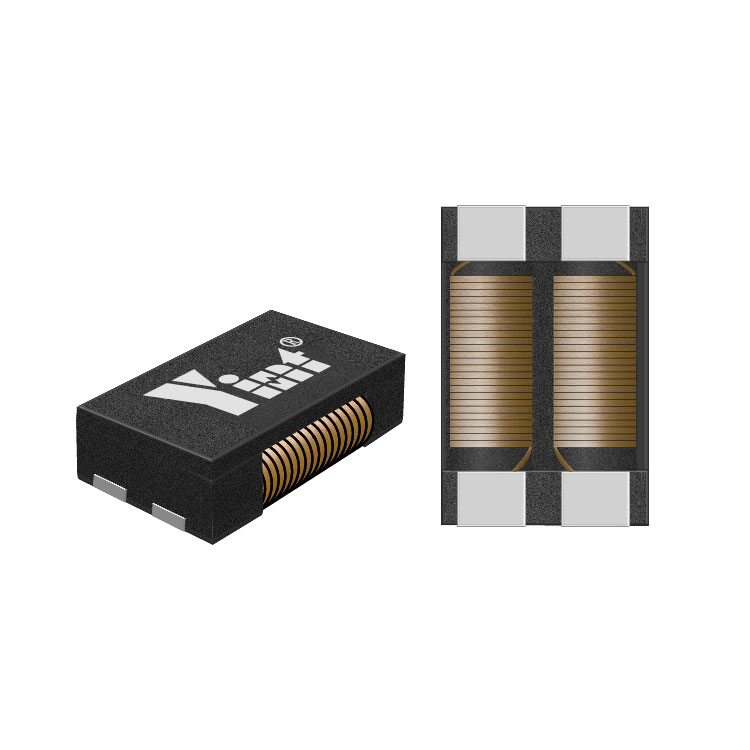

Common Mode Choke

CMZ3216A-102T

The CMZ3216A-102T provides strong common mode noise attenuation with 1000Ω impedance at 100MHz and 0.23A rated current, supporting stable EMI control for USB, HDMI, and industrial signal transmission lines.

DATA SHEETDATA SHEET SAMPLE

Product details

Type
Signal Line
Size（mm）
3216.00
Z(Ω)@100MHZ[Min]
Z(Ω)@100MHZ[Typ]
1000.00
DCR[Max](mΩ)
1000.00
IR[Min](MΩ)
10.00
Rated Voltage(V)
50.00
Irms [Max](A)
0.23

Package Information

Mounting Type
patch
Package Type
3216
Unit Weight
Packing Information
tape packaging：2000 pieces/盘
