ESD Protection Diodes
TVS Diodes ESD Protection Diodes Resettable Fuses Thyristor Surge Suppressor Gas Discharge Tubes Schottky Barrier Diodes Varistors NTC thermistors eFuse
Overview Specifications Package Information Related Products

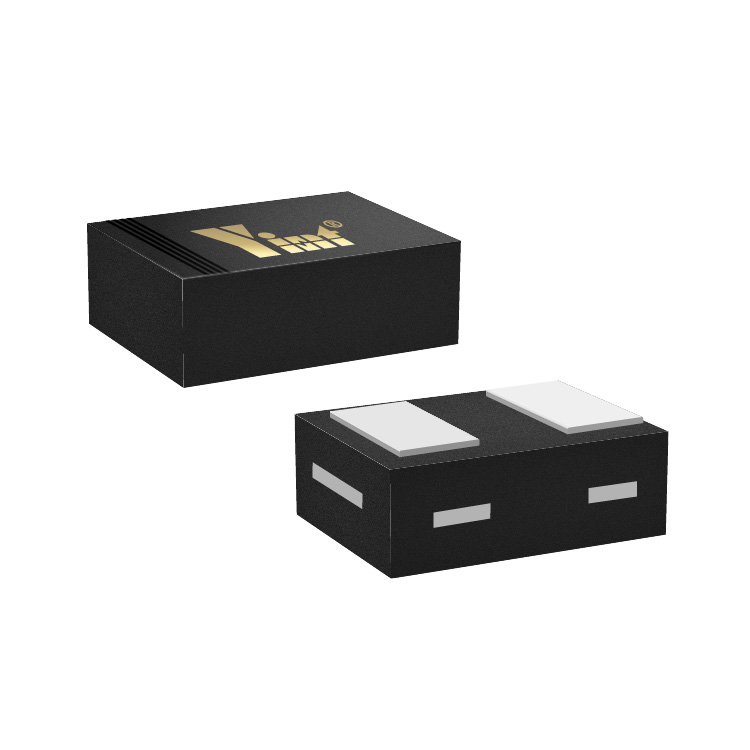

Package

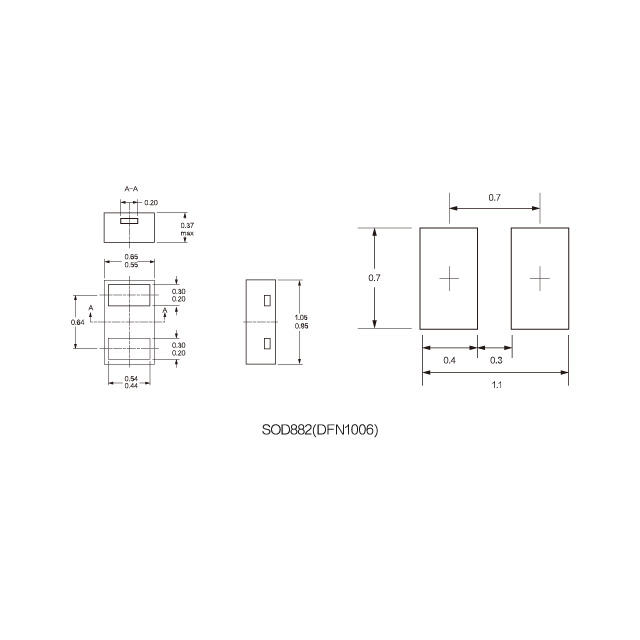

Dimensions
ESDLC5V0D8BDimensions
View
ESDLC5V0D8BDimensions
View
ESD Protection Diodes

ESDLC5V0D8B

new

ESDLC5V0D8B combines low capacitance, fast response and stable clamping performance to protect high speed signal lines in mobile devices, cameras and power interfaces.

DATA SHEETDATA SHEET SAMPLE

Product details

Package
DFN1006
Bi-/uni-directional
BI
Channel
2
Vrwm (V)
5.00
Vbr[min](V)
5.60
Vbr[max](V)
9.50
Ppk(W)
40.00
Ipp(A)
3.50
Vc@lpp [Max](V)
13.00
IR@Vrwm(μA)
0.10
@ iT (mA)
1.00
IEC 61000−4−2 VESD(Air)
25KV
IEC 61000−4−2 VESD(Contact)
20KV
C(max)(pF)
4.00
AEC-Q101 Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
DFN1006
Unit Weight
Packing Information
tape packaging：10000 pieces/roll
