Products
Package

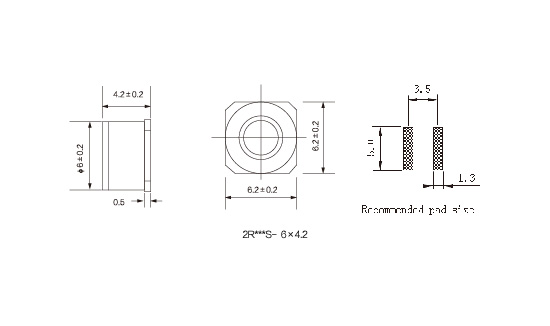

Dimensions
Gas Discharge Tubes

2R1000S-6×4.2

The 2R1000S-6×4.2 is a compact SMD gas discharge tube optimized for high-voltage surge environments. With a 1000V DC breakdown rating, controlled spark-over behavior and ultra-low capacitance, it provides reliable primary protection for telecom and power interfaces where space is limited.

Product details

Package
SMD
DC Breakdown Voltage (100V/s V)
1000.00
Toleranceof Vs
±20%
Impulse Spark-over Voltage 1KV/μs (V)
1800.00
Impulse Discharge Current 10hits 8/20μs(KA)
3.00
Capacitance 1MHz (pF)
1.00
Status
Active

Package Information

Mounting Type
plugin
Package Type
6×4.2mm
Unit Weight
Packing Information
盘带包装:3000 pieces/盘
