Schottky Barrier Diodes
TVS Diodes ESD Protection Diodes Resettable Fuses Thyristor Surge Suppressor Gas Discharge Tubes Schottky Barrier Diodes Varistors NTC thermistors eFuse
Overview Specifications Package Information Related Products
Package

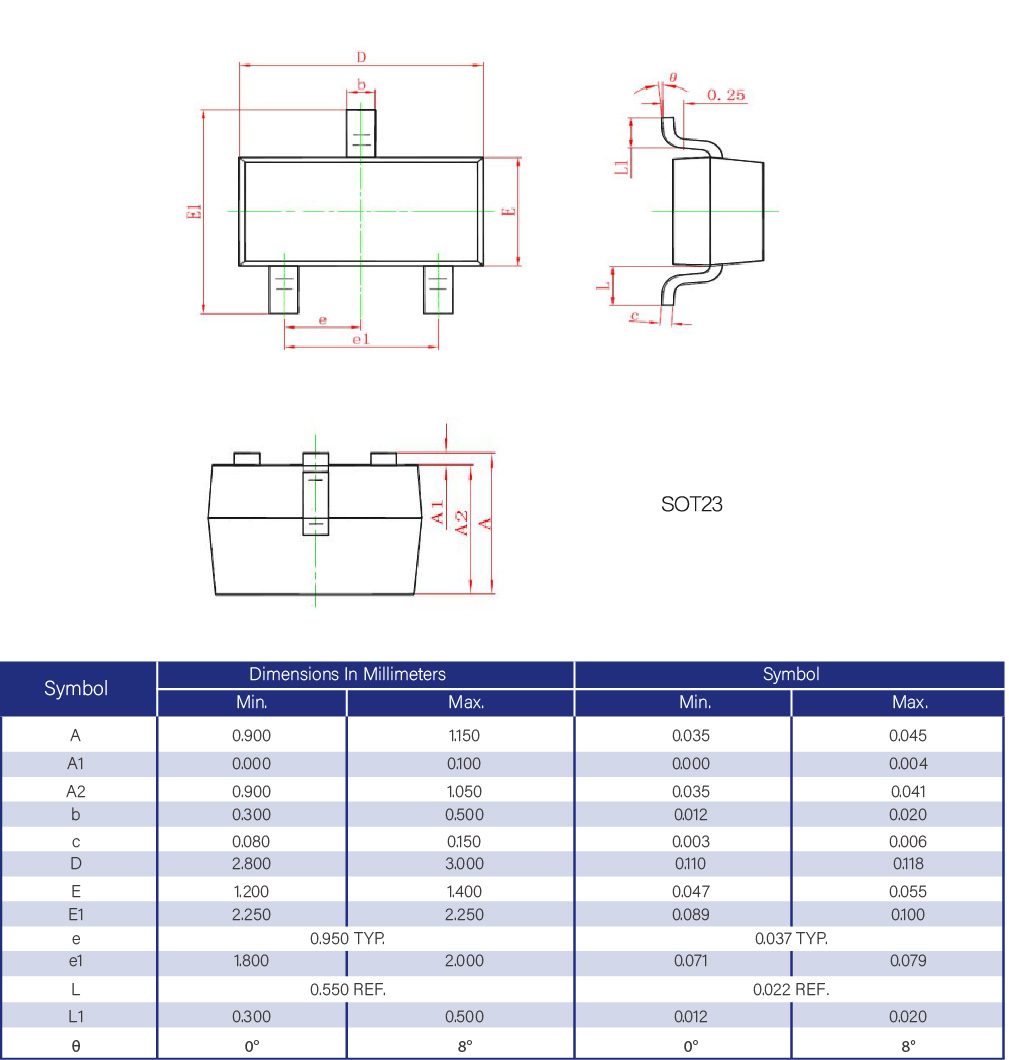

Dimensions
BAT54CDimensions
View
BAT54CDimensions
View
Schottky Barrier Diodes

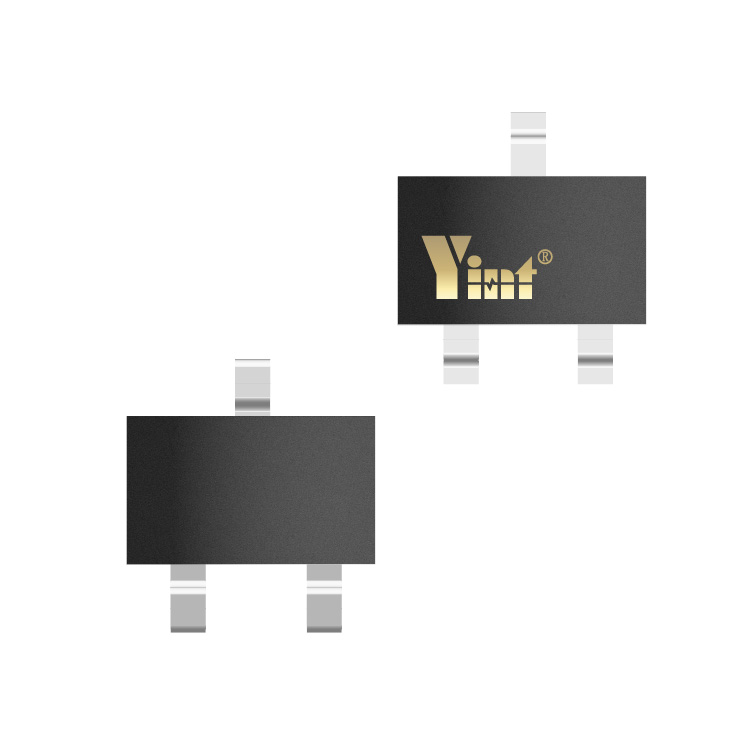

BAT54C

BAT54C features a common-cathode configuration with VRRM 30V and IF 200mA, offering low forward voltage drop, 5ns recovery time and 10pF junction capacitance for signal clamping and OR-ing applications.

DATA SHEETDATA SHEET SAMPLE

Product details

Package
SOT23
VRRM(V)
30.00
IF(A)
0.00
IR[Max](mA)Tj=25℃
2.00
IR [Max](mA)Tj=100℃
VF[Max](V)
400.00
TJ(℃)
-50 to 150
Status
Active

Package Information

Mounting Type
patch
Package Type
SOT23
Unit Weight
Packing Information
tape packaging：3000 pieces/盘
