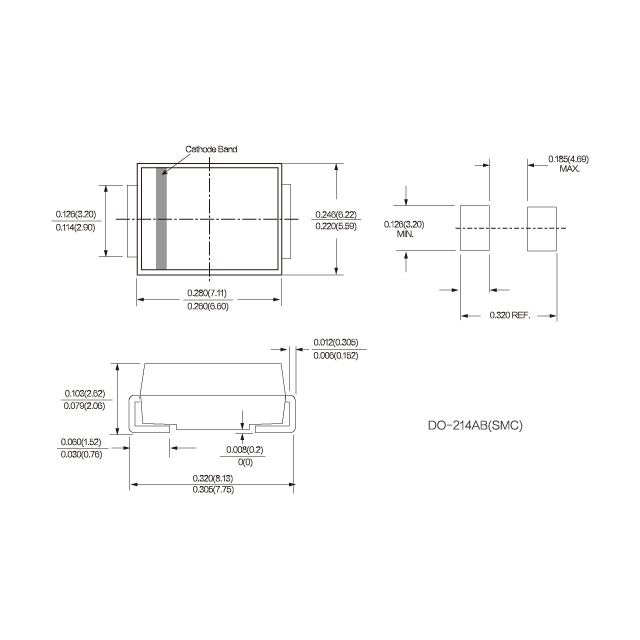

SMDJ40CADimensions
View
SMDJ40CADimensions
View
TVS Diodes

SMDJ40CA

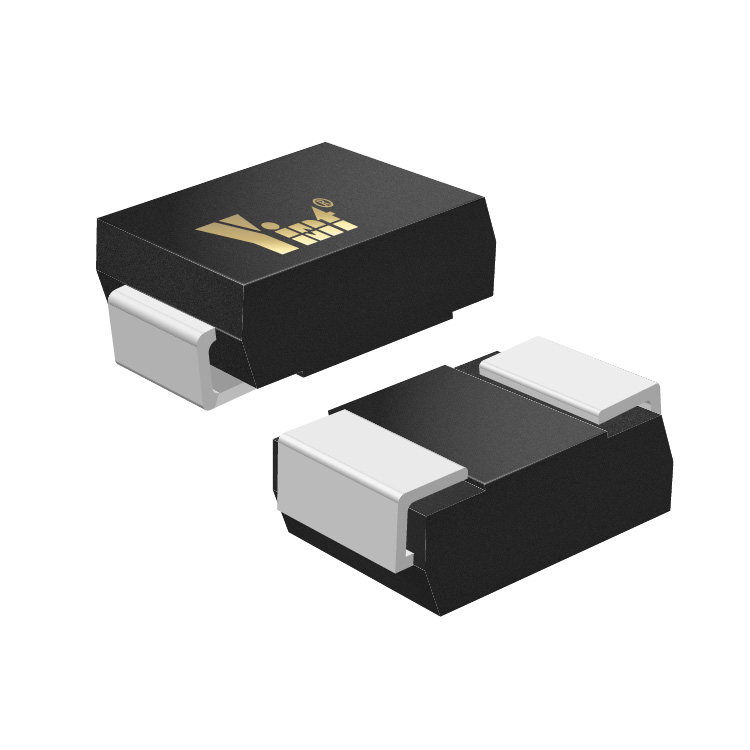

SMDJ40CA is a high-power bidirectional TVS diode designed to protect 40V AC/DC lines from destructive transient overvoltages. Rated at 3000W peak pulse power, it provides fast symmetrical clamping to enhance system immunity. The DO-214AB (SMC) package supports compact and rugged industrial surge protection.

DATA SHEETDATA SHEET SAMPLE

Product details

Package
SMC
Bi-/uni-directional
Bi-directional
Marking
DFR
PPK(W)
3000
Vrwm (V)
40.00
Vbr[min](V)
44.40
Vbr[max](V)
49.10
Ipp(A)
46.50
Vc@lpp [Max](V)
64.50
IR@Vrwm(μA)
2.00
@ iT (mA)
1.00
Tj(℃)
-55～+150
AEC-Q101Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
DO-214AB(SMC)
Unit Weight
0.38
Packing Information
tape packaging：2500 pieces/roll
