Products
Home
Products
EMI Products
EMS Products EMI Products Sensors Power Devices Surge Protective Device
Common Mode Choke
Common Mode Choke Power Inductors Ferrite Beads Common-mode Chokes for CAN FD
Overview Specifications Package Information Related Products
Package

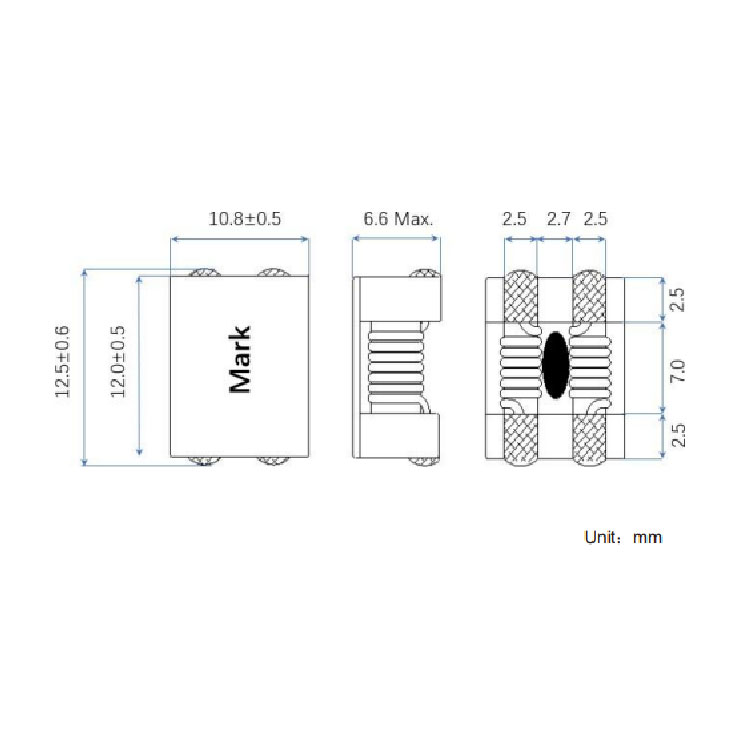

Dimensions
CMZ1211A-501TDimensions
View
CMZ1211A-501TDimensions
View
Common Mode Choke

CMZ1211A-501T

The CMZ1211A-501T offers balanced EMI attenuation with 300Ω minimum and 500Ω typical impedance at 100MHz while supporting 8A current handling, making it suitable for compact power modules and industrial electronics.

DATA SHEETDATA SHEET SAMPLE

Product details

Type
Power Line
Size（mm）
1211.00
Z(Ω)@100MHZ[Min]
500.00
Z(Ω)@100MHZ[Typ]
300.00
DCR[Max](mΩ)
5.50
IR[Min](MΩ)
10.00
Rated Voltage(V)
125.00
Irms [Max](A)
8.00

Package Information

Mounting Type
patch
Package Type
1211
Unit Weight
Packing Information
tape packaging：2000 pieces/盘

Related Products

Part Number
Category
Package Type
Status
Datasheet
CMZ4520A-151T
Common Mode Choke
Download
CMZ4520A-501T
Common Mode Choke
Download
CMZ5050A-501T
Common Mode Choke
Download
CMZ7060A-601T
Common Mode Choke
Download
CMZ7060A-102T
Common Mode Choke
Download
CMZ9070A-501T
Common Mode Choke
Download
CMZ1211A-800T
Common Mode Choke
Download
CMZ1211A-501T
Common Mode Choke
Download
CMZ1211A-102T
Common Mode Choke
Download
CMZ1211A-222T
Common Mode Choke
Download
