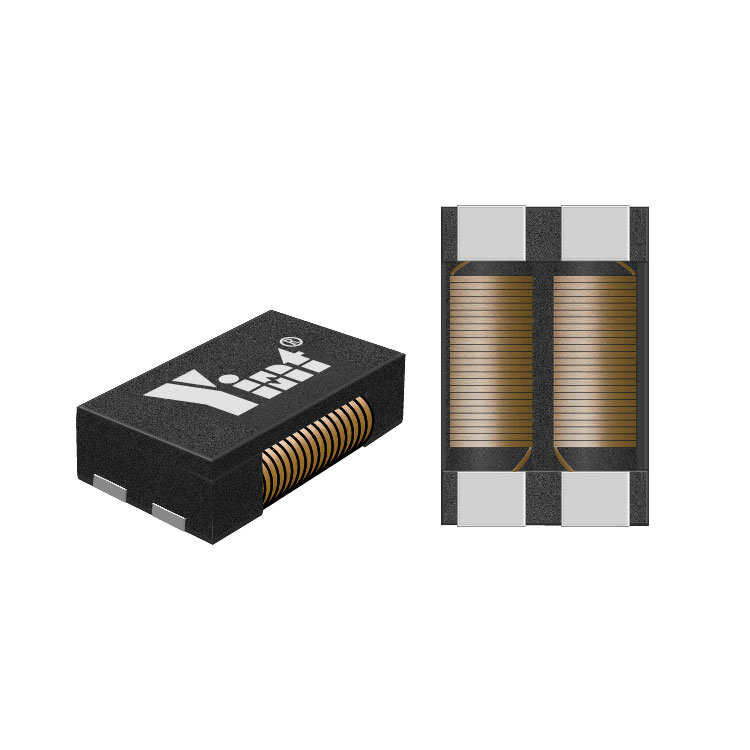

Common Mode Choke

CMZ3216A-261T

The CMZ3216A-261T supports 0.31A current handling and reduces EMI emissions in USB ports, HDMI links, and high-speed digital circuits while preserving signal integrity.

DATA SHEETDATA SHEET SAMPLE

Product details

Type
Signal Line
Size（mm）
3216.00
Z(Ω)@100MHZ[Min]
Z(Ω)@100MHZ[Typ]
260.00
DCR[Max](mΩ)
500.00
IR[Min](MΩ)
10.00
Rated Voltage(V)
50.00
Irms [Max](A)
0.31

Package Information

Mounting Type
patch
Package Type
3216
Unit Weight
Packing Information
tape packaging：2000 pieces/盘

Related Products

Part Number
Category
Package Type
Status
Datasheet
CMZ2012A-221T
Common Mode Choke
Download
CMZ2012A-261T
Common Mode Choke
Download
CMZ2012A-501T
Common Mode Choke
Download
CMZ2012A-801T
Common Mode Choke
Download
CMZ3216A-261T
Common Mode Choke
Download
CMZ3225A-900T
Common Mode Choke
Download
CMZ3225A-501T
Common Mode Choke
Download
CMZ3225A-102T
Common Mode Choke
Download
CMZ4532A-800T
Common Mode Choke
Download
CMZ4532A-361T
Common Mode Choke
Download
