Overview Specifications Package Information Related Products
Package

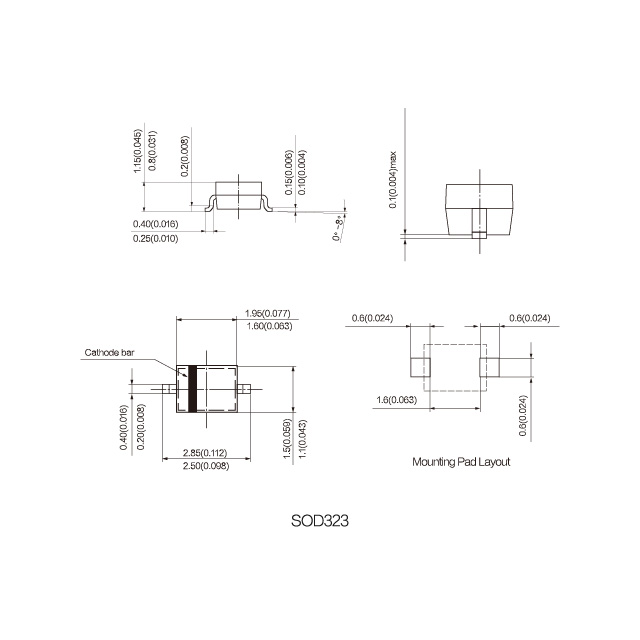

Dimensions
ESDLC24VD3Dimensions
View
ESDLC24VD3Dimensions
View
ESD Protection Diodes

ESDLC24VD3

new

ESDLC24VD3 combines fast transient response and low parasitic capacitance to protect high-voltage signal paths while preserving waveform quality in compact electronic designs.

DATA SHEETDATA SHEET SAMPLE

Product details

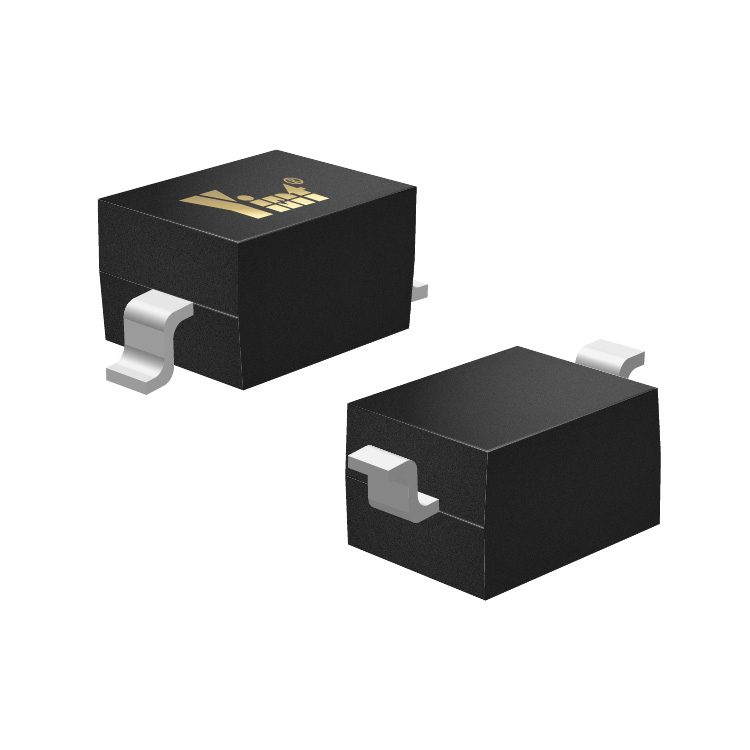

Package
SOD323
Bi-/uni-directional
UNI
Channel
1
Vrwm (V)
24.00
Vbr[min](V)
26.70
Vbr[max](V)
-
Ppk(W)
350.00
Ipp(A)
3.00
Vc@lpp [Max](V)
56.00
IR@Vrwm(μA)
-
@ iT (mA)
1.00
IEC 61000−4−2 VESD(Air)
15KV
IEC 61000−4−2 VESD(Contact)
8KV
C(max)(pF)
0.40
AEC-Q101 Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
SOD323
Unit Weight
0.035
Packing Information
tape packaging：3000 pieces/roll

Related Products

Part Number
Category
Package Type
Status
Datasheet
ESD8V0D3B
ESD Protection Diodes
SOD323
Active
Download
ESDLC3V3D3
ESD Protection Diodes
SOD323
Active
Download
ESDLC12VD3B
ESD Protection Diodes
SOD323
Active
Download
ESDLC15VD3B
ESD Protection Diodes
SOD323
Active
Download
ESDLC24VD3
ESD Protection Diodes
SOD323
Active
Download
ESDLC24VD3B
ESD Protection Diodes
SOD323
Active
Download
