ESD Protection Diodes
TVS Diodes ESD Protection Diodes Resettable Fuses Thyristor Surge Suppressor Gas Discharge Tubes Schottky Barrier Diodes Varistors NTC thermistors eFuse
Overview Specifications Package Information Related Products

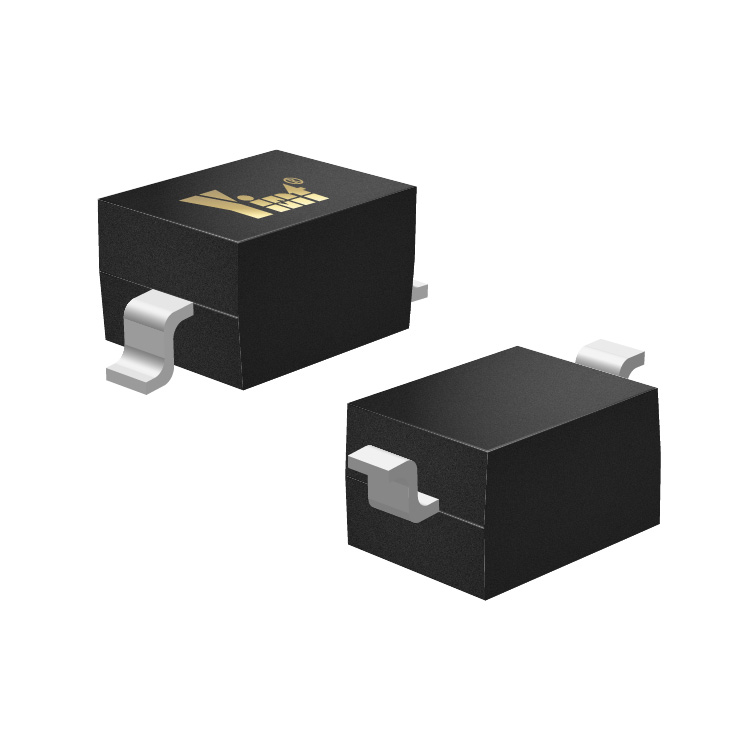

Package

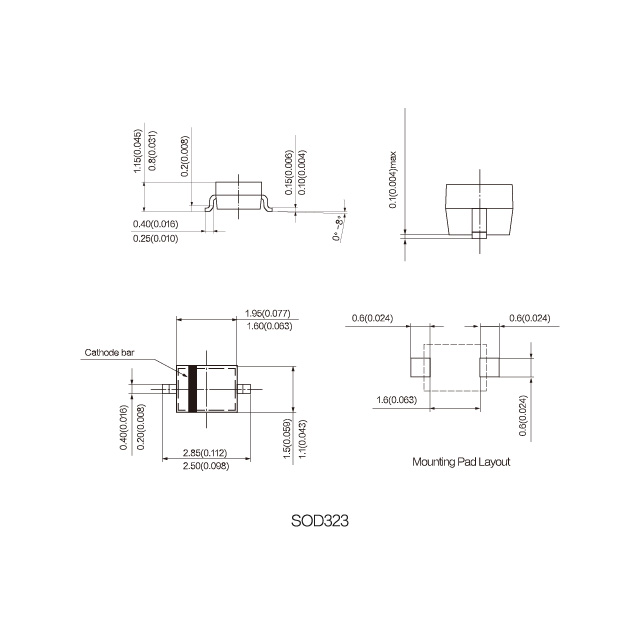

Dimensions
ESDLC5V0D3BDimensions
View
ESDLC5V0D3BDimensions
View
ESD Protection Diodes

ESDLC5V0D3B

new

ESDLC5V0D3B provides ultra fast transient response, low clamping voltage and extremely low capacitance, making it ideal for Ethernet, USB and communication ports requiring signal integrity.

DATA SHEETDATA SHEET SAMPLE

Product details

Package
SOD323
Bi-/uni-directional
BI
Channel
2
Vrwm (V)
5.00
Vbr[min](V)
6.00
Vbr[max](V)
8.00
Ppk(W)
350.00
Ipp(A)
18.00
Vc@lpp [Max](V)
15.00
IR@Vrwm(μA)
0.50
@ iT (mA)
1.00
IEC 61000−4−2 VESD(Air)
30KV
IEC 61000−4−2 VESD(Contact)
30KV
C(max)(pF)
-
AEC-Q101 Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
SOD323
Unit Weight
0.035
Packing Information
tape packaging：3000 pieces/roll

Related Products

Part Number
Category
Package Type
Status
Datasheet
ESD5V0D3
ESD Protection Diodes
SOD323
Active
Download
ESD5V0D3B
ESD Protection Diodes
SOD323
Active
Download
ESD5V0D3BH
ESD Protection Diodes
SOD323
Active
Download
ESD15VD3
ESD Protection Diodes
SOD323
Active
Download
ESD15VD3BH
ESD Protection Diodes
SOD323
Active
Download
ESDLC5V0D3B
ESD Protection Diodes
SOD323
Active
Download
ESDLC8V0D3
ESD Protection Diodes
SOD323
Active
Download
ESDLC15VD3
ESD Protection Diodes
SOD323
Active
Download
ESDLC15VD3B
ESD Protection Diodes
SOD323
Active
Download
ESD5V0D5
ESD Protection Diodes
SOD523
Active
Download
