ESD Protection Diodes
TVS Diodes ESD Protection Diodes Resettable Fuses Thyristor Surge Suppressor Gas Discharge Tubes Schottky Barrier Diodes Varistors NTC thermistors eFuse
Overview Specifications Package Information Related Products
Package

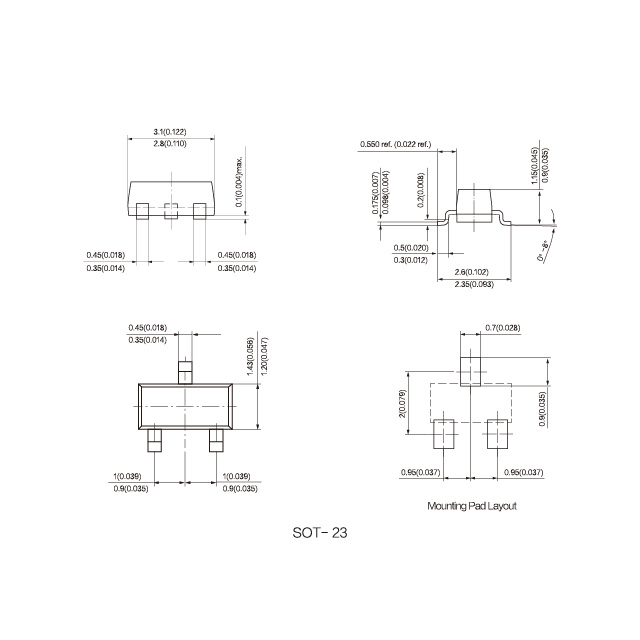

Dimensions
ESDSM712Dimensions
View
ESDSM712Dimensions
View
ESD Protection Diodes

ESDSM712

new

ESDSM712 integrates dual steering diodes optimized for asymmetrical signal environments, providing fast clamping response, low leakage current and high surge robustness. It effectively suppresses ESD and lightning transients in RS-485, Fieldbus and Modbus networks while maintaining reliable data transmission under harsh industrial conditions.

DATA SHEETDATA SHEET SAMPLE

Product details

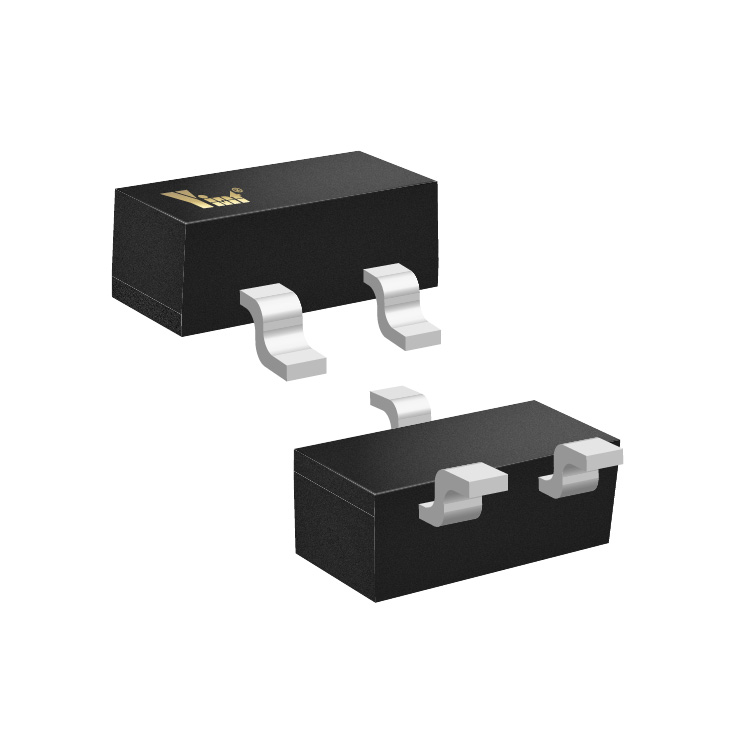

Package
SOT23
Bi-/uni-directional
BI
Channel
0
Vrwm (V)
12/7
Vbr[min](V)
13.3/7.5
Vbr[max](V)
-
Ppk(W)
0.00
Ipp(A)
15/20
Vc@lpp [Max](V)
17/10.5
IR@Vrwm(μA)
0.00
@ iT (mA)
0.00
IEC 61000−4−2 VESD(Air)
30KV
IEC 61000−4−2 VESD(Contact)
30KV
C(max)(pF)
0.00
AEC-Q101 Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
SOT23
Unit Weight
0.045
Packing Information
tape packaging：3000 pieces/roll
