ESD Protection Diodes
TVS Diodes ESD Protection Diodes Resettable Fuses Thyristor Surge Suppressor Gas Discharge Tubes Schottky Barrier Diodes Varistors NTC thermistors eFuse
Overview Specifications Package Information Related Products
Package

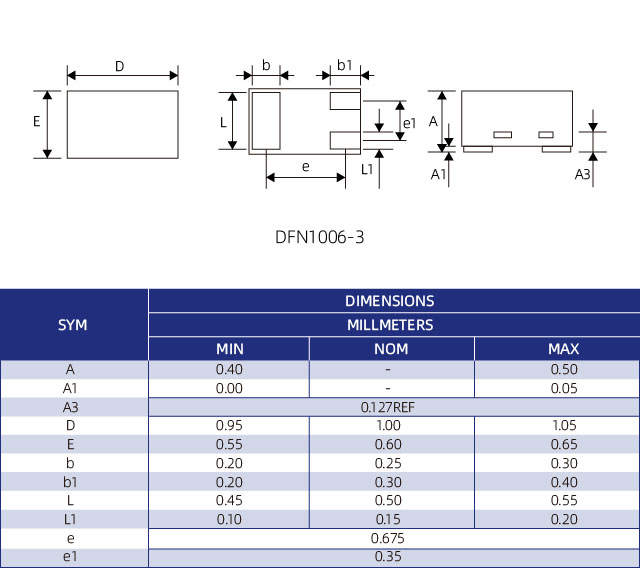

Dimensions
ESDULC5V0F1Dimensions
View
ESDULC5V0F1Dimensions
View
ESD Protection Diodes

ESDULC5V0F1

new

Offers multi-line protection with ultra low capacitance, fast response time and low clamping voltage, ideal for USB2.0, portable electronics and data ports.

DATA SHEETDATA SHEET SAMPLE

Product details

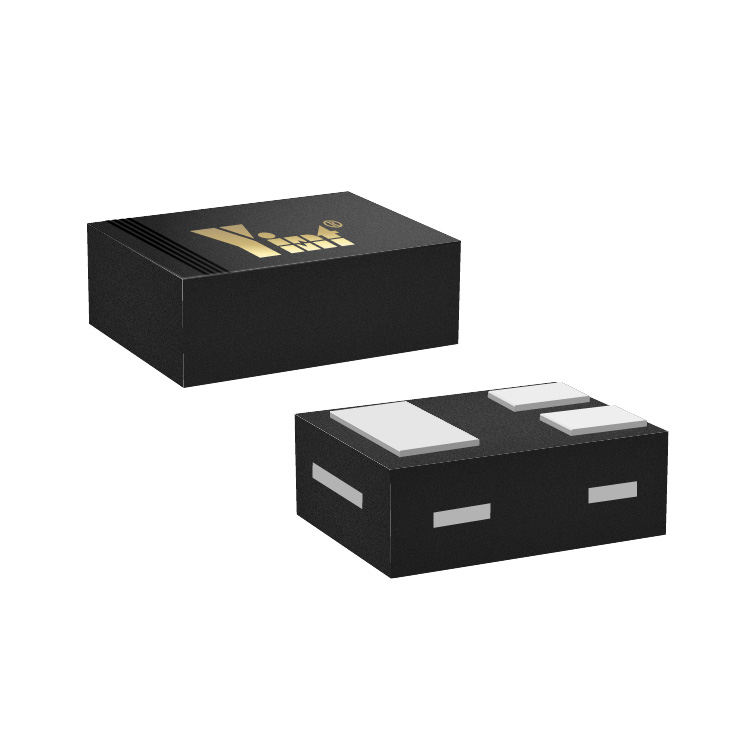

Package
DFN1006
Bi-/uni-directional
UNI
Channel
1
Vrwm (V)
5.00
Vbr[min](V)
6.00
Vbr[max](V)
9.00
Ppk(W)
Ipp(A)
4.00
Vc@lpp [Max](V)
14.00
IR@Vrwm(μA)
0.10
@ iT (mA)
1.00
IEC 61000−4−2 VESD(Air)
20KV
IEC 61000−4−2 VESD(Contact)
15KV
C(max)(pF)
0.65/0.4
AEC-Q101 Qualified
no
Status
Active

Package Information

Mounting Type
patch
Package Type
ESD DFN1006-3L
Unit Weight
Packing Information
tape packaging：10000 pieces/roll
