The goal of the International Electrotechnical Commission in developing this standard is to simulate electrostatic discharge, applicable to charged metal objects of equipment, caused by contact or static electricity through air Attached are the testing methods and related simulated waveforms. All products of Yin Te Electronics meet the standard requirements.
IEC 6100-4-2：

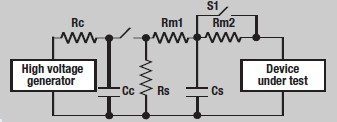

Contact discharge model
Static discharge waveform
IEC 61000-4-5：
electrical overstress
Contact discharge model
The four levels are defined, and the voltage and current values of the electrostatic waveform are as follows:
|
Grade Class |
Contact discharge |
Air discharge |
|
|
Test voltage kV |
Max current A |
Test voltage kV |
|
|
1 |
2 |
7.5 |
2 |
|
2 |
4 |
15 |
4 |
|
3 |
6 |
22.5 |
8 |
|
4 |
8 |
30 |
15 |

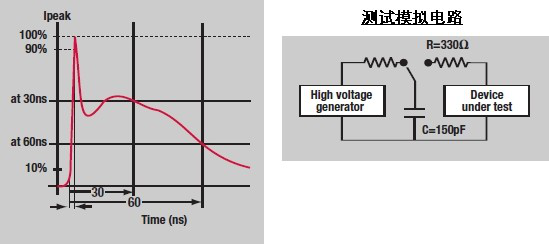

ESD discharge waveform
IEC 6100-4-2：
Electrical overstress surge
IEC 61000-4-5：requirement
|
Class |
test voltage |
|
Test voltage kV |
|
|
1 |
0.5 |
|
2 |
1 |
|
3 |
2 |
|
4 |
4 |
EOS waveform
EOS surge generator

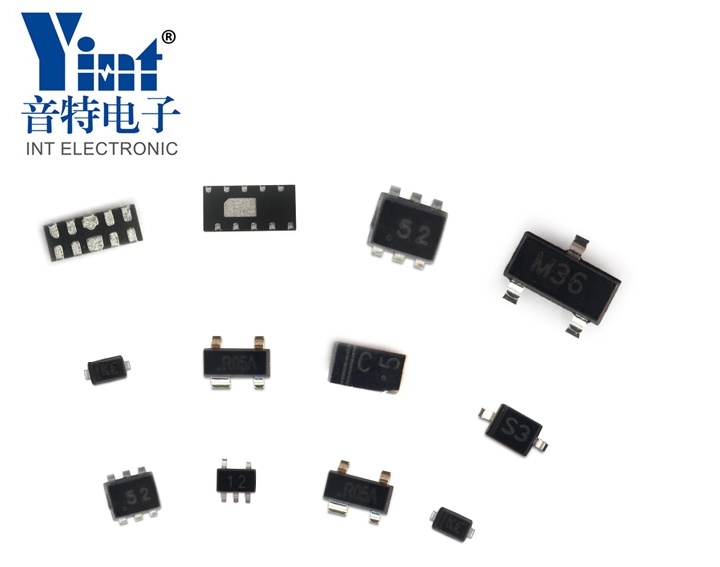

Product: ESD electrostatic protection components
