Products
Package

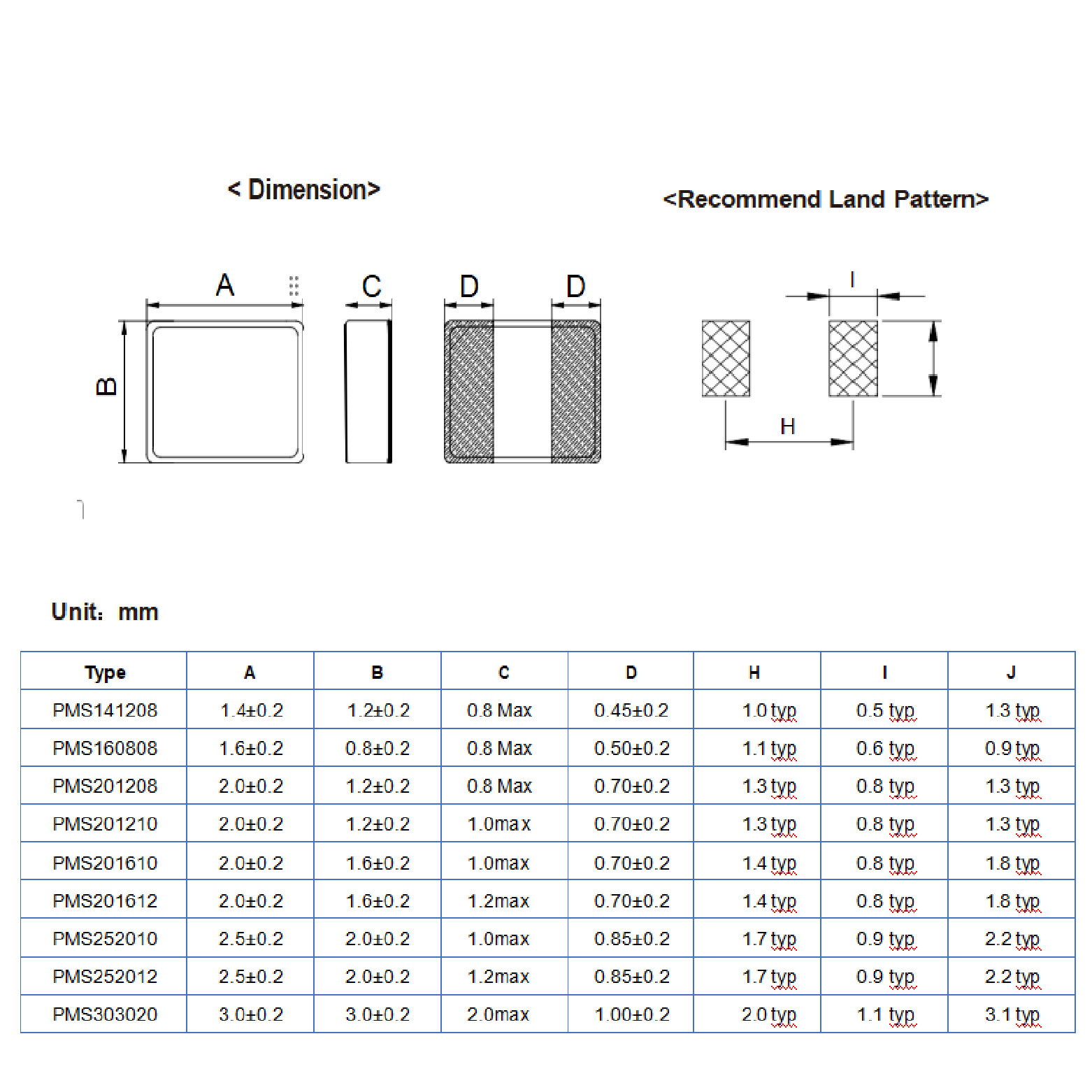

Dimensions
Power Inductors

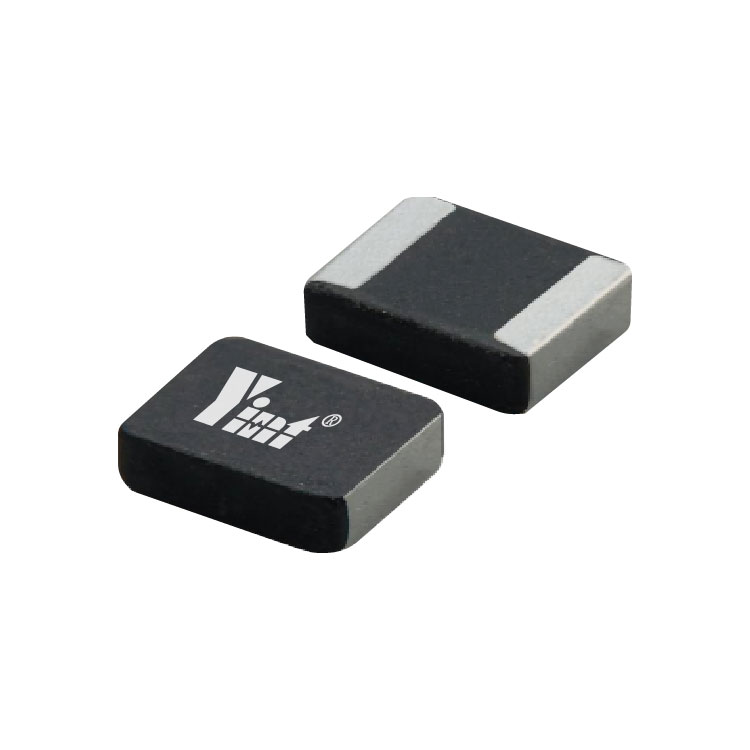

PMS201610-R24M0T

The PMS201610-R24M0T provides exceptional current handling with minimal inductance drop and excellent EMI control. It is well suited for CPU core power rails, VRM circuits, compact high current switching regulators, and portable electronics requiring high performance in space constrained layouts.

Product details

Size
201610
Inductance L0 (μH)
0.24
DC Resistance[Max](mΩ)
19.00
Saturation Current[Typ](A)
8.00
Irms[Typ](A)
6.80

Package Information

Mounting Type
patch
Package Type
201610
Unit Weight
Packing Information
tape packaging:2000 pieces/盘
