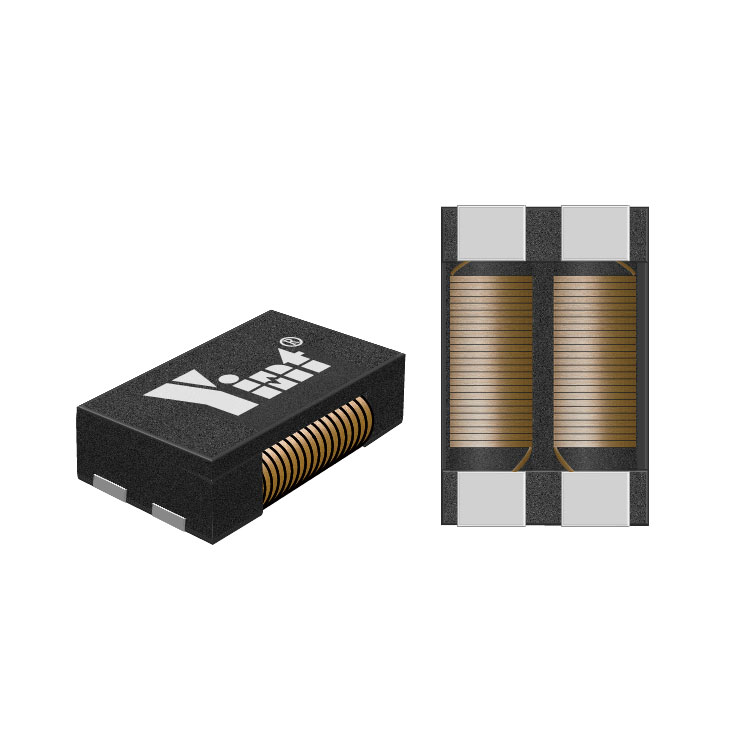

Package

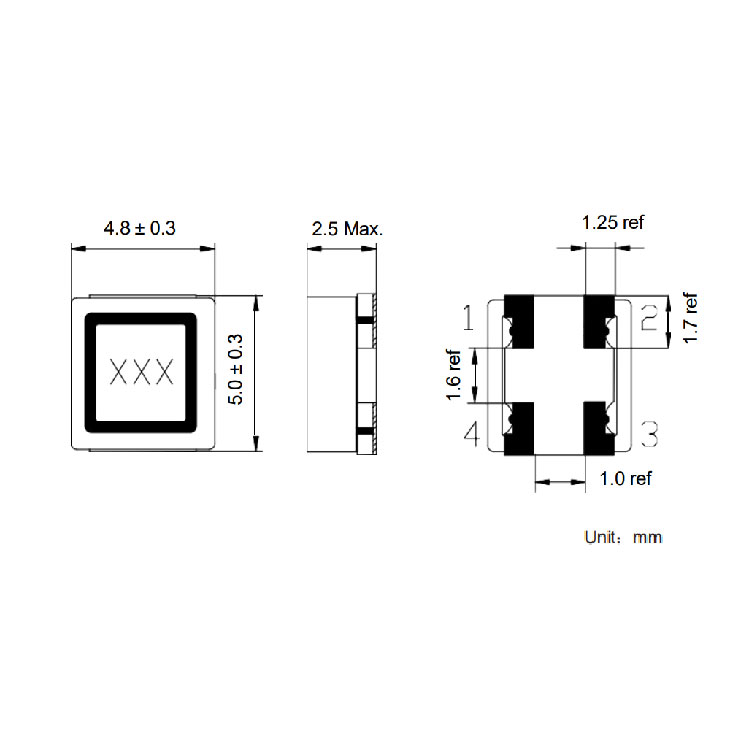

Dimensions
CMZ5050A-102TDimensions
View
CMZ5050A-102TDimensions
View
Common Mode Choke

CMZ5050A-102T

The CMZ5050A-102T delivers balanced EMI control with 700Ω impedance at 100MHz and supports 2.0A rated current, suitable for compact power rails and industrial electronics.

DATA SHEETDATA SHEET SAMPLE

Product details

Type
Power Line
Size（mm）
5050.00
Z(Ω)@100MHZ[Min]
700.00
Z(Ω)@100MHZ[Typ]
DCR[Max](mΩ)
34.00
IR[Min](MΩ)
10.00
Rated Voltage(V)
50.00
Irms [Max](A)
2.00

Package Information

Mounting Type
patch
Package Type
5050
Unit Weight
Packing Information
tape packaging：2000 pieces/盘

Related Products

Part Number
Category
Package Type
Status
Datasheet
CMZ4520A-701T
Common Mode Choke
Download
CMZ4520A-102T
Common Mode Choke
Download
CMZ5050A-102T
Common Mode Choke
Download
CMZ7060A-701T
Common Mode Choke
Download
CMZ7060A-272T
Common Mode Choke
Download
CMZ9070A-701T
Common Mode Choke
Download
CMZ9070A-272T
Common Mode Choke
Download
CMZ1211A-701T
Common Mode Choke
Download
CMZ1211A-272T
Common Mode Choke
Download
CMZ1513A-701T
Common Mode Choke
Download
