Overview Specifications Package Information Related Products
Package

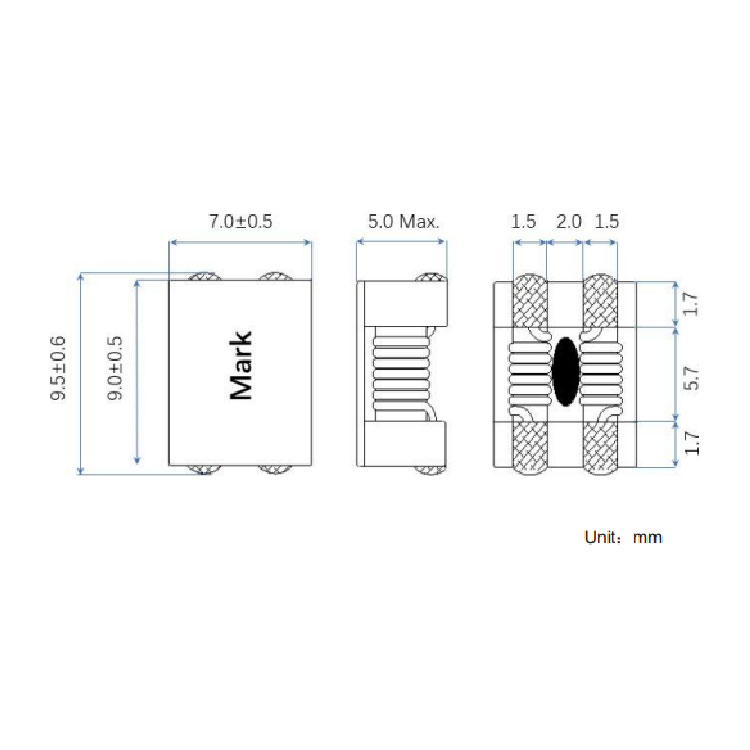

Dimensions
CMZ9070A-701TDimensions
View
CMZ9070A-701TDimensions
View
Common Mode Choke

CMZ9070A-701T

The CMZ9070A-701T provides balanced EMI control with 500Ω minimum and 700Ω typical impedance at 100MHz while supporting 5.0A rated current. It is ideal for telecom power feeds, industrial supplies, and cable harness EMI mitigation.

DATA SHEETDATA SHEET SAMPLE

Product details

Type
Power Line
Size（mm）
9070.00
Z(Ω)@100MHZ[Min]
500.00
Z(Ω)@100MHZ[Typ]
DCR[Max](mΩ)
10.00
IR[Min](MΩ)
10.00
Rated Voltage(V)
125.00
Irms [Max](A)
5.00

Package Information

Mounting Type
patch
Package Type
9070
Unit Weight
Packing Information
tape packaging：2000 pieces/盘

Related Products

Part Number
Category
Package Type
Status
Datasheet
CMZ4520A-701T
Common Mode Choke
Download
CMZ5050A-102T
Common Mode Choke
Download
CMZ5050A-152T
Common Mode Choke
Download
CMZ7060A-101T
Common Mode Choke
Download
CMZ7060A-701T
Common Mode Choke
Download
CMZ7060A-222T
Common Mode Choke
Download
CMZ7060A-272T
Common Mode Choke
Download
CMZ9070A-701T
Common Mode Choke
Download
CMZ9070A-222T
Common Mode Choke
Download
CMZ9070A-272T
Common Mode Choke
Download
