EMC Solution for AI Inference Cards

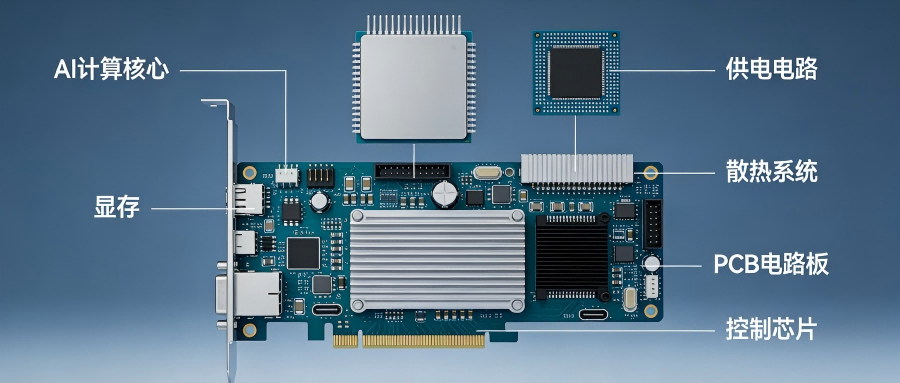

In the current landscape where AI computing power is no less critical than an arms race, the inference card, as the core hardware for model execution, directly determines the quality and continuity of AI services through its stability and reliability. A high-performance AI inference card integrates a massive number of GPU cores, HBM memory, and high-speed interconnect interfaces internally, creating an extremely complex electromagnetic environment. The switching noise from power supply circuits (VRM), signal crosstalk from dozens of Gbps signals on multi-layer high-speed boards, and surge intrusion from external power interfaces collectively pose severe challenges to the EMC design of inference cards. Any oversight in protection at any point could lead to data transmission errors, chip lock-up, or even permanent damage, resulting in significant economic losses.

Surge Defense Line at the Power Entry: PCIe 8-pin and 12VHPWR 16-pin

Power supply is the cornerstone for the stable operation of inference cards and the primary channel for external interference intrusion. Whether it's the traditional PCIe 8-pin interface or the new-generation high-power 12VHPWR 16-pin interface, they are directly connected to the chassis power supply and exposed to complex grid environments. Surge pulses generated by events such as lightning strikes, equipment startup/shutdown, and load switching can couple into the inference card through power lines, causing devastating damage to the delicate VRM modules and downstream chips.

A robust primary and secondary protection system must be established for this critical entry point. Industry technical personnel provide a complete surge protection solution validated by the market. For 12V power lines, it is recommended to use the CMZ1211-501T ferrite bead to suppress high-frequency noise, while pairing it with high-power TVS diodes like 5.0SMDJ24CA or 5.0SMDJ24CA to form a reliable surge absorption loop. These TVS devices feature extremely fast response times and peak pulse power ratings up to several kilowatts, effectively clamping surge voltages to protect downstream DC-DC converters. For the higher-power 12VHPWR interface, with its doubled current-carrying capacity, the protection devices face higher demands for current handling and thermal management. Schottky anti-reverse series like SK56/SMC TVS are ideal choices for such high-current surge scenarios.

Protecting Core Computing Power: Signal Integrity for Ultra-High-Speed Links Between GPU and Memory

The performance bottleneck of AI inference cards often lies in data throughput. Thousands of parallel buses exchange data between the GPU core and HBM memory at ultra-high frequencies, with signal rates entering the realm of tens of Gbps. Signals at such speeds are exceptionally sensitive to channel impedance continuity, loss, and electromagnetic interference (EMI). Ringing, overshoot on signal lines, and common-mode noise from the power supply can significantly shrink the data eye diagram and increase the bit error rate.

Traditional filtering or protection schemes are unsuitable here as they introduce excessive capacitance. Yint Electronics' ultra-low capacitance EMI+EMS combined solution is designed precisely for this purpose. For high-speed differential signal paths like LVDS, the CMZ20212A-900T common mode choke is recommended. This component effectively suppresses common-mode noise between signal pairs, improving EMI, while having a negligible impact on the differential signals. For electrostatic discharge (ESD) protection, TVS arrays like ESDULC5V0D9B or ESDLLC5V0D8BH are perfect partners. Their typical capacitance can be as low as below 0.5pF, providing top-tier protection meeting IEC 61000-4-2 Level 4 (contact discharge 8kV) while almost causing no distortion to signal edges, perfectly fitting the protection needs of high-speed interfaces like PCIe 5.0 and GDDR6X.

Comprehensive Reinforcement for High-Speed Interconnects and Data Interfaces

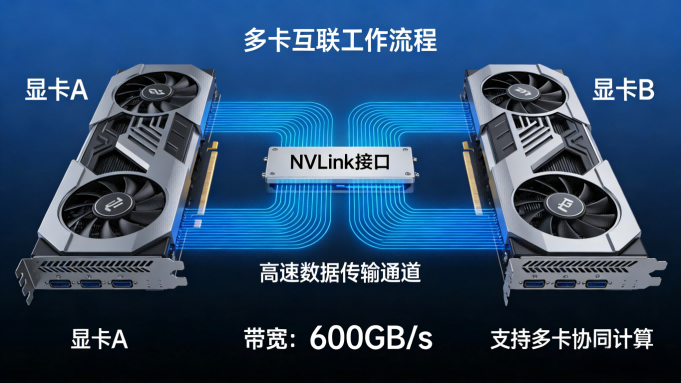

Inference cards not only operate at high speeds internally but also need to exchange high-speed data with the motherboard, other accelerator cards, and even external networks. These data interfaces are another critical area for interference intrusion and radiated emissions.

PCIe Interface: As the main communication channel with the motherboard, its clock and data lines require both ESD protection and signal integrity. A combination of the CMZ2012A-900T ferrite bead and the ESDLC5V0D3B TVS array can be selected to provide a clean signal environment for each high-speed channel.

Network and Display Interfaces: In AI server clusters, inference cards may be directly equipped with high-speed network interfaces (e.g., Ethernet) or display interfaces for visualization output (e.g., DP). For automotive Ethernet or DP interfaces, Yint's standard solutions can be referenced respectively: Ethernet ports can use CMZ3225A-201T + ESDLC3V3D3B; DP interfaces can adopt the same golden combination as for LVDS: CMZ20212A-900T + ESDLLC5V0D8BH, achieving integrated EMI filtering and ESD protection.

Type-C and Other Multi-Function Interfaces: With increasing requirements for universality, Type-C interfaces may be used for debugging or data transfer. It is recommended to use the CMZ2012A-900T ferrite bead paired with multi-channel TVS protection devices like ESDSRVLC05-4 or ESDLC5V0D8B to provide compact and efficient protection for USB 3.0/3.1 high-speed data lines.

Providing a Reliable Foundation for Domestic and Global AI Hardware

Whether it's NVIDIA's HGX systems, AMD's Instinct series, or domestically developed AI inference cards (such as the Jiangyuan D20 series), their hardware architectures share common needs for circuit protection. Against the backdrop of a reshaping supply chain landscape, the dominant position of Mainland China and Taiwan in advanced manufacturing and system assembly is increasingly consolidated. Choosing a protection device brand with excellent performance, stable supply, and compliance with automotive and industrial-grade standards is crucial.

Yint Electronics' (YINT) complete EMI+EMS solution, from surge suppression at the power entry, to maintaining signal integrity for core high-speed signals, and to ESD protection for various data interfaces, forms a comprehensive protection network covering all scenarios for AI inference cards. Its components all adopt standard packages, facilitating integration into the dense layouts of multi-layer high-speed boards.

Actionable Recommendation: During the schematic design phase of the next-generation AI inference card or server motherboard, it is advised to incorporate TVS protection for critical power paths (12V/5V/3.3V) and ESD protection devices for high-speed signal lines (PCIe, GDDR, Ethernet) as mandatory design elements. Prioritize star models like ESDLLC5V0D8BH and SM8K24CA as the primary solutions, and reserve 0603/0402 package footprints for layout optimization. Obtaining the complete design guide and datasheets is an efficient path to ensure passing EMC tests on the first attempt and enhancing product reliability.
