PEPS

The PEPS system serves as the gateway to modern automotive intelligence. To address its requirements for ultra-low power consumption and high-frequency wireless communication, we offer an ESD protection solution with extremely low leakage current. This ensures accurate wireless signal transmission while effectively preventing damage to the core decompression chip from static electricity from the human body, guaranteeing exceptionally smooth and safe vehicle unlocking and starting.

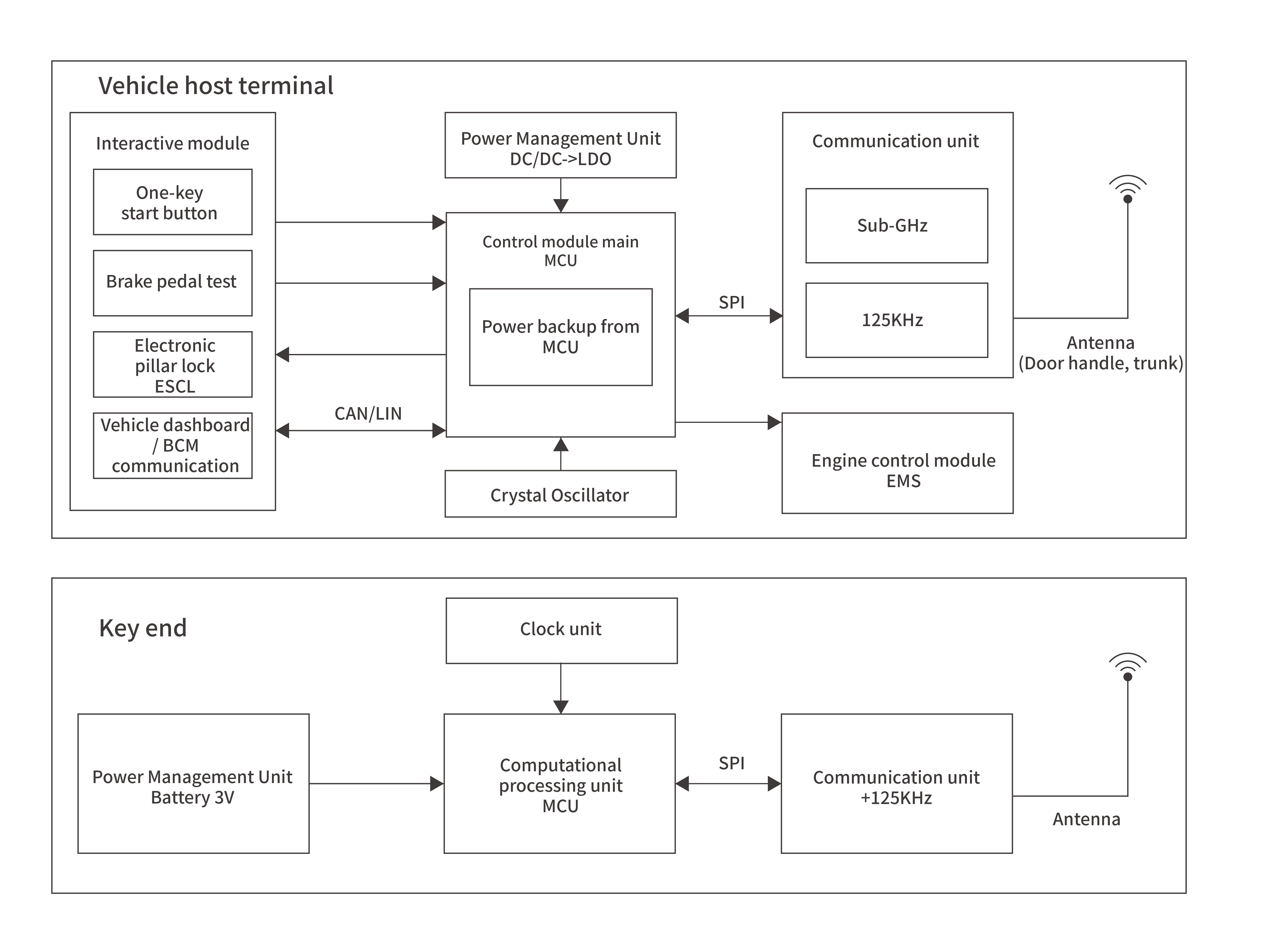

Block diagram

Find products and reference designs for your system.

-- SOT-23 bidirectional TVS diode array rated at 5V for multi-line ESD protection

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

-- SOT-23 bidirectional TVS diode array rated at 5V for multi-line ESD protection

-- 24V bidirectional TVS array, VBR 25.5–29.5V, clamping 31–35V @1A / 40–50V @10A, 30–50pF, AEC-Q101

-- SOT-23 bidirectional TVS diode array rated at 5V for multi-line ESD protection

-- Supports efficient current flow with reduced forward voltage drop.

-- 3.3V single-line ultra low capacitance ESD diode in SOD-323 package for low voltage signal protection

-- SMAJ3.3CA, bidirectional TVS, VR=3.3V, VBR=3.3–4.1V, VC=7.3V, 400W.

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection
