Drone

Unmanned aerial vehicles (UAVs) are complex aerospace platforms integrating precise flight control, multi-axis propulsion, and beyond-line-of-sight communication. To address the extremely high induced surges generated by the electronic speed controller (ESC) during high-frequency commutation and high-current drive, and the susceptibility of GNSS and image transmission antenna interfaces to electrostatic discharge (ESD) and induced lightning strikes outdoors, we offer high-energy transient overvoltage suppression and extremely low insertion loss signal protection solutions. These solutions effectively prevent system restarts caused by motor back EMF, ensure the purity of navigation and data transmission links in complex electromagnetic environments, and guarantee uninterrupted stability during every takeoff, landing, and mission execution.

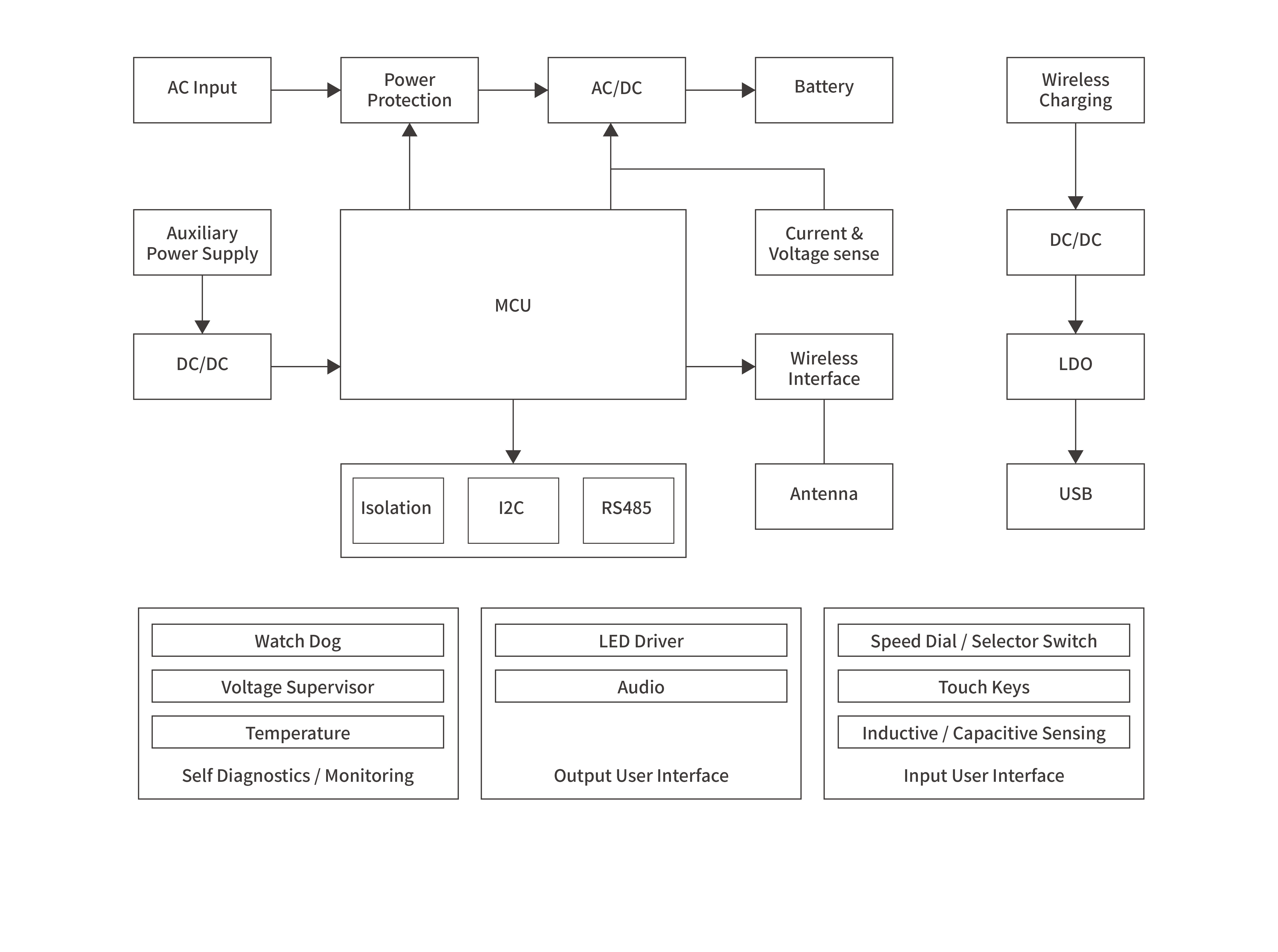

Block diagram

Find products and reference designs for your system.

Products

Reference designs

Gdt 气体放电管 (1)

2R1000L-5.5×6

-- 2R1000L-5.5×6, 2-electrode GDT, 1000V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

Mov 压敏电阻 (1)

Tvs 瞬态抑制二极管 (1)

Gdt 气体放电管 (1)

2R1000L-5.5×6

-- 2R1000L-5.5×6, 2-electrode GDT, 1000V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

Mov 压敏电阻 (1)

Tvs 瞬态抑制二极管 (1)

SMF24CA

-- Bidirectional TVS diode suppressing transient surges on 24V power and signal lines.

Esd 静电保护元件 (1)

ESDLC5V0D3

-- SOD-323 ultra low capacitance TVS diode rated at 5V for single line protection

Ntc 热敏电阻 (1)

Esd 静电保护元件 (1)

ESDLC5V0D3B

-- Low capacitance TVS diode array rated at 5V for high speed signal protection

Tvs 瞬态抑制二极管 (1)

SMBJ6.5CA

-- SMBJ6.5CA, bidirectional TVS diode, VR=6.5V, VBR≈7.22–7.98V, VC≈11.2V, 600W.

Tvs 瞬态抑制二极管 (1)

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

Esd 静电保护元件 (1)

ESDSRV05-4H

-- SOT23-6L high surge TVS diode array for multi-line transient suppression

Esd 静电保护元件 (1)

ESD24VAPB

-- 24V bidirectional TVS array, VBR 25.5–29.5V, clamping 31–35V @1A / 40–50V @10A, 30–50pF, AEC-Q101

Esd 静电保护元件 (1)

ESDLC24VD3B

-- 24V single-line ultra low capacitance ESD diode in SOD-323 package for transient voltage suppression

Esd 静电保护元件 (1)

ESDLC5V0D3B

-- Low capacitance TVS diode array rated at 5V for high speed signal protection

Ntc 热敏电阻 (1)

8D-5

-- 8D-5 NTC thermistor, 5Ω @25°C cold resistance, used to reduce inrush current in small power supply designs.

Zd 稳压二极管 (1)

Ntc 热敏电阻 (1)

8D-5

-- 8D-5 NTC thermistor, 5Ω @25°C cold resistance, used to reduce inrush current in small power supply designs.

Esd 静电保护元件 (1)

ESDLC5V0D3B

-- Low capacitance TVS diode array rated at 5V for high speed signal protection

Esd 静电保护元件 (1)

ESD5V0D5B

-- 5V working voltage, ultra-low capacitance single-line TVS diode optimized for fast transient suppression

Esd 静电保护元件 (1)

ESDLC5V0D3B

-- Low capacitance TVS diode array rated at 5V for high speed signal protection
