Infusion pump

Infusion pumps are crucial devices for precise drug delivery in clinical settings, with their core function being the precise and constant control of drug flow rate. To address the back electromotive force generated by the stepper motor drive system and the signal ripple interference from the precision pressure sensor, we offer high-performance transient overvoltage suppression and power integrity protection solutions. These solutions effectively absorb voltage fluctuations during motor commutation, prevent parameter drift in logic circuits caused by electromagnetic interference, and ensure millisecond-level precision in injection even during long-term continuous operation, providing robust safety assurance for critical care and long-term chemotherapy.

Block diagram

Find products and reference designs for your system.

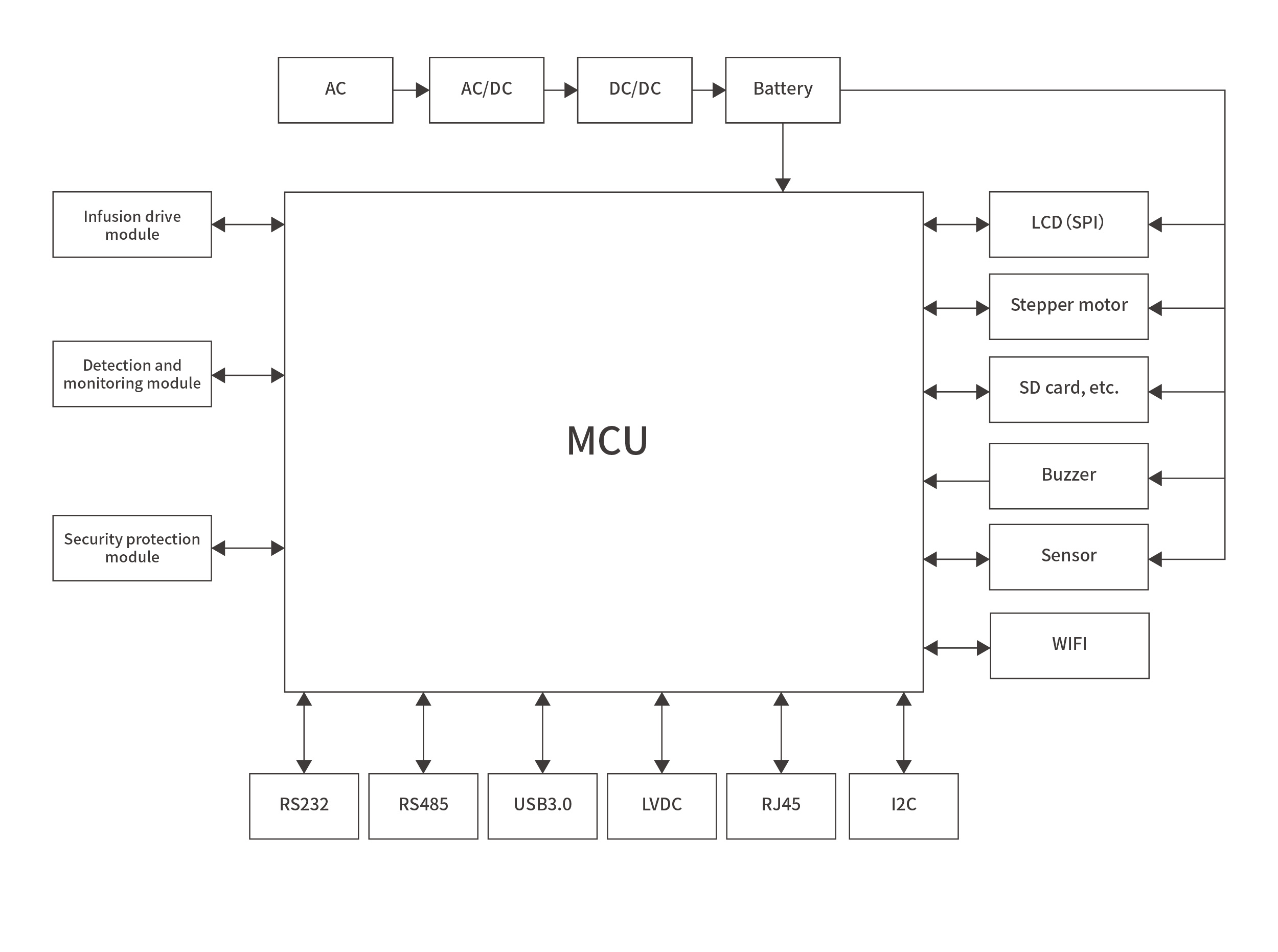

Infusion pumpBlock diagram

Products

Reference designs

Gdt 气体放电管 (2)

2R600L-5.5×6

-- 2R600L-5.5×6, 2-electrode GDT, 600V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R600L-8×6

-- 2R600L-8×6, 2-electrode gas discharge tube, 600V DC breakdown voltage, ±20% tolerance, 10kA (8/20µs) impulse discharge current, ≤1pF, ITU-T K.12 compliant, for primary lightning protection.

Mov 压敏电阻 (2)

Gdt 气体放电管 (2)

2R090L-5.5×6

-- 2R090L-5.5×6, 2-electrode GDT, 90V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R090L-8×6

-- 2R090L-8×6, 2-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20µs), ≤1pF.

Mov 压敏电阻 (1)

Tvs 瞬态抑制二极管 (2)

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (1)

ESD5V0D8BH

-- 5V operating voltage, ultra-small bidirectional TVS diode with high surge transient suppression

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

ESD3V3D8B

-- Enhanced ESD diode protects 3.3V signal lines in compact designs.

Esd 静电保护元件 (2)

ESD5V0D3B

-- 5V working voltage, high surge low clamping TVS diode optimized for rugged transient suppression

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Tvs 瞬态抑制二极管 (1)

Esd 静电保护元件 (1)

NRESDTLC5V0D8B

-- DFN1006 ultra low capacitance TVS diode rated at 5V for single line ESD protection

Tss 半导体放电管 (2)

P0220SCL

-- P0220SCL, TSS surge suppressor, offers reliable surge suppression for industrial and telecom circuits, with fast clamping and low leakage.

P3100SCL

-- P3100SCL, TSS surge suppressor, provides reliable protection for telecom lines and sensitive electronics. With fast response and low leakage, it provides the reliability needed for modern communication equipment.

Tss 半导体放电管 (1)

P0080SCL

-- P0080SCL, TSS surge suppressor, offers fast clamping for protecting low-voltage signal circuits from transient overvoltage events.

Esd 静电保护元件 (2)

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Tvs 瞬态抑制二极管 (1)

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Gdt 气体放电管 (3)

3R090L-5×7.6

-- 3R090L-5×7.6, 3-electrode GDT, 90V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

3R090L-6×8

-- 3R090L-6×8, 3-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20µs), ≤1pF.

3R090L-8×10

-- 3R090L-8×10, 3-electrode GDT, 90V DC breakdown, ±20%, 10kA (8/20μs), ≤1pF.

Esd 静电保护元件 (1)

Esd 静电保护元件 (1)

ESD5V0D5B

-- 5V working voltage, ultra-low capacitance single-line TVS diode optimized for fast transient suppression

Tvs 瞬态抑制二极管 (1)
