Blood pressure monitor

Blood pressure monitors determine blood pressure values by precisely capturing pressure oscillations within the cuff, and their accuracy is highly dependent on the micro-voltage stability of the pressure sensor. To address the reverse induced current generated during the charging and discharging of the internal micro-pump, and the power ripple caused by the inflation valve's operation, we offer a high-efficiency surge absorption and low-noise linear voltage regulation protection solution. These components effectively eliminate interference from the power source on the analog sampling circuit, ensuring that the linear acquisition of the pressure signal is unaffected by fluctuations, thereby providing users with highly consistent and repeatable medical-grade measurement data.

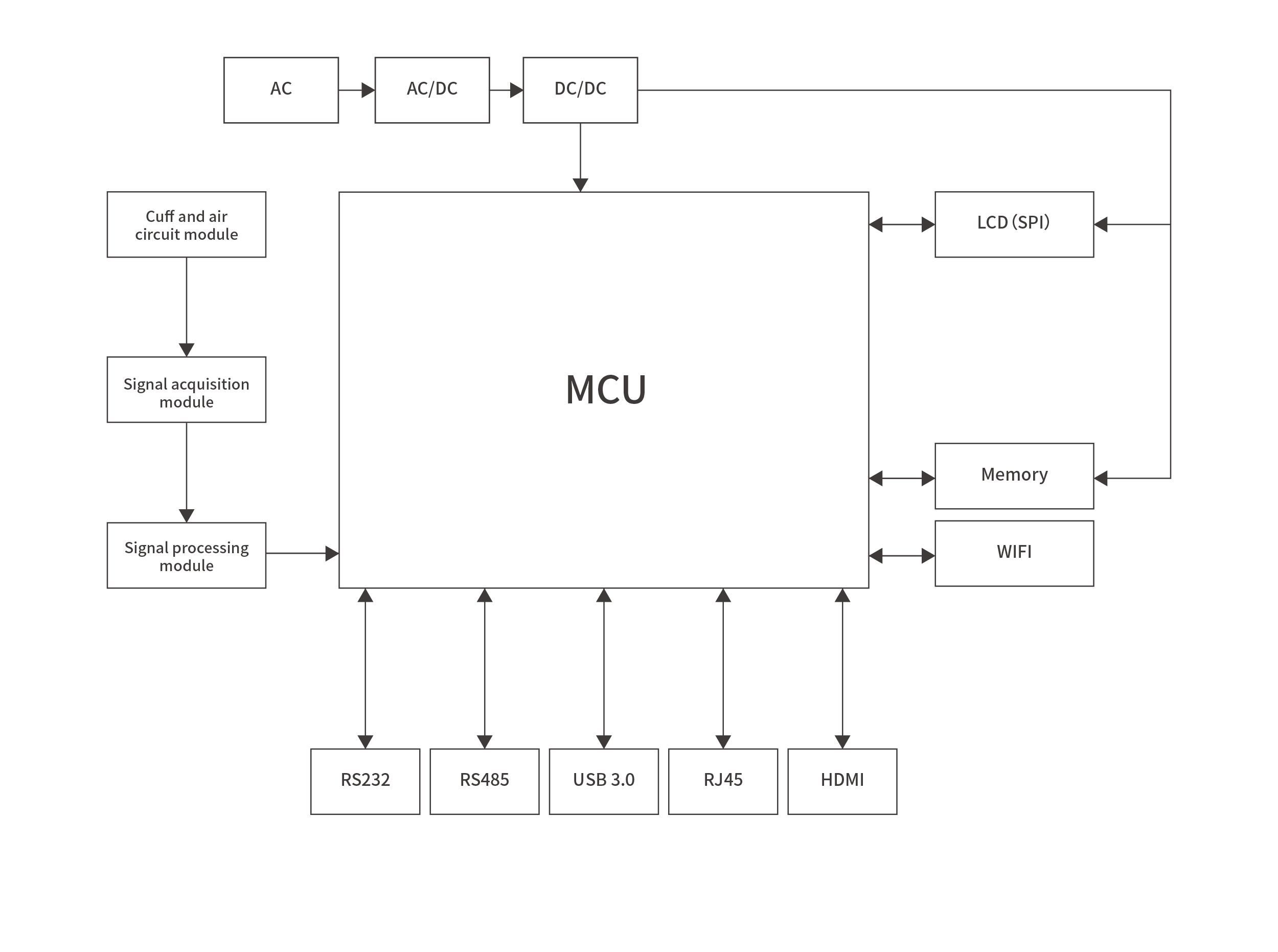

Block diagram

Find products and reference designs for your system.

Products

Reference designs

Gdt 气体放电管 (2)

2R600L-5.5×6

-- 2R600L-5.5×6, 2-electrode GDT, 600V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R600L-8×6

-- 2R600L-8×6, 2-electrode gas discharge tube, 600V DC breakdown voltage, ±20% tolerance, 10kA (8/20µs) impulse discharge current, ≤1pF, ITU-T K.12 compliant, for primary lightning protection.

Mov 压敏电阻 (2)

Tvs 瞬态抑制二极管 (3)

SMBJ6.5CA

-- SMBJ6.5CA, bidirectional TVS diode, VR=6.5V, VBR≈7.22–7.98V, VC≈11.2V, 600W.

SMCJ15CA

-- SMCJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, IPP≈61A, IR≤1µA, 1500W.

SMDJ28CA

-- SMDJ28CA, bidirectional TVS, VR=28V, VBR≈31.1–34.4V, VC≈45.4V, IPP≈66.1A, IR≤2µA, PPK=3000W.

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (1)

NRESDTLC5V0D8B

-- DFN1006 ultra low capacitance TVS diode rated at 5V for single line ESD protection

Tss 半导体放电管 (2)

P0220SCL

-- P0220SCL, TSS surge suppressor, offers reliable surge suppression for industrial and telecom circuits, with fast clamping and low leakage.

-- P3100SCL, TSS surge suppressor, provides reliable protection for telecom lines and sensitive electronics. With fast response and low leakage, it provides the reliability needed for modern communication equipment.

Esd 静电保护元件 (1)

Gdt 气体放电管 (4)

2R600L-5.5×6

-- 2R600L-5.5×6, 2-electrode GDT, 600V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R600L-8×6

-- 2R600L-8×6, 2-electrode gas discharge tube, 600V DC breakdown voltage, ±20% tolerance, 10kA (8/20µs) impulse discharge current, ≤1pF, ITU-T K.12 compliant, for primary lightning protection.
