Dental medical equipment

Dental diagnostic equipment demands extremely high precision in operation and real-time imaging. Addressing the back electromotive force generated by dental drills at ultra-high speeds, and the extreme sensitivity of intraoral endoscopes and X-ray imaging sensors to electrostatic discharge (ESD), we offer ultra-fast response overvoltage clamping and signal link anti-interference solutions. These technologies effectively eliminate the impact of motor start-stop on the control system and ensure the integrity of high-resolution medical images during transmission, improving diagnostic accuracy while guaranteeing the long-term stability of the digital dental system under frequent operation.

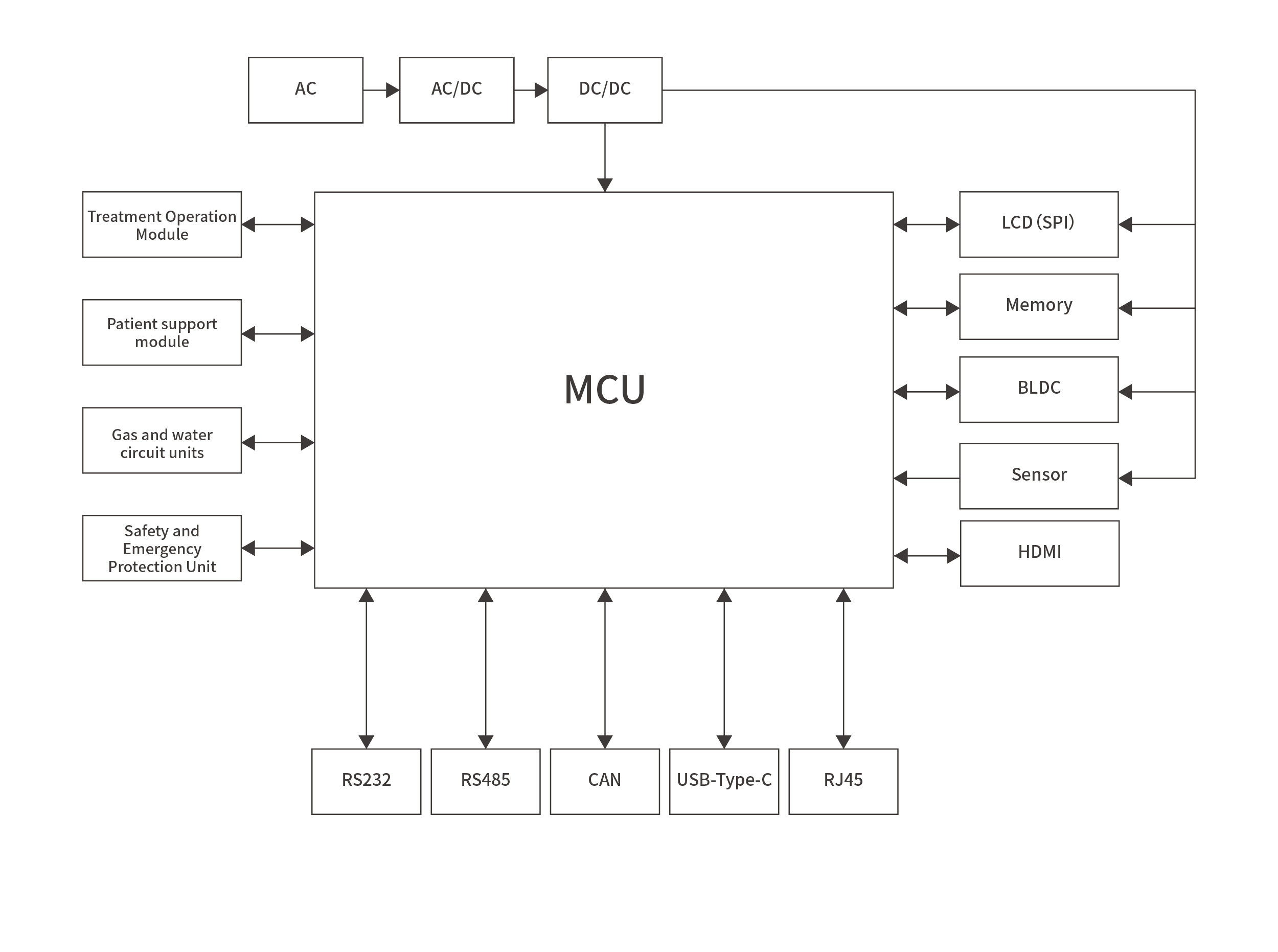

Block diagram

Find products and reference designs for your system.

Products

Reference designs

Gdt 气体放电管 (2)

2R600L-5.5×6

-- 2R600L-5.5×6, 2-electrode GDT, 600V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R600L-8×6

-- 2R600L-8×6, 2-electrode gas discharge tube, 600V DC breakdown voltage, ±20% tolerance, 10kA (8/20µs) impulse discharge current, ≤1pF, ITU-T K.12 compliant, for primary lightning protection.

Mov 压敏电阻 (2)

Tvs 瞬态抑制二极管 (3)

SMBJ6.5CA

-- SMBJ6.5CA, bidirectional TVS diode, VR=6.5V, VBR≈7.22–7.98V, VC≈11.2V, 600W.

SMCJ15CA

-- SMCJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, IPP≈61A, IR≤1µA, 1500W.

SMDJ28CA

-- SMDJ28CA, bidirectional TVS, VR=28V, VBR≈31.1–34.4V, VC≈45.4V, IPP≈66.1A, IR≤2µA, PPK=3000W.

Common mode inductor 共模滤波电感 (1)

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Esd 静电保护元件 (2)

ESD5V0D3B

-- 5V working voltage, high surge low clamping TVS diode optimized for rugged transient suppression

ESD3V3D8B

-- Enhanced ESD diode protects 3.3V signal lines in compact designs.

Esd 静电保护元件 (1)

ESD0524P

-- 5V four-line ultra low capacitance TVS diode array with 0.35pF line-to-line capacitance in DFN2510-10L package for high speed data protection

Tss 半导体放电管 (2)

P0220SCL

-- P0220SCL, TSS surge suppressor, offers reliable surge suppression for industrial and telecom circuits, with fast clamping and low leakage.

-- P3100SCL, TSS surge suppressor, provides reliable protection for telecom lines and sensitive electronics. With fast response and low leakage, it provides the reliability needed for modern communication equipment.

Esd 静电保护元件 (1)

Gdt 气体放电管 (4)

2R600L-5.5×6

-- 2R600L-5.5×6, 2-electrode GDT, 600V DC breakdown, ±20%, 5kA (8/20µs), ≤1pF.

2R600L-8×6

-- 2R600L-8×6, 2-electrode gas discharge tube, 600V DC breakdown voltage, ±20% tolerance, 10kA (8/20µs) impulse discharge current, ≤1pF, ITU-T K.12 compliant, for primary lightning protection.
