Headlight Adaptive LED Driver Module

Adaptive headlights (ADB/AFS) require rapid and precise beam adjustments. We provide a low-latency signal chain protection solution for adaptive control logic. Our components ensure the integrity of control signals to address the frequent signal switching caused by dynamic scanning and zone control, assisting the system in achieving zero-latency light and shadow transitions and precise obstacle avoidance.

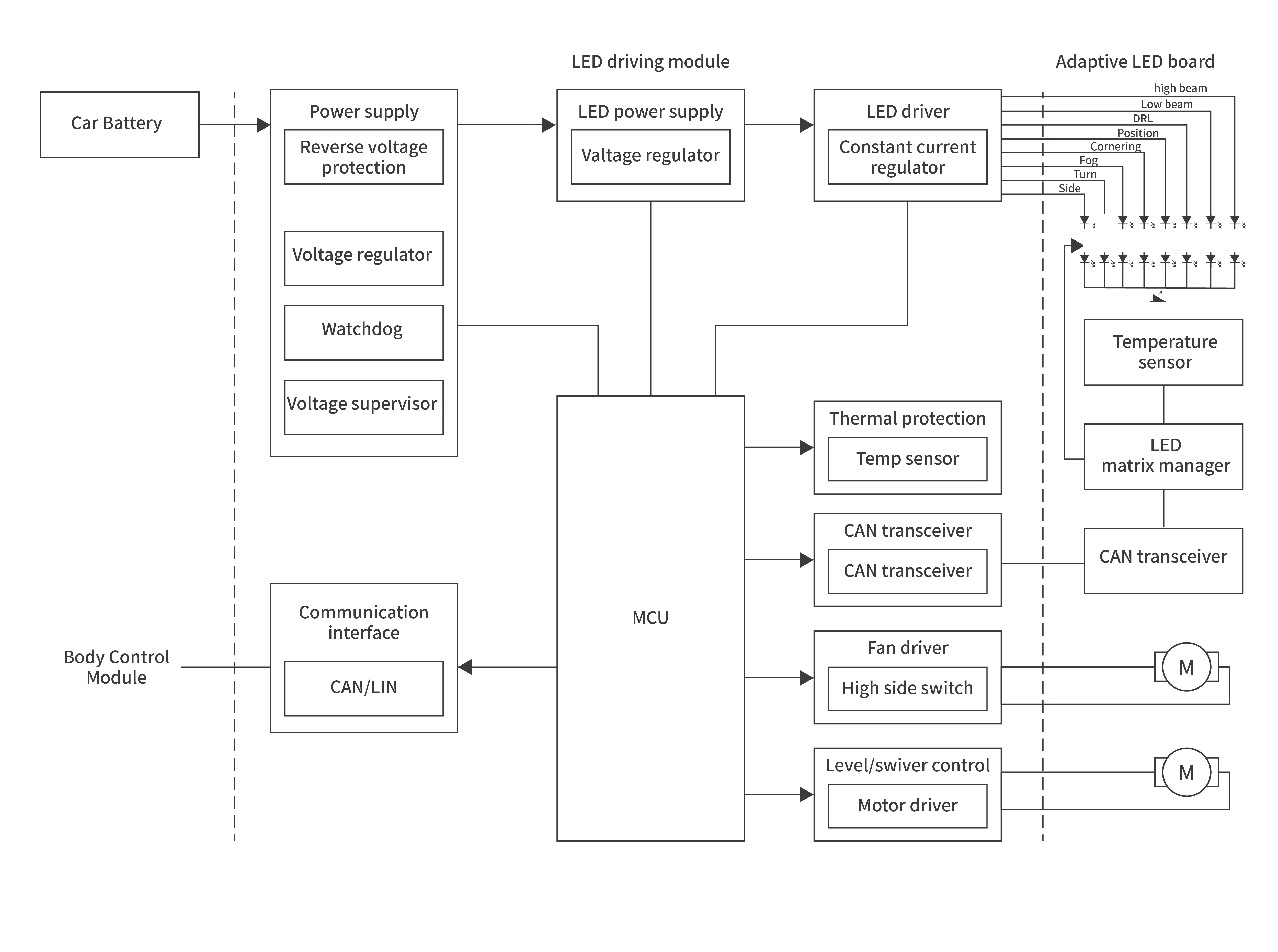

Block diagram

Find products and reference designs for your system.

Headlight Adaptive LED Driver ModuleBlock diagram

Products

Reference designs

Tvs 瞬态抑制二极管 (1)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

Sbr 肖特基二极管 (1)

Sbr 肖特基二极管 (1)

Tvs 瞬态抑制二极管 (3)

SMF3.3CA

-- Bidirectional TVS diode suppressing transient surges on 3.3V power and signal lines.

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

Zd 稳压二极管 (2)

Tvs 瞬态抑制二极管 (2)

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection

Tvs 瞬态抑制二极管 (2)

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection

Esd 静电保护元件 (2)

ESD1524D3LIN

-- 15V/24V working voltage asymmetric TVS diode optimized for LIN communication protection

ESD24VAPB

-- 24V bidirectional TVS array, VBR 25.5–29.5V, clamping 31–35V @1A / 40–50V @10A, 30–50pF, AEC-Q101

Tvs 瞬态抑制二极管 (1)

SMBJ5.0CA

-- SMBJ5.0CA, bidirectional TVS diode, VR=5.0V, VBR≈5.56–6.14V, VC≈9.2V, 600W.

Zd 稳压二极管 (1)

Tvs 瞬态抑制二极管 (2)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection

Sbr 肖特基二极管 (1)

Tvs 瞬态抑制二极管 (1)

SMF3.3CA

-- Bidirectional TVS diode suppressing transient surges on 3.3V power and signal lines.

Esd 静电保护元件 (1)

Tvs 瞬态抑制二极管 (1)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

Tvs 瞬态抑制二极管 (2)

SMBJ15CA

-- SMBJ15CA, bidirectional TVS diode, VR=15V, VBR≈16.7–18.5V, VC≈24.4V, 600W.

ESDLC5V0D8B

-- DFN1006 bidirectional TVS diode rated at 5V for single data line protection
